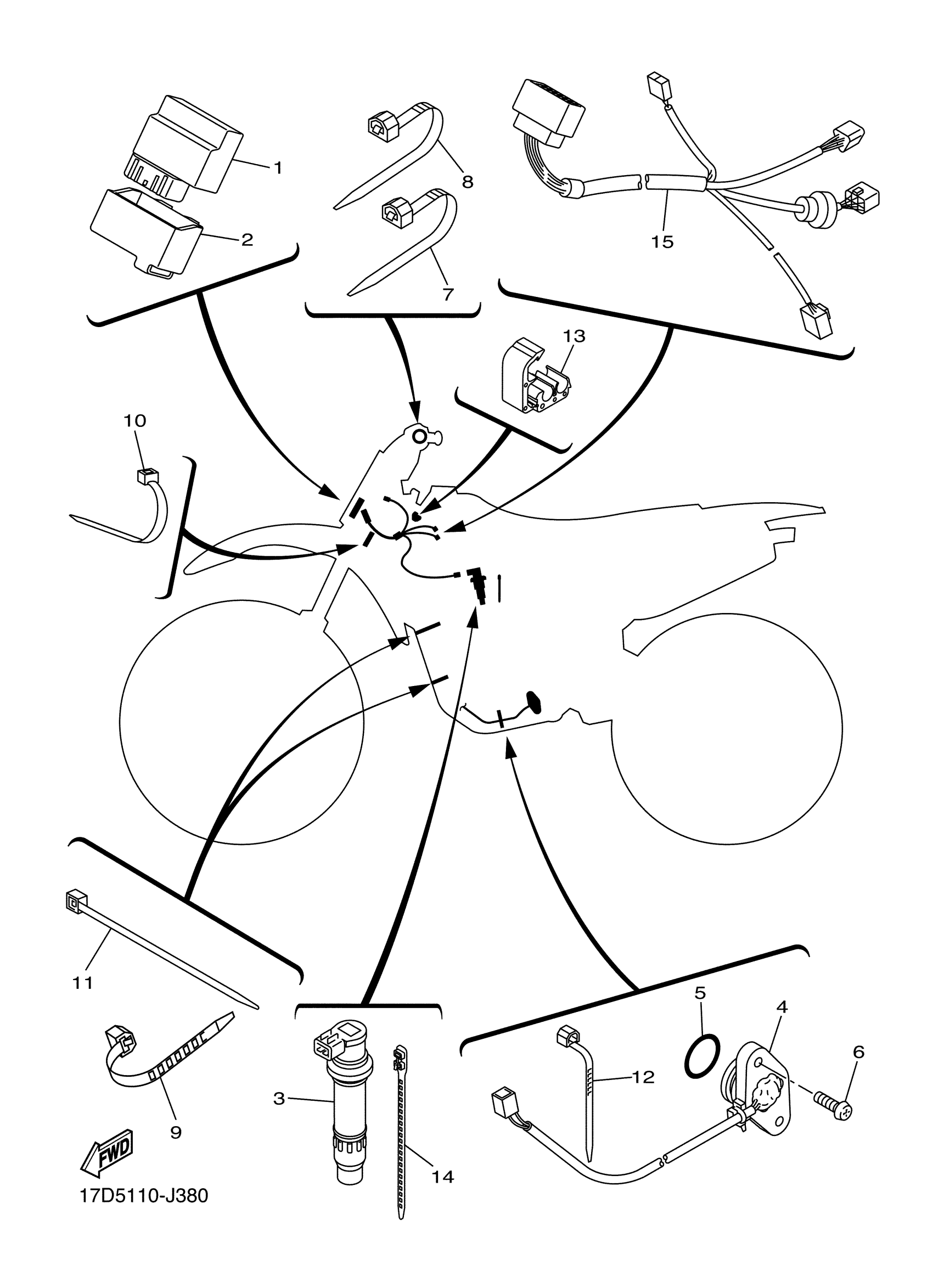

Yamaha YZ250FBW (YZ250FB) 17D90 2012 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

17D-85540-90-00

Unavailable

2

BAND

17D-85546-50-00

$18.49

3

IGNITION COIL ASSY

5UL-82310-20-00

$162.99

4

NEUTRAL SWITCH ASSY

17D-82540-01-00

Unavailable

5

O-RING

93210-21001-00

$5.60

6

SCREW, BIND

98902-05014-00

$1.71

7

CLAMP

90464-13077-00

$8.49

8

CLAMP(4FM)

90464-15195-00

$4.41

9

CLAMP(4FM)

90464-15195-00

$4.41

10

CLAMP

90464-16019-00

Unavailable

11

CLAMP

90464-13077-00

$8.49

12

CLAMP

5Y9-12491-00-00

$6.99

13

CLAMP

90464-06004-00

Unavailable

14

CLAMP

90464-45001-00

$7.49

15

WIRE, SUB LEAD

17D-82509-50-00

Unavailable
