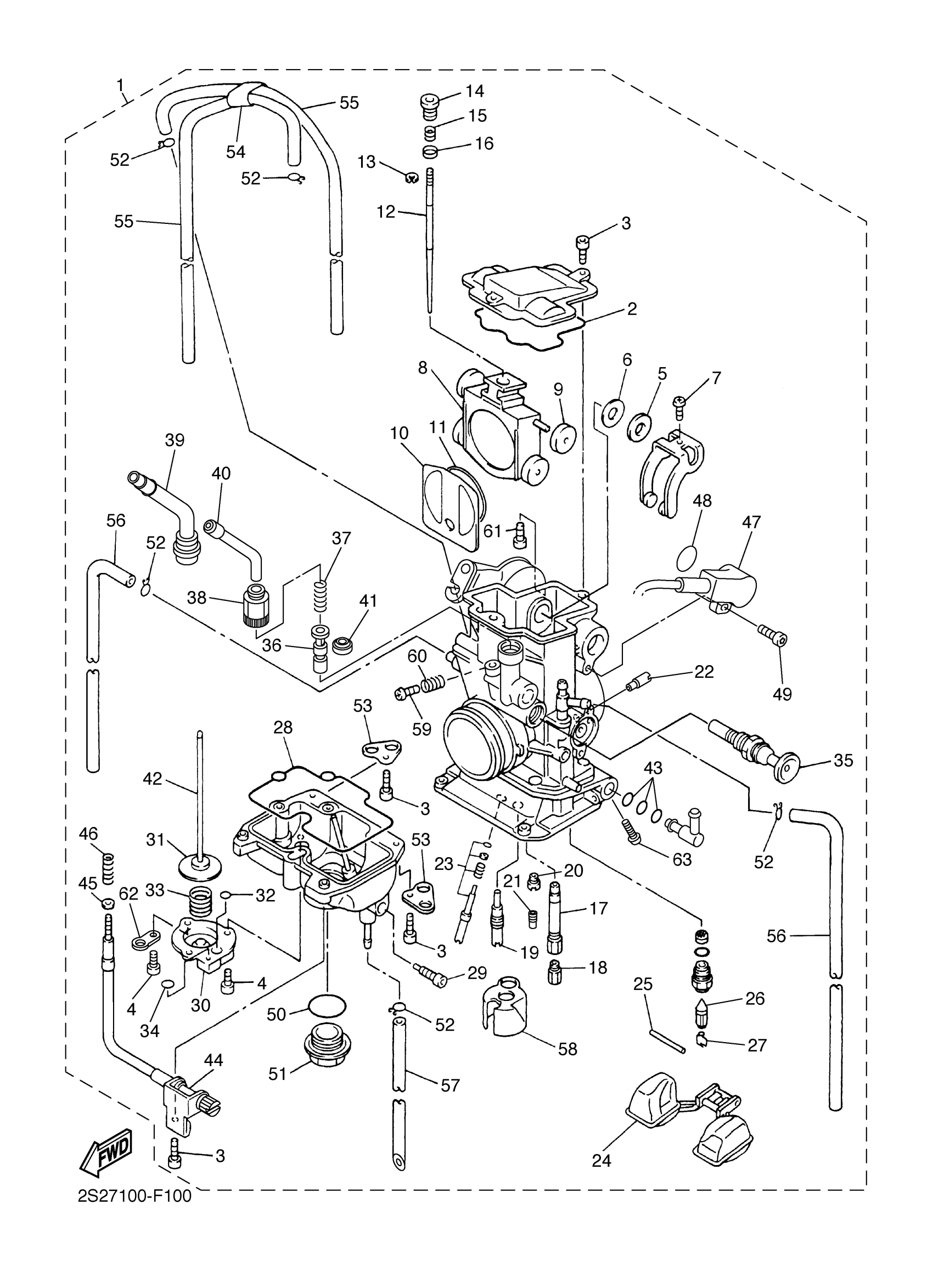

Yamaha YZ250FBW (YZ250FB) 17D90 2012 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
17D-14101-94-00
Unavailable
8
VALVE, VACUUM CONTROL
2S2-14388-00-00
Unavailable
12
NEEDLE
5TA-14916-LN-00
Unavailable
12
NEEDLE
5TA-14916-LP-00
Unavailable
12
NEEDLE
5TA-14916-LS-00
Unavailable
12
NEEDLE
5TA-14916-LT-00
Unavailable
12
NEEDLE
5TA-14916-LU-00
Unavailable
12
NEEDLE
5TA-14916-P1-00
Unavailable
12
NEEDLE
5TA-14916-PN-00
Unavailable
12
NEEDLE
5TA-14916-PP-00
Unavailable
12
NEEDLE
5TA-14916-PR-00
Unavailable
12
NEEDLE
5TA-14916-PS-00
Unavailable
12
NEEDLE
5TA-14916-PT-00
Unavailable
12
NEEDLE
5TA-14916-PU-00
Unavailable
13
CLIP
3TJ-14159-40-00
Unavailable
14
SCREW, ADJUST
5JG-14521-00-00
Unavailable
15
SPRING
5JG-14275-00-00
Unavailable
16
COLLAR
5JG-14264-00-00
Unavailable
17
JET, NEEDLE
17D-14947-00-00
Unavailable
18
JET, MAIN (#175)
4MX-14943-42-00
Unavailable
18
JET, MAIN (#180)
4MX-14943-43-00
Unavailable
18
JET, MAIN (#185)
4MX-14943-44-00
Unavailable
18
JET, MAIN (#190)
4MX-14943-45-00
Unavailable
18
JET, MAIN (#195)
4MX-14943-46-00
Unavailable
18
JET, MAIN (#178)
4MX-14943-93-00
Unavailable
18
JET, MAIN (#182)
4MX-14943-94-00
Unavailable
18
JET, MAIN (#188)
4MX-14943-95-00
Unavailable
18
JET, MAIN (#192)
4MX-14943-96-00
Unavailable
19
JET (#38)
17D-14948-02-00
Unavailable
19
JET, SLOW (#35)
4MX-14948-01-00
Unavailable
19
JET, SLOW (#38)
4MX-14948-02-00
Unavailable
19
JET (#40)
4MX-14948-03-00
Unavailable
19
JET, PILOT (#42)
4MX-14948-04-00
Unavailable
20
JET
3TJ-1494F-13-00
Unavailable
20
JET
3TJ-1494F-14-00
Unavailable
20
JET
3TJ-1494F-15-00
Unavailable
20
JET
3TJ-1494F-16-00
Unavailable
20
JET
3TJ-1494F-17-00
Unavailable
20
JET (#78)
3TJ-1494F-18-00
Unavailable
20
JET (#80)
3TJ-1494F-19-00
Unavailable
21
JET (#65)
4JT-1494F-13-00
Unavailable
21
JET(#75)
4JT-1494F-17-00
Unavailable
21
JET(#85)
4JT-1494F-21-00
Unavailable
21
JET(#95)
4JT-1494F-25-00
Unavailable
21
JET (#105)
4JT-1494F-28-00
Unavailable
21
JET(#115)
4JT-1494F-30-00
Unavailable
21
JET(#125)
4JT-1494F-32-00
Unavailable
22
JET,SAJ (#100)
5TA-14943-27-00
Unavailable
23
PILOT SCREW SET
5NL-14105-00-00
Unavailable
24
FLOAT
17D-14985-00-00
Unavailable
25
. PIN, FLOAT ARM
663-14548-00-00
Unavailable
26
VALVE, NEEDLE
4MX-14392-00-00
Unavailable
27
CLIP
633-14159-00-00
Unavailable
28
GASKET, FLOAT CHAMBER
5JG-14984-00-00
Unavailable
29
PLUG, DRAIN
3TJ-14191-40-00
Unavailable
30
COVER 1
3TJ-14293-40-00
Unavailable
31
DIAPHRAGM ASSY
5JG-14940-16-00
Unavailable
31
DIAPHRAGM ASSY
5JG-14940-17-00
Unavailable
31
DIAPHRAGM ASSY
5JG-14940-18-00
Unavailable
31
DIAPHRAGM ASSY
5JG-14940-76-00
Unavailable
32
GASKET
3TJ-14536-40-00
Unavailable
33
SPRING, DIAPHRAGM
3TJ-14933-40-00
Unavailable
34
. O-RING
6H4-14561-00-00
Unavailable
35
PLUNGER, STARTER
5XC-14171-00-00
Unavailable
36
PLUNGER, STARTER
5TA-14371-00-00
Unavailable
37
SPRING, PLUNGER
5TA-14335-00-00
Unavailable
38
SCREW
5TA-14991-00-00
Unavailable
39
CAP, PLUNGER
2S2-14374-00-00
Unavailable
40
GUIDE, CABLE
5TA-14155-00-00
Unavailable
41
SEAL
5TA-14997-00-00
Unavailable
42
ROD, STARTER
5JG-14379-00-00
Unavailable
43
O-RING
3TJ-14564-40-00
Unavailable
44
SCREW, THROTTLE
5XC-14922-00-00
Unavailable
45
WASHER, PLATE(3TJ)
90201-08410-00
Unavailable
46
SPRING, THROTTLE STOP
5TA-14934-00-00
Unavailable
47
THROTTLE SENSOR ASSY
17D-85885-01-00
Unavailable
48
O-RING
33D-14562-00-00
Unavailable
49
SCREW
1DX-14216-00-00
Unavailable
50
O-RING
4MX-14561-00-00
Unavailable
51
PLUG, SCREW
4MX-14115-00-00
Unavailable
52
CLIP
3TJ-14137-40-00
Unavailable
53
PLATE
5BE-14146-00-00
Unavailable
54
HOLDER
5TA-14261-00-00
Unavailable
55
PIPE
5UL-14196-00-00
Unavailable
56
PIPE
5TA-14197-00-00
Unavailable
57
HOSE
5TJ-14987-00-00
Unavailable
58
PLATE
5JG-14346-00-00
Unavailable
59
SCREW
5JG-14565-00-00
Unavailable
60
SPRING, ADJUST SCREW
5JG-14531-00-00
Unavailable
61
SCREW
5NL-14591-09-00
Unavailable
62
. PLATE
5PA-14146-00-00
Unavailable
63
SCREW, PAN HEAD
5XD-14325-09-00
Unavailable
