- YZ250FAL (YZ250F) 17DD0 2011
SIDE COVER OIL TANK

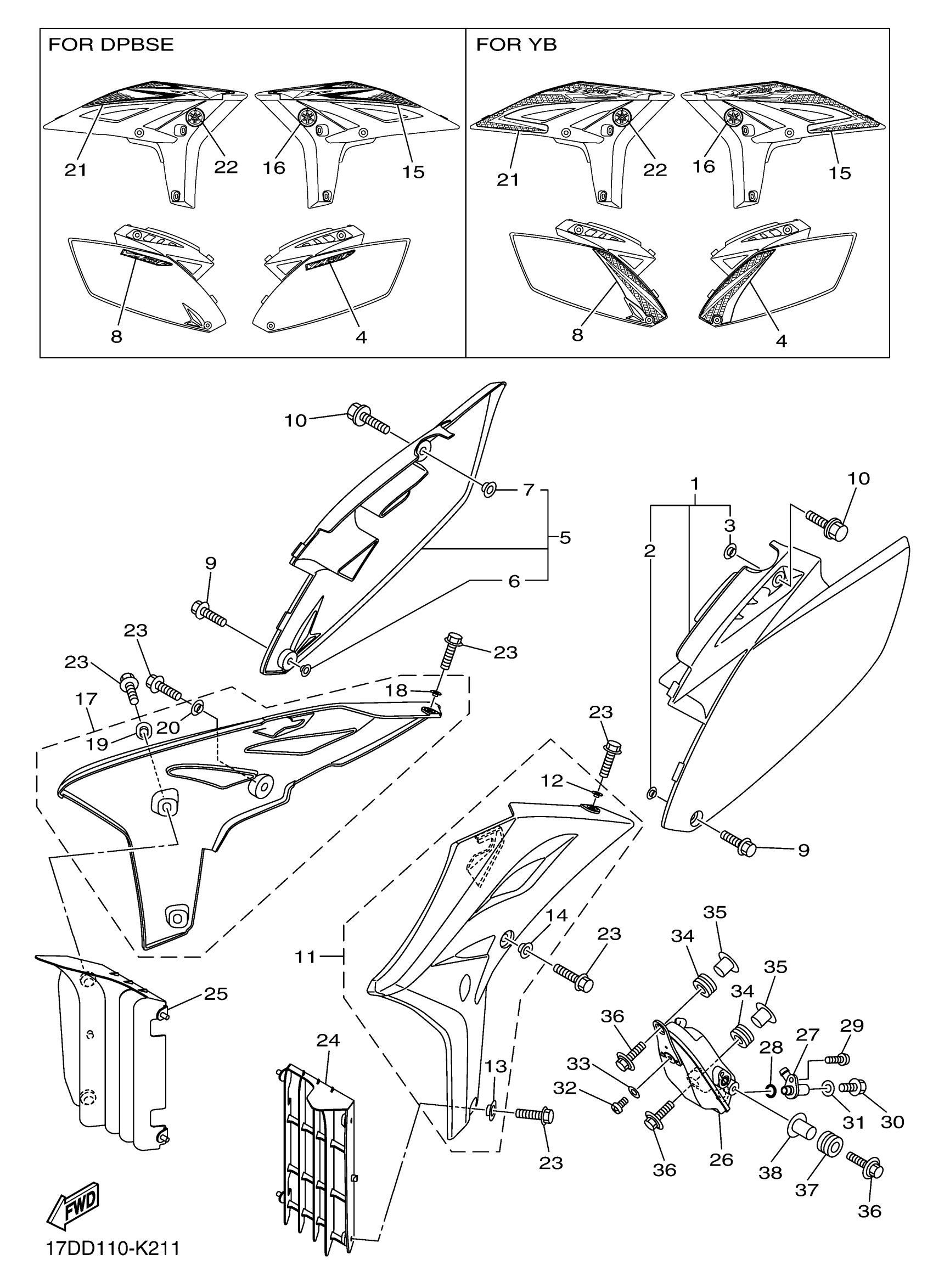

Yamaha YZ250FAL (YZ250F) 17DD0 2011 SIDE COVER OIL TANK Diagram
#
Description
Price
1
SIDE COVER ASSY 1
17D-21710-00-00
Unavailable
4
GRAPHIC, 1
17D-2173E-10-00
Unavailable
5
SIDE COVER ASSY 2
17D-21720-00-00
Unavailable
8
GRAPHIC, 2
17D-2173F-10-00
Unavailable
15
GRAPHIC, 3 (YAMAHA BLACK)
17D-2174G-20-00
Unavailable
16
TUNING FORK MARK
5FK-2175C-01-00
Unavailable
17
SIDE COVER ASSY 4
17D-21740-E0-00
Unavailable
21
GRAPHIC, 4
17D-2174H-20-00
Unavailable
22
TUNING FORK MARK
5FK-2175C-01-00
Unavailable
23
BOLT, FLANGE
90105-06064-00
Unavailable
24
PANEL 1
17D-2172A-00-00
Unavailable
25
PANEL 1
17D-2172A-10-00
Unavailable
26
TANK, OIL
17D-21751-00-00
Unavailable
27
PIPE, OIL 1
17D-13416-00-00
Unavailable
28
O-RING (2H9)
93210-14369-00
Unavailable
29
BOLT, BUTTON HEAD
92012-06016-00
Unavailable
30
BOLT, FLANGE
90105-08151-00
Unavailable
31
WASHER, PLATE (4L0)
90201-082A6-00
Unavailable
32
SCREW, BIND(J45)
98980-06012-00
Unavailable
33
WASHER, PLATE (1L9)
90201-06630-00
Unavailable
34
GROMMET (4N0)
90480-10289-00
Unavailable
35
COLLAR
90387-06150-00
Unavailable
36
BOLT, WITH WASHER
90119-06255-00
Unavailable
37
GROMMET(1JK)
90480-14433-00
Unavailable
38
COLLAR
90387-06161-00
Unavailable
