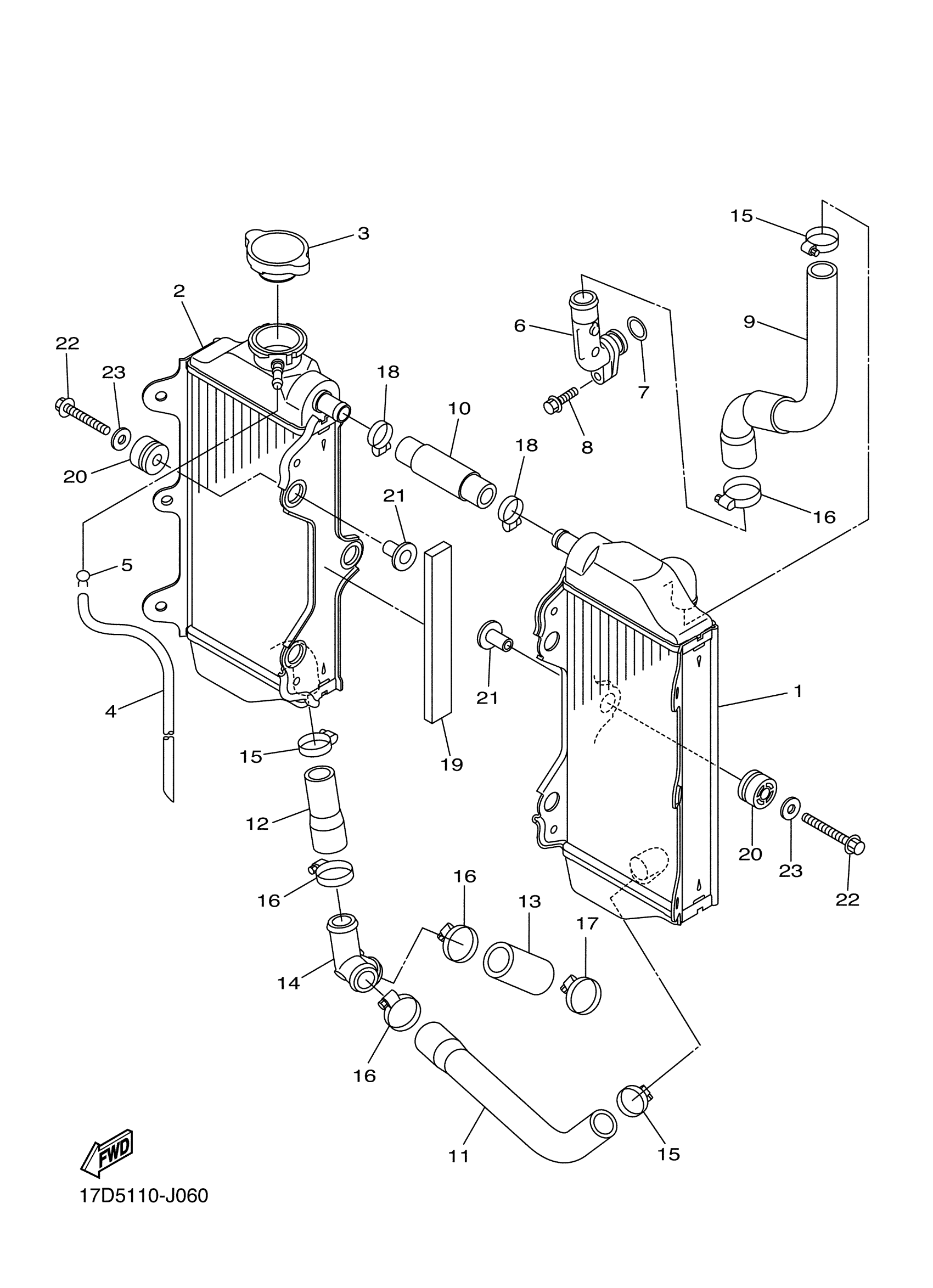

Yamaha YZ250FAL (YZ250F) 17DD0 2011 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

17D-1240A-50-00

Unavailable

2

RADIATOR ASSY

17D-12461-50-00

Unavailable

3

CAP, RADIATOR

5SL-12462-01-00

$29.99

4

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

5

CLIP

90467-090A2-00

$4.41

6

PIPE 1

5XC-12481-G0-00

Unavailable

7

. O-RING

93210-16275-00

Unavailable

8

BOLT,SOCKET HEAD

91314-06020-00

$1.49

9

HOSE 1

17D-12576-50-00

Unavailable

10

HOSE 2

17D-12577-50-00

$14.49

11

HOSE 3

17D-12578-50-00

Unavailable

12

HOSE 4

17D-12579-50-00

Unavailable

13

HOSE 5

17D-12588-50-00

Unavailable

14

JOINT, HOSE 1

17D-12581-50-00

Unavailable

15

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

16

HOSE CLAMP ASSY

90450-28001-00

Unavailable

17

HOSE CLAMP ASSY

90450-32003-00

Unavailable

18

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

19

DAMPER, LOCATING 1

4KB-24181-00-00

Unavailable

20

GROMMET

90480-15012-00

Unavailable

21

COLLAR

90387-06065-00

Unavailable

22

BOLT, FLANGE

90105-06111-00

Unavailable

23

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable
