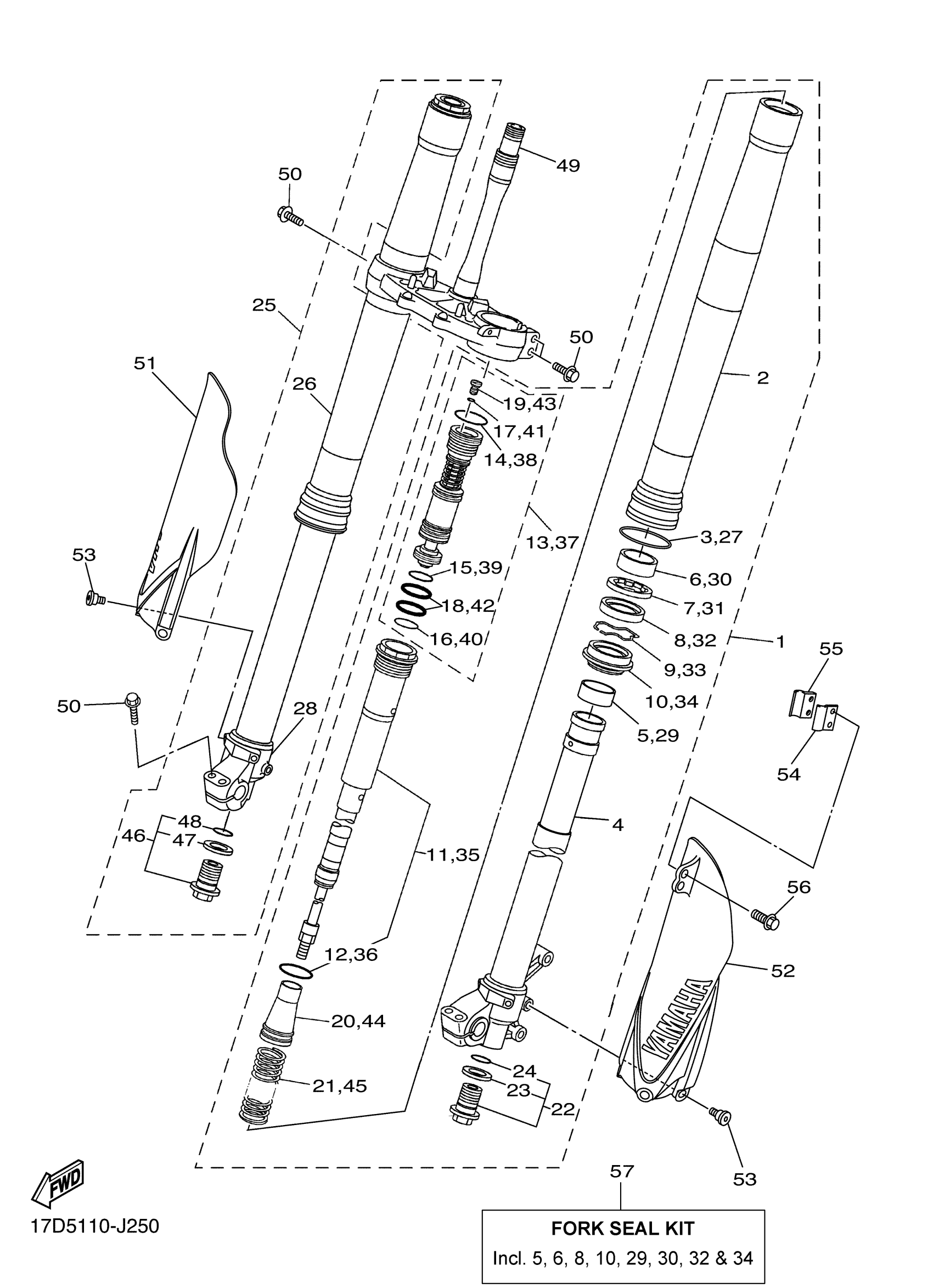

Yamaha YZ250FAL (YZ250F) 17DD0 2011 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
17D-23102-00-00
Unavailable
2
TUBE, OUTER (RIGHT)
17D-23136-00-00
Unavailable
11
CYLINDER COMP., FRONT FORK
17D-23170-00-00
Unavailable
13
VALVE COMP.
17D-2316A-00-00
Unavailable
16
O-RING
1C3-23188-P0-00
Unavailable
17
O-RING
1C3-23188-R1-00
Unavailable
18
O-RING
1W4-23114-L0-00
Unavailable
19
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
20
SEAT, SPRING UPPER
1C3-23142-L0-00
Unavailable
21
SPRING, FRONT FORK(K=4.4N/MM)
1C3-23141-F1-00
Unavailable
22
BOLT, CAP
5XC-23111-01-00
Unavailable
23
GASKET
2HH-23158-L0-00
Unavailable
24
GASKET
276-23114-01-00
Unavailable
25
FRONT FORK ASSY (R.H)
17D-23103-00-00
Unavailable
26
TUBE, OUTER (RIGHT)
17D-23136-00-00
Unavailable
28
INNER TUBE COMP.1
17D-23110-00-00
Unavailable
35
CYLINDER COMP., FRONT FORK
17D-23170-00-00
Unavailable
37
VALVE COMP.
17D-2316A-00-00
Unavailable
40
O-RING
1C3-23188-P0-00
Unavailable
41
O-RING
1C3-23188-R1-00
Unavailable
42
O-RING
1W4-23114-L0-00
Unavailable
43
AIR VALVE COMP.
1C3-23190-L1-00
Unavailable
44
SEAT, SPRING UPPER
1C3-23142-L0-00
Unavailable
45
SPRING, FRONT FORK(K=4.4N/MM)
1C3-23141-F1-00
Unavailable
46
BOLT, CAP
5XC-23111-01-00
Unavailable
47
GASKET
2HH-23158-L0-00
Unavailable
48
GASKET
276-23114-01-00
Unavailable
49
UNDER BRACKET COMP.
17D-23340-50-00
Unavailable
50
BOLT, FLANGE
90105-08154-00
Unavailable
51
PROTECTOR 2
17D-2315J-50-00
Unavailable
52
PROTECTOR 1
17D-2315H-50-00
Unavailable
53
BOLT
90109-06232-00
Unavailable
54
CLAMP
17D-23466-00-00
Unavailable
55
CLAMP
17D-23467-00-00
Unavailable
56
BOLT, FLANGE
90105-06170-00
Unavailable
57
FORK SEAL KIT (TWO FORKS)
17D-W003B-00-00
Unavailable
