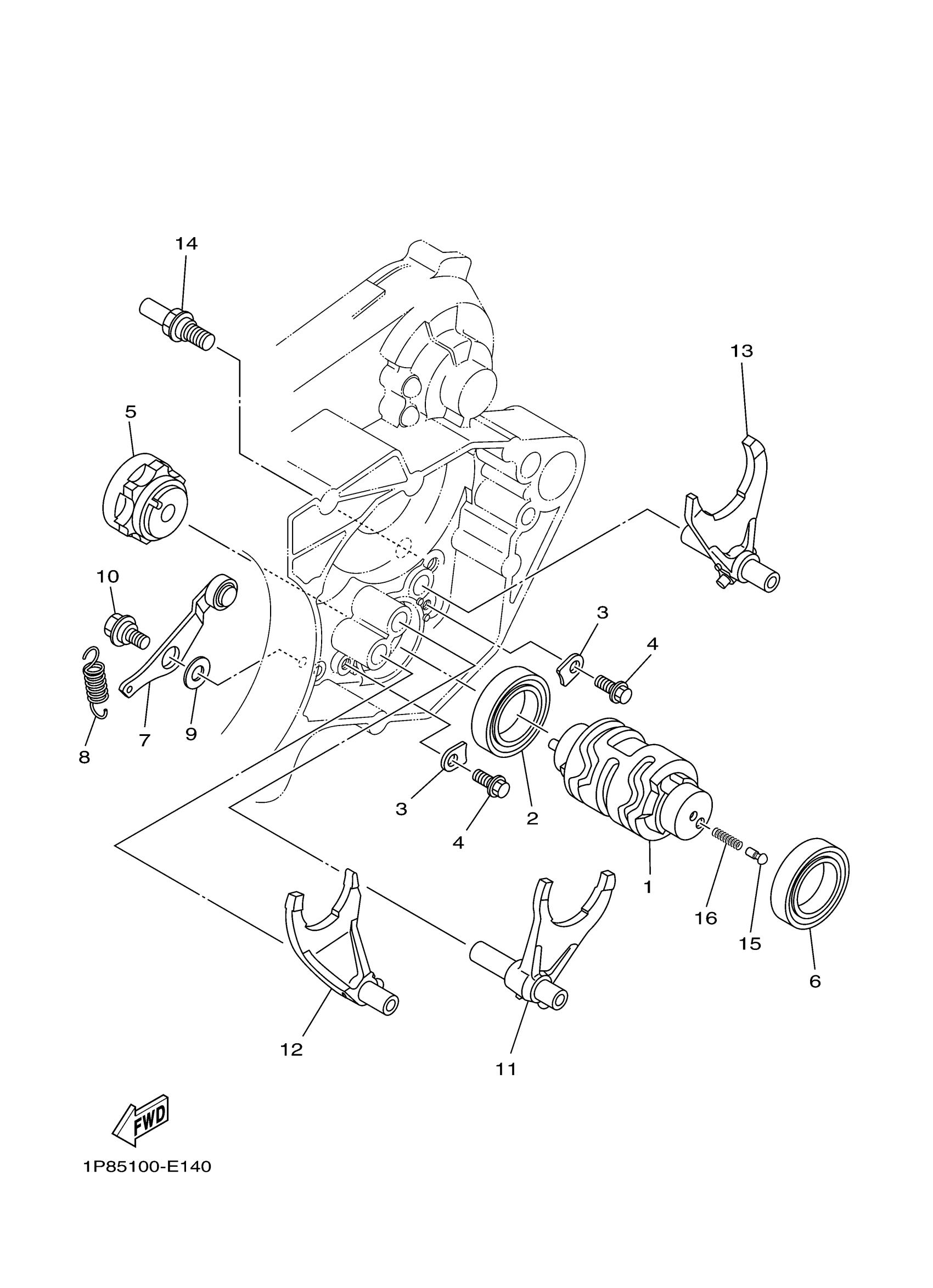

Yamaha YZ250F2 (YZ250) 1SSD 2015 SHIFT CAM FORK Diagram

Description

Price

CAM, SHIFT

1P8-18541-00-00

$94.99

BEARING

93306-90506-00

$41.99

PLATE, STOPPER 2

5DH-18562-00-00

Unavailable

BOLT, FLANGE

95022-06012-00

$3.29

SEGMENT

4EW-18185-00-00

$109.99

BEARING (5K5)

93306-90501-00

$41.99

STOPPER LEVER ASSY

5CU-18140-01-00

$64.99

SPRING, TENSION(4NK)

90507-14064-00

$8.49

WASHER, PLATE

90201-06013-00

Unavailable

BOLT

90109-06201-00

$5.60

FORK, SHIFT 1

5BE-18501-20-00

$123.99

FORK, SHIFT 2

5BE-18502-20-00

$138.99

FORK, SHIFT 3

5CU-18503-20-00

$86.99

BOLT

90109-08227-00

$7.49

POINT, NEUTRAL

4UN-18542-00-00

$8.99

SPRING COMPRESSION278185450000

90501-06022-00

Unavailable
