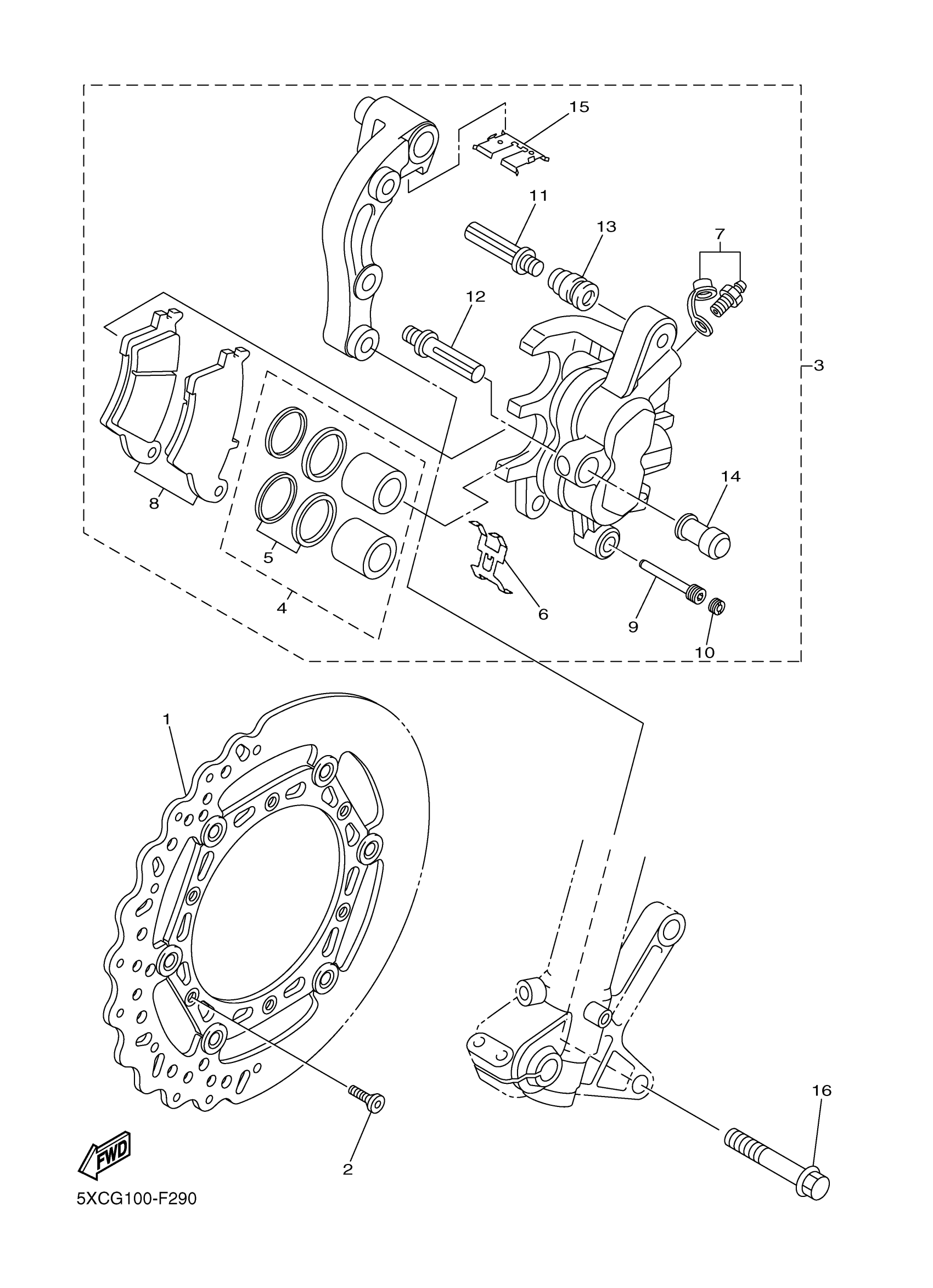

Yamaha YZ250F2 (YZ250) 1SSD 2015 FRONT BRAKE CALIPER Diagram

Description

Price

DISK BRAKE ASSY

5XC-2581T-G0-00

$267.65

SCREW, COUNTERSUNK

90151-06079-00

$2.49

CALIPER ASSY (LEFT)

5XC-2580T-G0-00

Unavailable

PISTON ASSY, CALIP

5XC-25802-00-00

$86.16

CALIPER SEAL KIT

5KM-25803-10-00

$17.07

SUPPORT, PAD

5DH-25919-00-00

$16.55

BLEED SCREW KIT

36Y-W0048-00-00

$8.13

BRAKE PAD KIT

5XC-W0045-00-00

$37.99

PIN, PAD

5DH-25933-00-00

$16.24

PLUG

5DH-25916-00-00

$6.94

BOLT

3SP-25926-51-00

$11.01

BOLT

3SP-25914-51-00

$3.76

BOOT, CALIPER

3JD-25917-00-00

$7.21

BOOT 2

1UY-25937-51-00

$11.73

RETAINER, CALIPER

5XC-25849-G0-00

$10.24

BOLT, FLANGE

90105-08137-00

Unavailable
