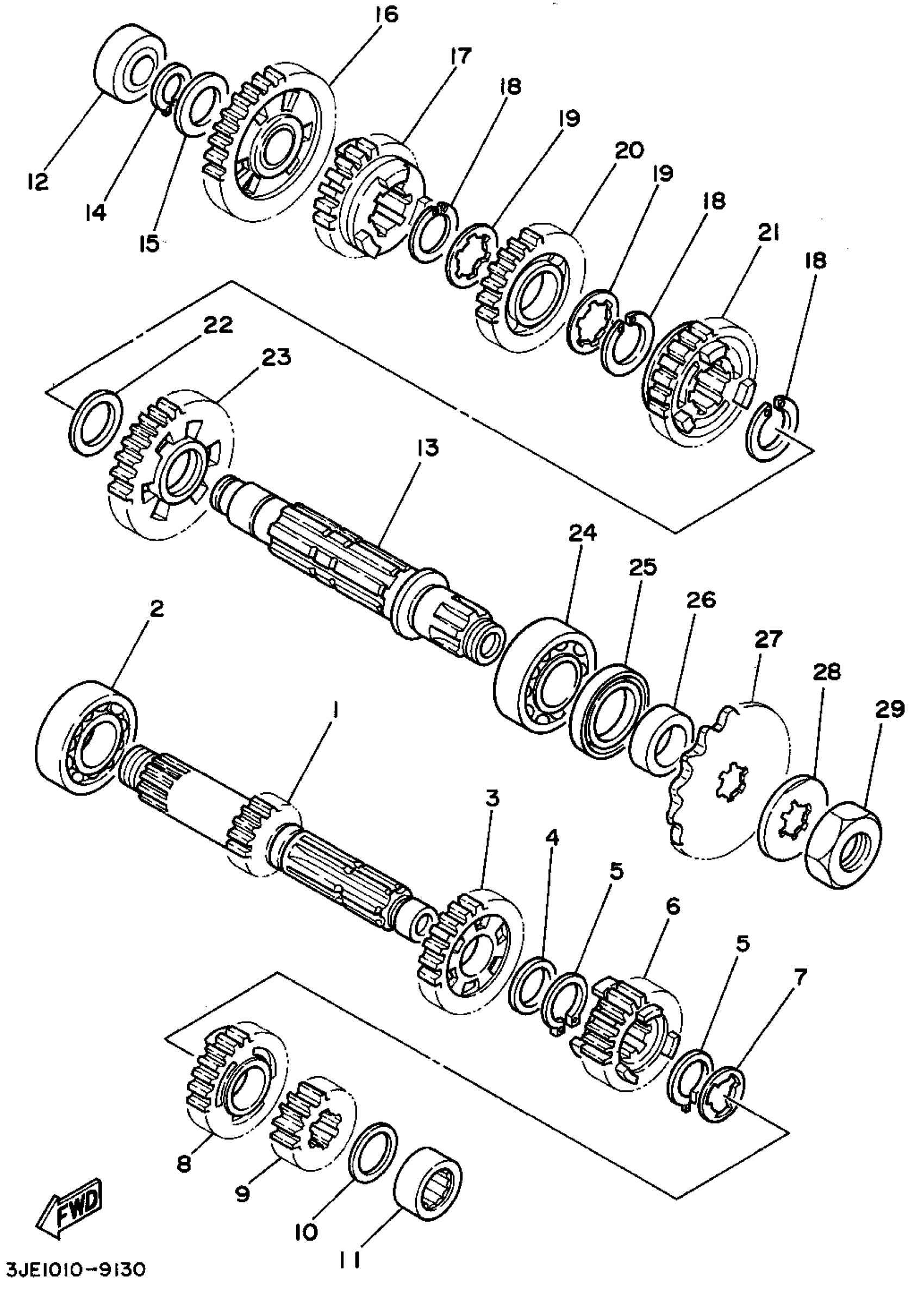

Yamaha YZ250F1 (YZ250F1) 1994 TRANSMISSION Diagram

AXLE, MAIN

4JX-17411-00-00

Unavailable

BEARING (3R5)

93306-20540-00

$57.99

GEAR, 5TH PINION (21T)

4JX-17151-00-00

Unavailable

WASHER, PLATE (537)

90201-22555-00

$8.49

CIRCLIP (537)

93410-22039-00

$8.49

GEAR, 3RD PINION (18T)

4JX-17131-00-00

Unavailable

WASHER (537)

90209-18135-00

$9.49

GEAR, 4TH PINION (22T)

3RB-17141-00-00

Unavailable

GEAR, 2ND PINION

4JX-17121-00-00

Unavailable

WASHER(2HH)

90209-17311-00

$3.98

BRG,CYL-CAL ROLLER 41.5G KY

93311-41734-00

$73.99

BEARING (2X7)

93311-62035-00

$57.99

AXLE, DRIVE

2VM-17421-01-00

Unavailable

CIRCLIP (525)

93410-20038-00

$3.76

WASHER PLATE 168171160000

90201-20278-00

$10.49

GEAR,1ST WHEEL

4MX-17211-00-00

Unavailable

GEAR, 5TH WHEEL (20T)

4JX-17251-00-00

Unavailable

CIRCLIP (4L0)

93440-25084-00

Unavailable

WASHER 434172160000

90209-22082-00

Unavailable

GEAR, 3RD WHEEL (23T)

4JX-17231-00-00

Unavailable

GEAR, 4TH WHEEL (24T)

3RB-17241-00-00

Unavailable

WASHER, PLATE(59W)

90201-253K0-00

Unavailable

GEAR, 2ND WHEEL (25T)

4JX-17221-00-00

Unavailable

BEARING(43G)

93306-20562-00

Unavailable

OIL SEAL (697)

93102-32M07-00

Unavailable

COLLAR (2K7)

90387-25663-00

Unavailable

SPROCKET, DRIVE (13T)(4RF)

93834-13206-00

Unavailable

SPROCKET, DRIVE

93834-14050-00

Unavailable

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

Unavailable

WASHER, LOCK (23X)

90215-21239-00

Unavailable

NUT (2K7)

90179-20255-00

Unavailable
