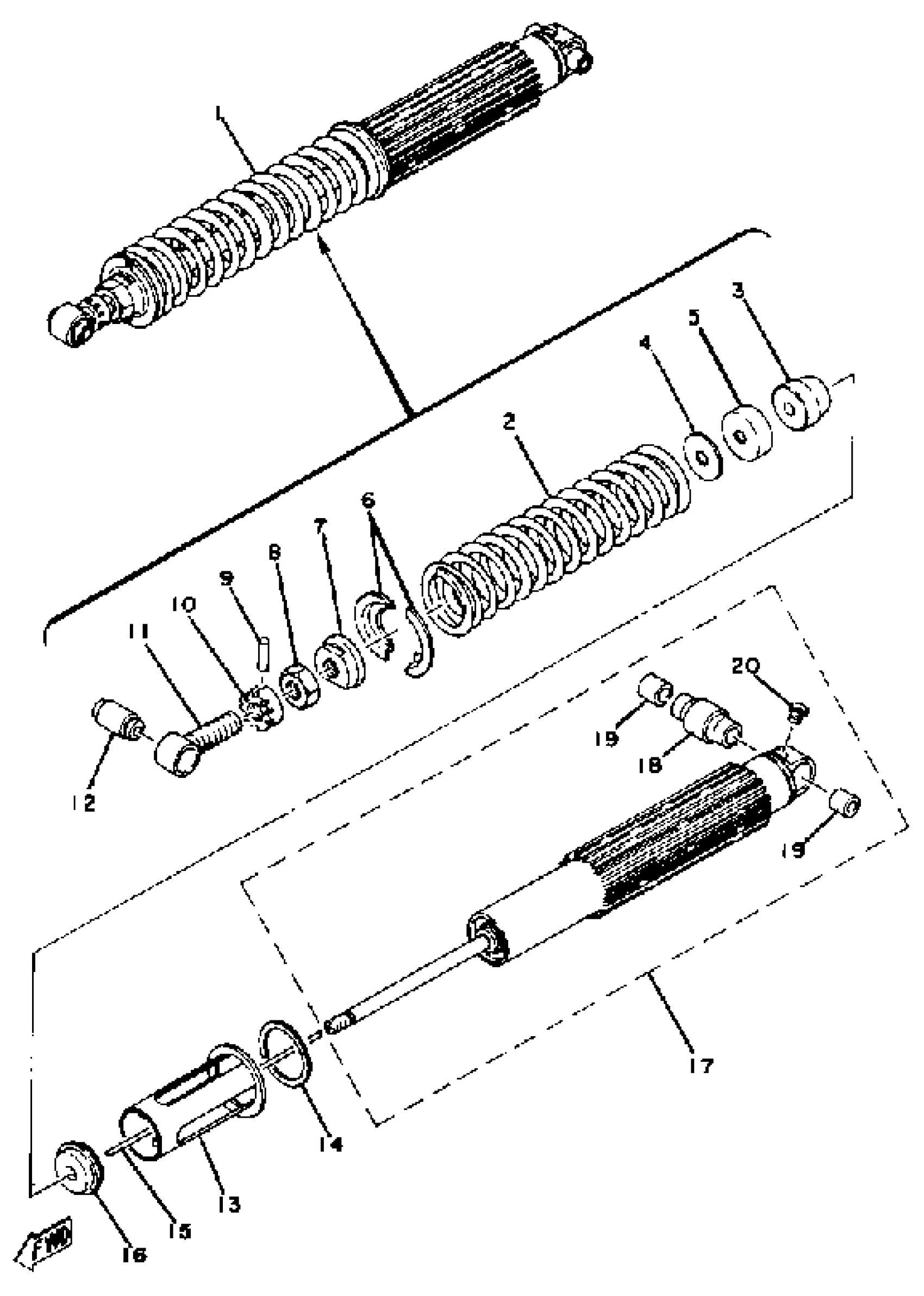

Yamaha YZ250F (YZ250F) 1979 REAR CUSHION Diagram

#

Description
Price

1

SHK/ABS ASSEMBLY, REAR

(2X4-22210-00-00)

Unavailable

2

. SPRING, COMPRESSION (K=503 KG/MM)

90501-99479-00

Unavailable

2

SPRING, COMPRESSION

(90501-99480-00)

Unavailable

2

SPRING, COMPRESSION

(90501-99481-00)

Unavailable

3

BUMP, STOP

(2X4-22493-00-00)

Unavailable

4

SUPPORT, BUMP STOP

(2X4-22228-00-00)

Unavailable

5

COVER

(2X4-22221-00-00)

Unavailable

6

. GUIDE, SPRING 1

2K6-22214-00-00

Unavailable

7

SEAT, SPRING UPPER

(2K6-22213-00-00)

Unavailable

8

NUT, HEXAGON (29L)

90170-20320-00

$15.99

9

. PIN, DOWEL

93604-26132-00

Unavailable

10

NUT, ADJUSTING

(1W1-22497-00-00)

Unavailable

11

BRACKET, UPPER

(2X4-22219-00-00)

Unavailable

12

BUSH, REAR SHOCK ABSORBER

1YW-22216-00-00

Unavailable

13

GUIDE, SPRING 2

(2X4-22224-00-00)

Unavailable

14

SEAT, SPRING LOWER

(2X4-22223-00-00)

Unavailable

15

ROD, PUSH

(2X4-22489-00-00)

Unavailable

16

CAP, CASE

(2X4-22472-00-00)

Unavailable

17

DAMPER SUB-ASSEMBLY.

(2X4-22401-00-00)

Unavailable

18

.. BUSH, SHOCK ABS LWR

1W1-22226-00-00

Unavailable

19

BUSH, SOLID (1M1)

90380-12051-00

Unavailable

20

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable
