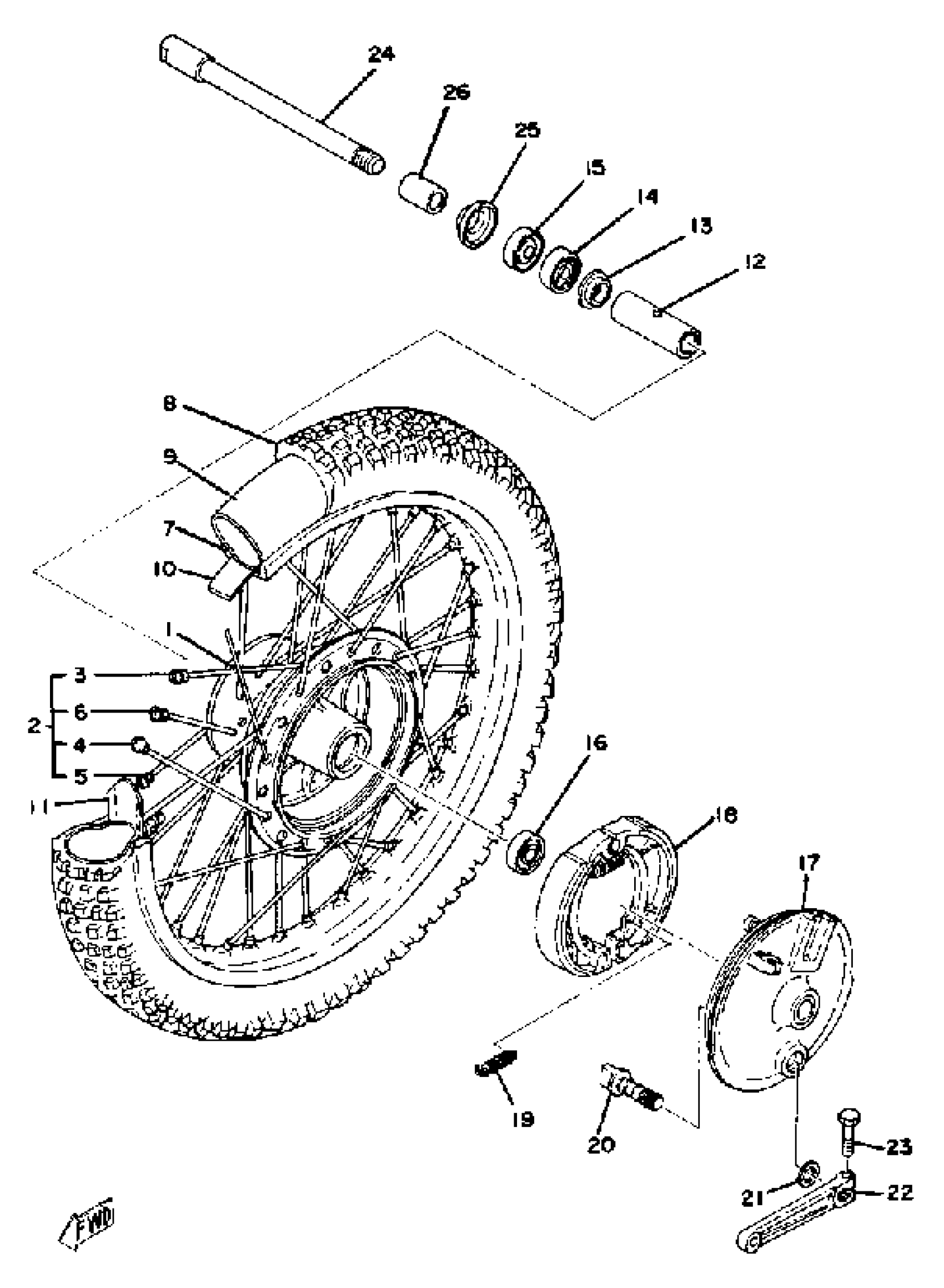

Yamaha YZ250F (YZ250F) 1979 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

1K7-25111-10-98

Unavailable

2

SPOKE SET, FRONT

2W6-25104-02-00

Unavailable

3

SPOKE SET, INNER 1

(2W6-25196-90-00)

Unavailable

4

SPOKE SET, OUTER 1

(2W6-25197-90-00)

Unavailable

5

SPOKE SET, INNER 2

(2W6-25179-90-00)

Unavailable

6

SPOKE SET, OUTER 2

(2W6-25189-90-00)

Unavailable

7

RIM 1.60X21

94416-21326-00

Unavailable

8

300-21 M1B (TT)

(94130-213A4-00)

Unavailable

9

TUBE

94230-21126-00

Unavailable

10

BAND, RIM

(94330-21088-00)

Unavailable

11

SPACER, BEAD

1T1-25194-00-00

Unavailable

12

SPACER

90560-15116-00

Unavailable

13

FLANGE, SPACER

146-25116-00-00

$8.99

14

BEARING

93306-20205-00

$38.99

15

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

16

BEARING(3DL)

93306-20226-00

Unavailable

17

BRAKE SHOE PLT ASSEMBLY (1W1-25121-02-98)

1W1-25016-11-98

Unavailable

18

BRAKE SHOE KIT

322-W253A-10-00

Unavailable

19

SPRING (5T9)

90506-17328-00

Unavailable

20

CAMSHAFT

23X-25151-00-00

Unavailable

21

SEAL, CAMSHAFT

137-25159-00-00

Unavailable

22

LEVER, CAMSHAFT 1

322-25155-00-00

Unavailable

23

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

24

AXLE, WHEEL

509-25181-00-00

Unavailable

25

COVER, HUB DUST

322-25118-00-00

Unavailable

26

COLLAR (34L)

90387-152J3-00

Unavailable
