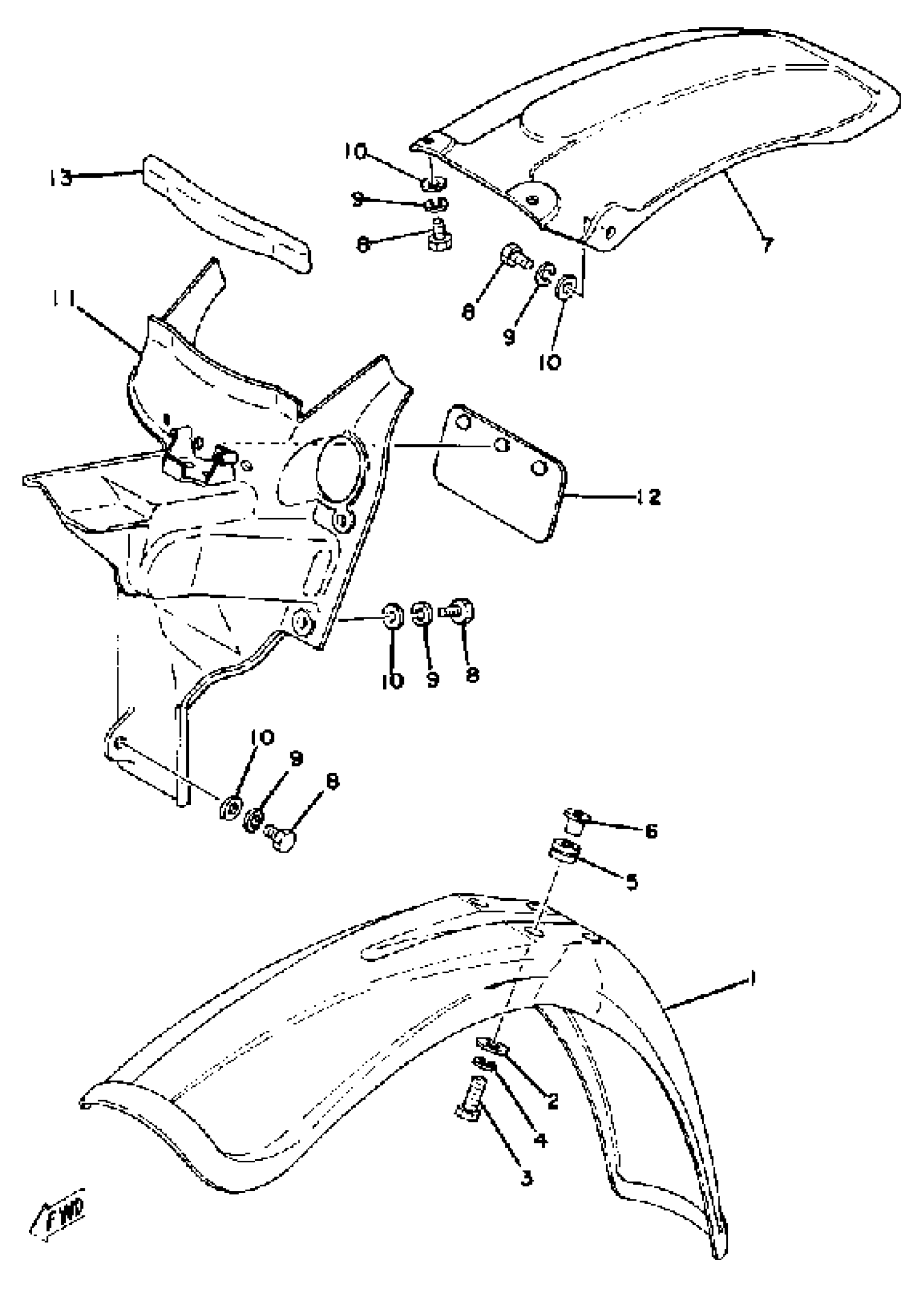

Yamaha YZ250F (YZ250F) 1979 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5X6-21511-01-00

$38.39

2

WASHER, PLATE

90201-06380-00

$0.54

3

BOLT, HEXAGON

97017-06025-00

$2.78

4

WASHER, SPRING

92995-06100-00

$2.95

5

GROMMET

90480-14198-00

$7.10

6

COLLAR 437216330000

90387-07391-00

Unavailable

7

FENDER, REAR (1W4-21611-00)

2K8-21611-00-00

Unavailable

8

BOLT(8CP)

97017-06014-00

$4.91

9

WASHER, SPRING

92995-06100-00

$2.95

10

WASHER, PLATE

90201-06380-00

$0.54

11

GUARD, MUD

(2X4-21620-00-00)

Unavailable

12

FLAP

1M1-21621-00-00

$12.80

13

. DAMPER

565-21746-00-00

Unavailable
