CRANKSHAFT - PISTON

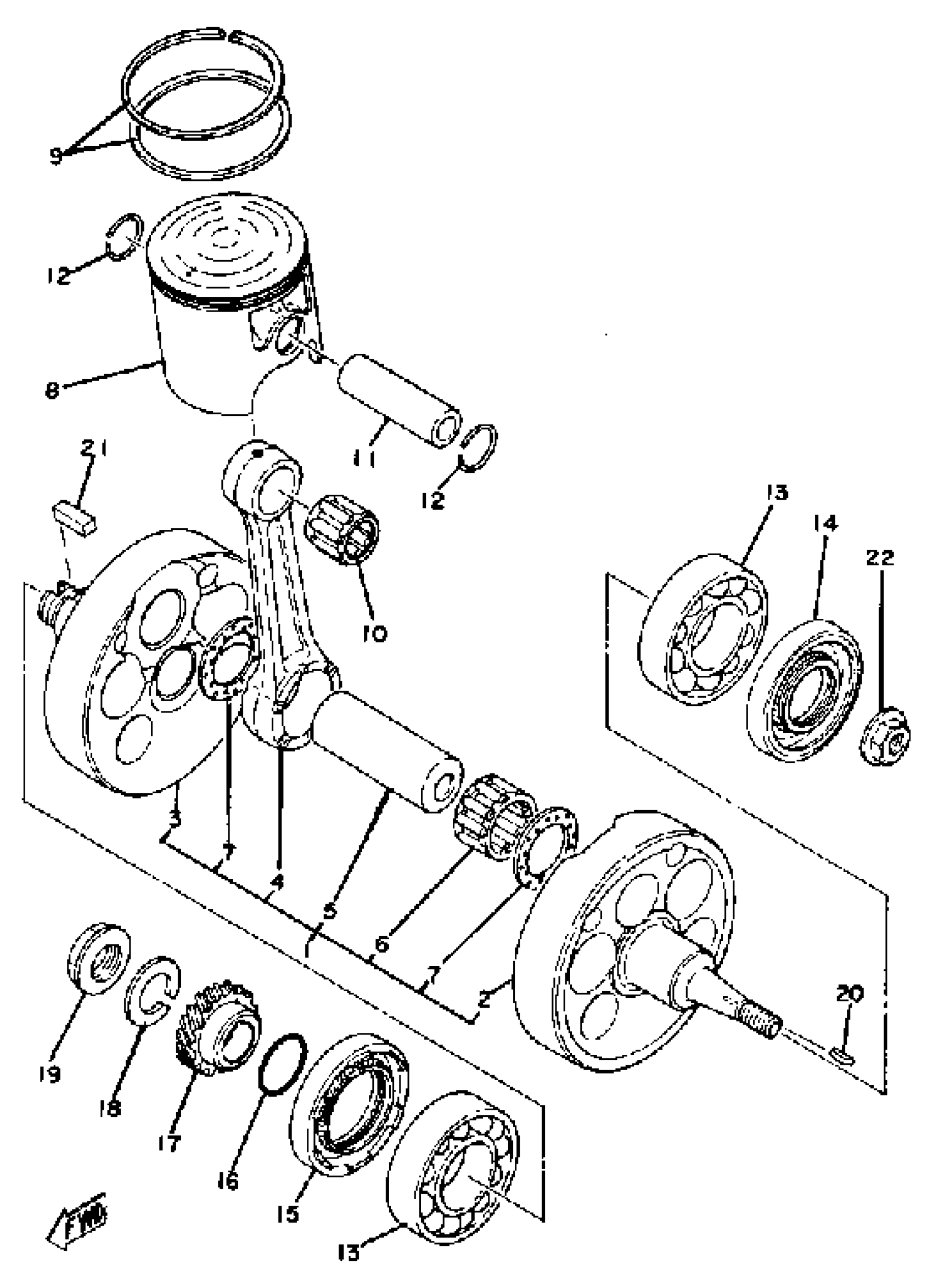

Yamaha YZ250F (YZ250F) 1979 CRANKSHAFT - PISTON Diagram
#
1
CYLINDER 1
2X4-11311-00-00
Unavailable
2
CRANK 1
(2K7-11412-00-00)
Unavailable
3
CRANK 2
(1W3-11422-00-00)
Unavailable
4
.. ROD, CONNECTING
498-11651-00-00
Unavailable
6
BEARING, CYLINDRICAL(4JW)
93310-425P2-00
Unavailable
8
PISTON STD (69.96MM STD)
2K7-11631-01-96
Unavailable
8
PISTON 1 O/S 0.25 (2K7-11635-00) (70.25MM 1ST OS)
2K7-11635-01-00
Unavailable
8
PISTON 2 O/S 0.50 (2K7-11636-00) (70.50MM 2ND OS)
2K7-11636-01-00
Unavailable
8
PISTON 3 O/S 0.75 (2K7-11637-00) (70.75MM 3RD OS)
2K7-11637-01-00
Unavailable
8
PISTON 4 O/S 1.00 (2K7-11638-00) (71.00MM 4TH OS)
2K7-11638-01-00
Unavailable
9
PISTON KIT STD
(2K7-11630-51-00)
Unavailable
9
PISTON KIT 1ST O/S
(2K7-11630-61-00)
Unavailable
9
PISTON KIT 2ND
(2K7-11630-71-00)
Unavailable
9
PISTON KIT 3RD
(2K7-11630-81-00)
Unavailable
9
PISTON KIT 4TH
(2K7-11630-91-00)
Unavailable
9
PISTON RINGSET STD (STD)
2X7-11601-00-00
Unavailable
9
PISTON RINGSET 1ST (1W5-11601-10) (1ST O.S.)
2X7-11601-10-00
Unavailable
9
PISTON RINGSET 2ND (2ND O.S.)
2X7-11601-20-00
Unavailable
9
PISTON RINGSET 3RD (3RD O.S.)
2X7-11601-30-00
Unavailable
9
PISTON RINGSET 4TH (4TH O.S.)
2X7-11601-40-00
Unavailable
10
BRG,CYL-CAL ROLLER 15.6G KY
93310-218A6-00
Unavailable
11
PIN, PISTON
214-11633-00-00
Unavailable
12
CIRCLIP (2F1)
93450-19052-00
Unavailable
13
BEARING (5X5)
93306-20627-00
Unavailable
14
OIL SEAL(38V)
93103-30150-00
Unavailable
15
OIL SEAL (434)
93103-40091-00
Unavailable
16
O-RING (498)
93210-29282-00
Unavailable
17
GEAR, PRI DRIVE
(2K7-16111-00-00)
Unavailable
18
WASHER(N15)
92907-18100-00
Unavailable
19
NUT (498)
90179-18172-00
Unavailable
20
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
21
KEY, STRAIGHT (498)
90282-07019-00
Unavailable
22
NUT, SPECIAL SHAPE
90179-10257-00
Unavailable
