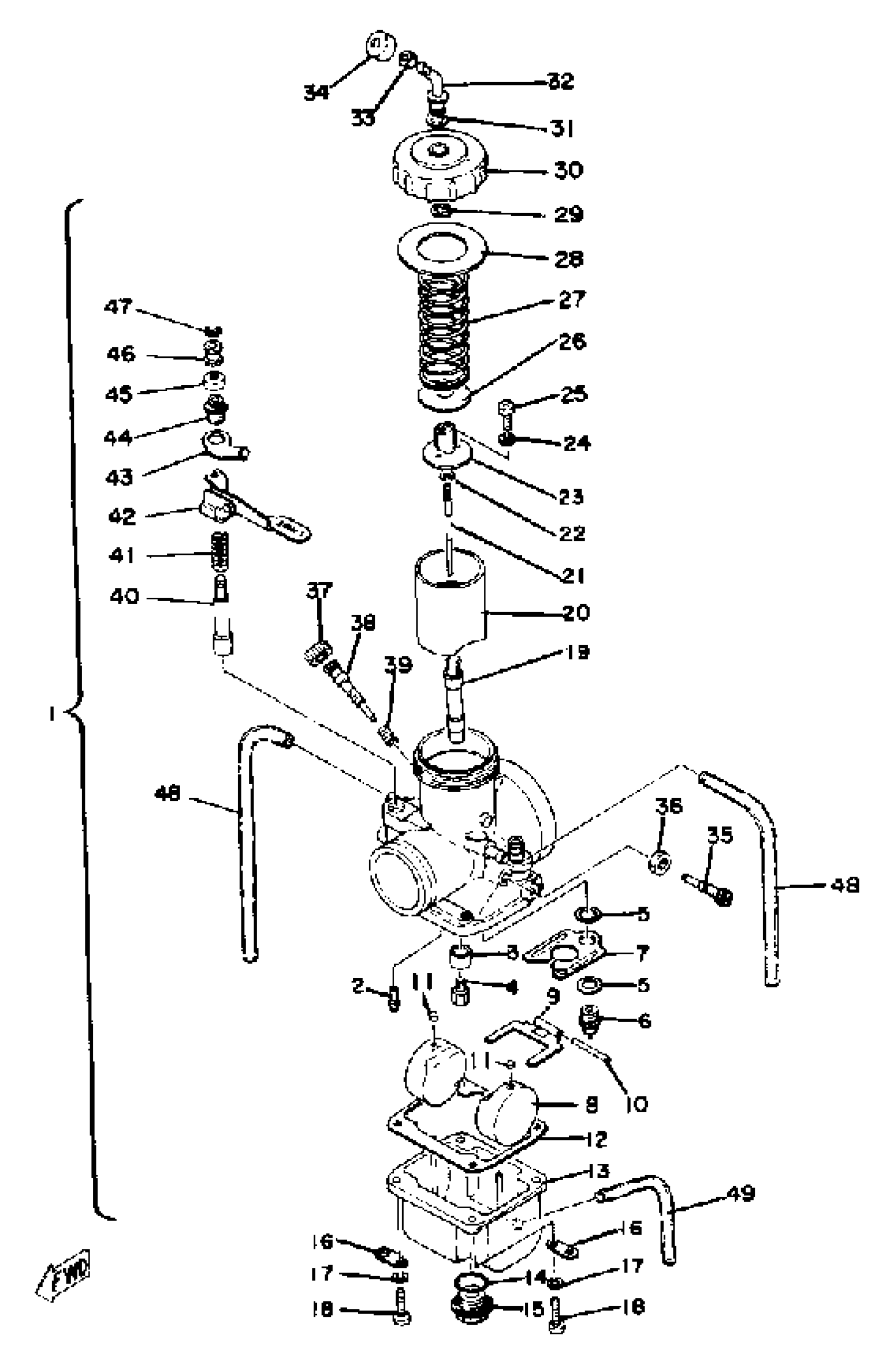

Yamaha YZ250F (YZ250F) 1979 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(2X4-14101-00-00)

Unavailable

2

JET, PILOT (# 50)

193-14142-50-00

$8.99

3

WASHER, MAIN JET

(1W5-14153-00-00)

Unavailable

4

JET,MAIN #390

137-14143-78-00

$6.99

4

JET,MAIN #400

137-14143-80-00

$7.99

4

JET,MAIN #410

137-14143-82-00

$7.99

5

WASHER,VALVE SEAT

239-14195-00-00

Unavailable

6

NEEDLE VALVE SET

23X-14107-35-00

$45.99

7

. PLATE

510-14146-00-00

Unavailable

8

. FLOAT

214-14185-00-00

Unavailable

9

. ARM, FLOAT

363-14187-00-00

Unavailable

10

PIN, FLOAT

127-14186-00-00

$6.65

11

CAP

214-14118-00-00

Unavailable

12

GASKET, FLOAT CHAMBER BODY

363-14184-00-00

$25.99

13

BODY, FLOAT CHMBR 1

(510-14181-16-00)

Unavailable

14

O-RING (541)

558-14147-00-00

Unavailable

15

PLUG, SCREW

500-14115-00-00

Unavailable

16

. PLATE

313-14146-00-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

18

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

19

. NOZZLE, MAIN (Q-0)

510-14141-50-00

Unavailable

20

. VALVE, THROTTLE 1

510-14112-30-00

Unavailable

21

. NEEDLE

239-14116-16-00

Unavailable

22

CLIP

3FA-14137-00-00

Unavailable

23

. CONNECTOR

509-14274-00-00

Unavailable

24

WASHER, SPRING

92990-03100-00

Unavailable

25

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

26

. SEAT, SPRING

509-14136-00-00

Unavailable

27

. SPRING, THROTTLE VALVE

363-14131-00-00

Unavailable

28

. GASKET

363-14126-00-00

Unavailable

29

CLIP

363-14137-00-00

Unavailable

30

. TOP, MIXING CHAMBER

1W3-14158-00-00

Unavailable

31

GASKET

509-14198-00-00

Unavailable

32

. CABLE ADJUST SCREW SET

23X-14106-00-00

Unavailable

33

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

34

CAP

3X3-14169-00-00

Unavailable

35

THROTTLE SCREW SET

23X-14103-00-00

Unavailable

36

NUT, WIRE ADJUSTING

802-14161-00-00

Unavailable

37

. CAP

1W1-14968-00-00

Unavailable

38

. AIR SCREW SET (1W3-14123-00)

26A-14104-00-00

Unavailable

39

SPRING, THROTTLE STOP

137-14133-00-00

Unavailable

40

. PLUNGER, STARTER

1W1-14171-00-00

Unavailable

41

. SPRING, PLUNGER

256-14135-00-00

Unavailable

42

. COVER, PLUNGER CAP (1W3-14173-00-00)

1W3-14175-00-00

Unavailable

43

PLATE, STARTER LVR

(1W3-14178-00-00)

Unavailable

44

. CAP, PLUNGER

802-14174-00-00

Unavailable

45

. COVER, PLUNGER CAP

802-14173-00-00

Unavailable

46

. BUSH

737-14241-00-00

Unavailable

47

. CLIP

737-14137-00-00

Unavailable

48

HOSE

89A-14987-00-00

Unavailable

49

HOSE

88R-14987-00-00

Unavailable
