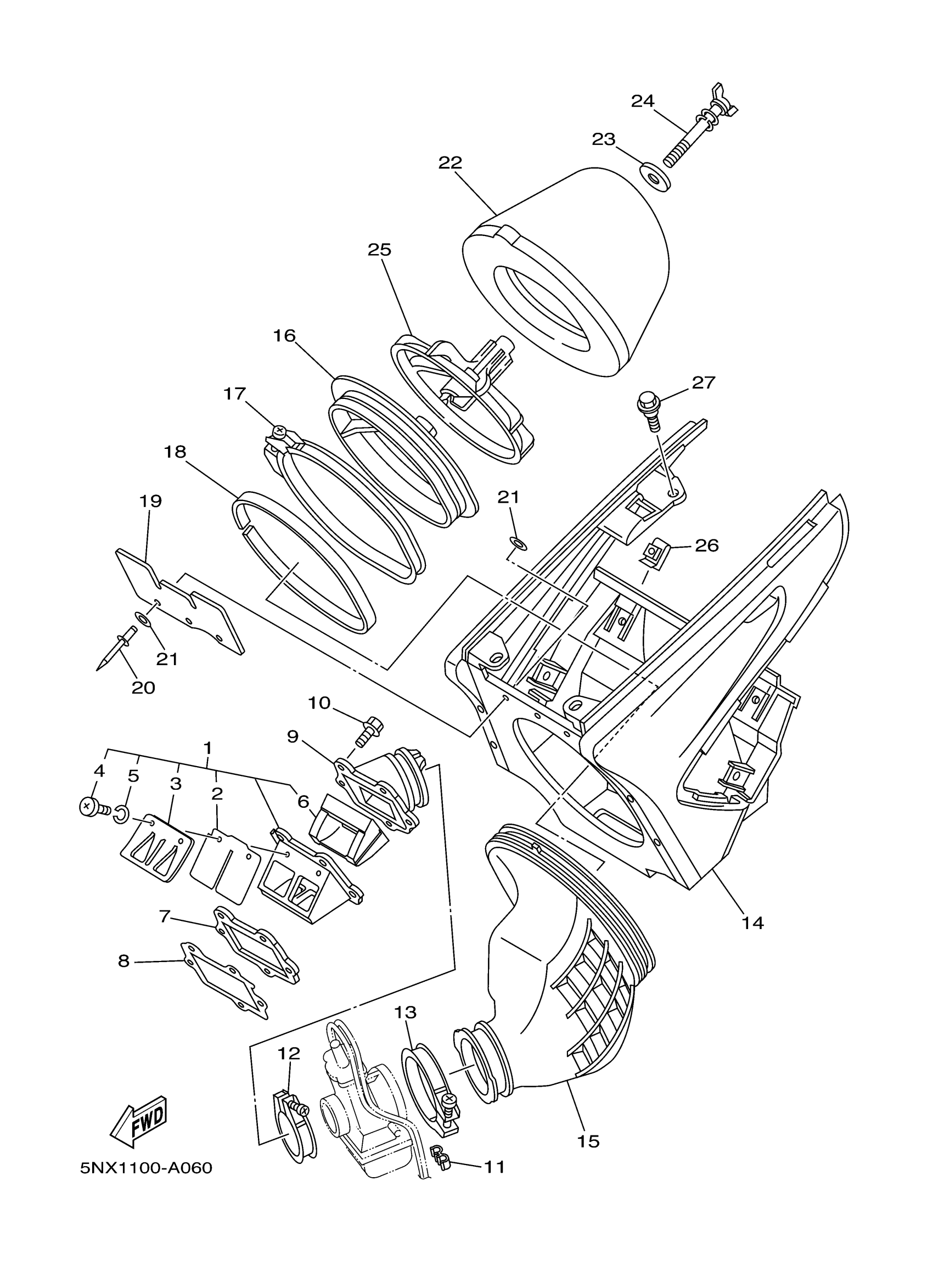

Yamaha YZ250E2 (YZ250) 1SS9 2014 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

5NX-13610-10-00

Unavailable

2

REED, VALVE

5NX-13613-00-00

$86.99

3

STOPPER, REED VALVE

4XL-13616-10-00

$20.99

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

SPACER, REED VALVE

4XL-13625-00-00

Unavailable

7

PLATE,REED VALVE

5NX-13624-00-00

$49.99

8

GASKET, VALVE SEAT

5XF-13622-00-00

$5.49

9

JOINT, CARBURETOR

5NX-13565-00-00

$121.99

10

BOLT,SOCKET

91317-06025-00

$5.60

11

CLAMP(4KB)

90464-06214-00

$3.61

12

HOSE CLAMP ASSY

90450-51001-00

$16.99

13

HOSE CLAMP ASSY

90450-70002-00

$22.99

14

AIR CLEANER CASE ASSY

5NY-14401-01-00

$150.99

15

JOINT, AIR CLEANER 1

5NX-14453-01-00

$77.99

16

HOLDER, GUIDE

5NY-14459-00-00

Unavailable

17

BAND

5NY-14455-20-00

Unavailable

18

SPACER

5NY-14442-00-00

Unavailable

19

COVER 1

5NY-14417-01-00

Unavailable

20

RIVET (813)

90267-32070-00

Unavailable

21

WASHER, PLATE 8077743700

90201-03313-00

Unavailable

22

ELEMENT, AIR CLEANER

4XM-14451-01-00

Unavailable

23

WASHER (4H7)

90209-06096-00

Unavailable

24

BOLT, WING

90122-06005-00

Unavailable

25

GUIDE

3JD-14458-01-00

Unavailable

26

NUT, SPRING (26H)

90183-06023-00

Unavailable

27

BOLT

90109-06245-00

Unavailable
