Description

Price

1

FENDER, FRONT

1C3-21511-51-00

$32.99

2

COLLAR

90387-06090-00

$8.49

3

BOLT, WITH WASHER

90119-06147-00

$1.13

4

LABEL, CAUTION

3XJ-2415E-A1-00

$4.84

5

REAR FENDER COMP.

5XE-21610-20-00

Unavailable

6

NUT, REAR FENDER

5XE-21635-10-00

$13.49

7

BOLT, FLANGE

90105-06100-00

$7.49

8

WASHER, PLATE

90201-06032-00

$8.49

9

BOLT, FLANGE

90105-06102-00

$3.50

10

WASHER, PLATE

90201-06033-00

$2.97

11

GUARD, FLAP

5TA-21642-00-00

$39.99

12

BOLT, WITH WASHER

90119-06149-00

$8.49

13

COLLAR

90387-06009-00

$10.49

14

SCREW, TAPPING

97702-60016-00

$2.19

15

EMBLEM, YAMAHA

4ES-2153E-21-00

$3.33

16

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

17

PLATE, COMPETITION USA

17D-2812P-00-00

Unavailable

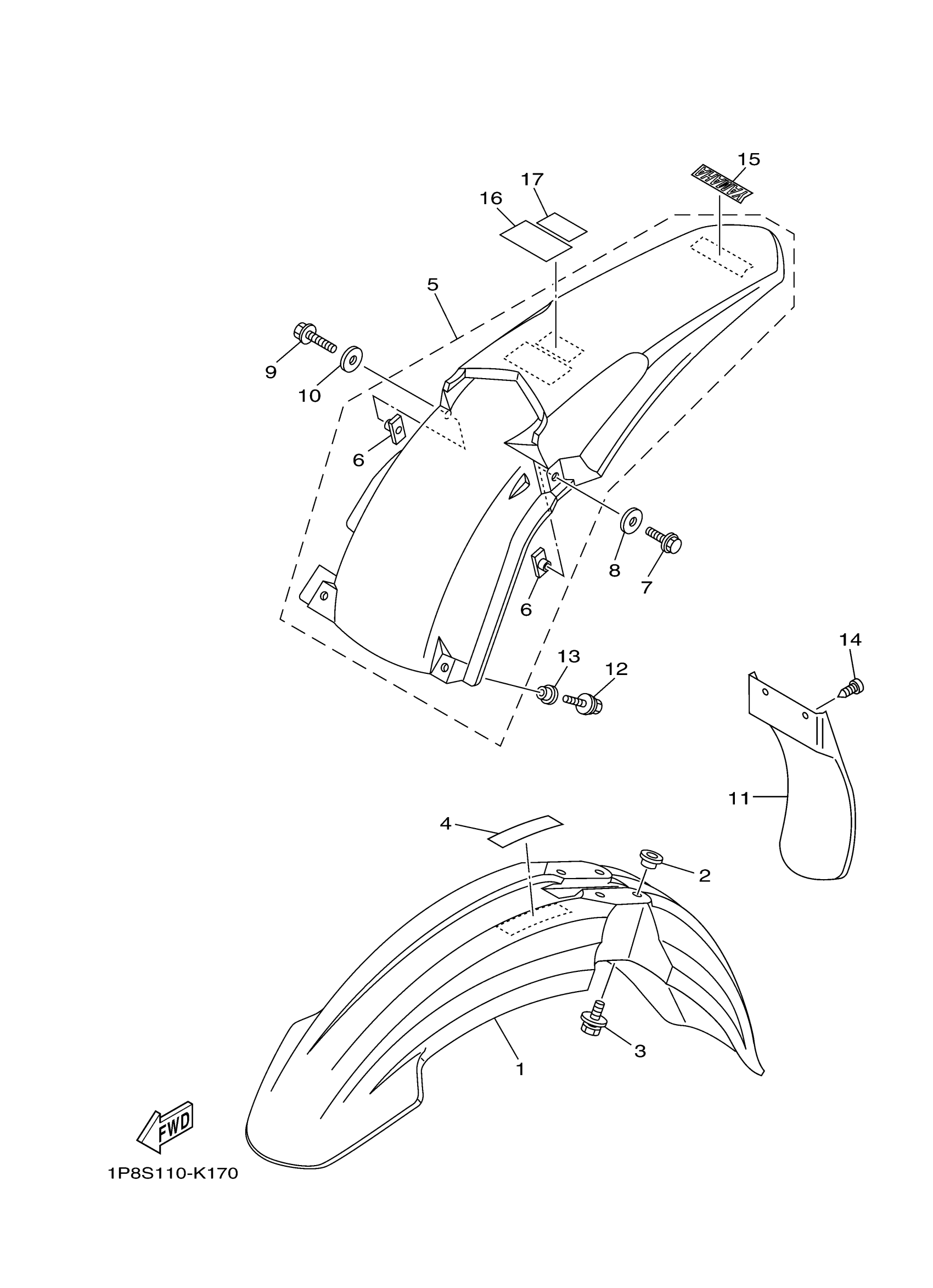

Yamaha YZ250E2 (YZ250) 1SS9 2014 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER

LABEL, CAUTION

REAR FENDER COMP.

NUT, REAR FENDER

BOLT, FLANGE

WASHER, PLATE

BOLT, FLANGE

WASHER, PLATE

GUARD, FLAP

BOLT, WITH WASHER

COLLAR

SCREW, TAPPING

EMBLEM, YAMAHA

LABEL, CAUTION

PLATE, COMPETITION USA
