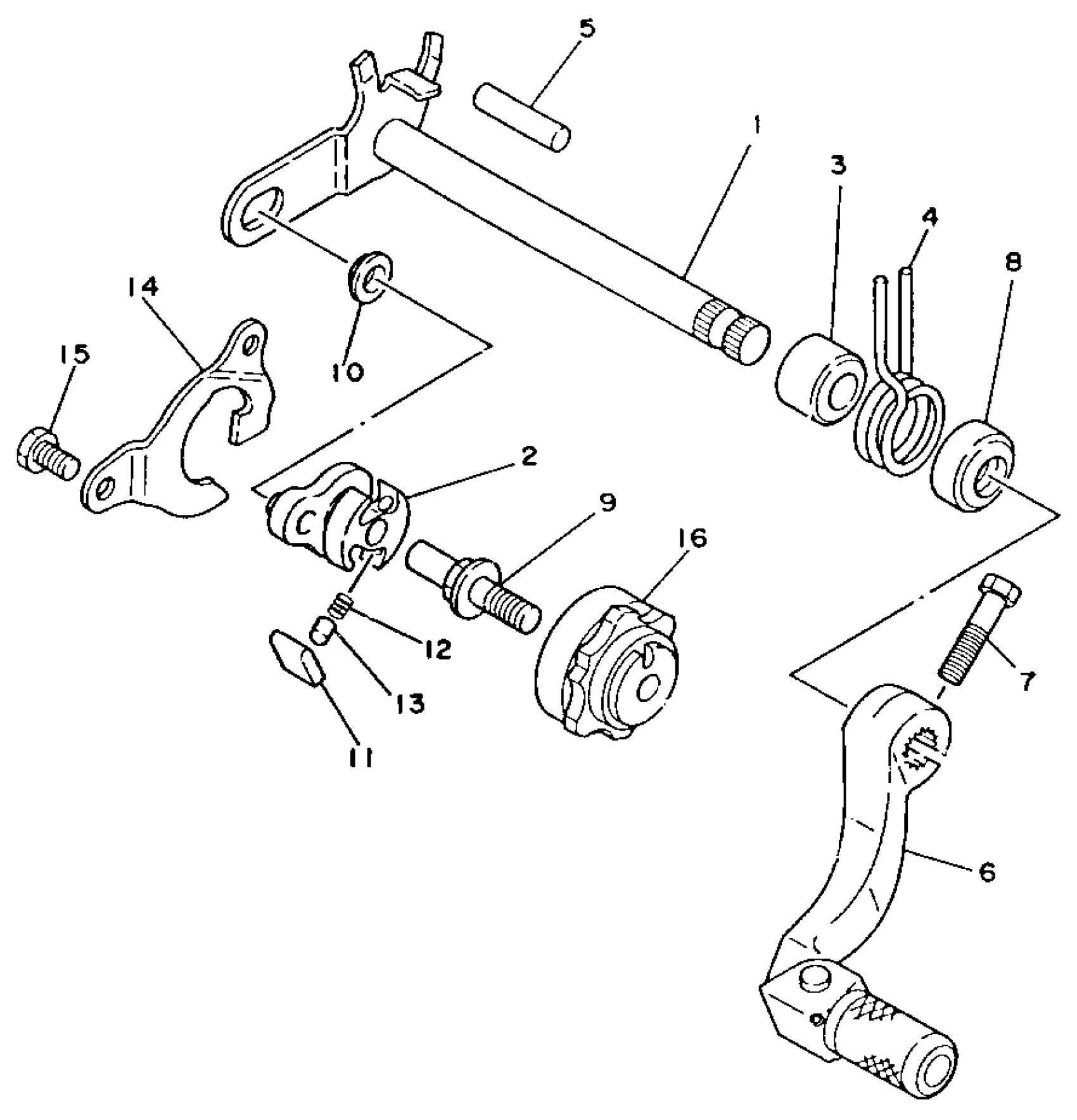

Yamaha YZ250E1 (YZ250E1) 1993 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

3XK-18101-02-00

$118.99

2

LEVER, SHIFT 2

5LP-18122-01-00

$85.99

3

SPACER(1LX)

90560-12280-00

$12.49

4

SPRING, TORSION(4DA)

90508-291A8-00

$9.49

5

PIN, DOWEL

93608-33046-00

Unavailable

6

SHIFT PEDAL ASSY

4SS-18110-00-00

$88.99

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

SEAL, OIL (30X)

93102-12321-00

$12.49

9

PIN, SHIFT

3XJ-18173-10-00

$19.99

10

ROLLER, SHIFT LEVER

3XJ-18178-00-00

$13.49

11

PAWL, SHIFTER

3XJ-18182-00-00

$15.49

12

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$8.49

13

PIN, PAWL

3XJ-18184-00-00

$15.49

14

GUIDE, SHIFT

4DA-18172-00-00

Unavailable

15

BOLT

90101-06664-00

Unavailable

16

SEGMENT

4EW-18185-00-00

Unavailable
