Description

Price

1

RR. MASTER CYLINDER ASSY.

3SP-2583V-00-00

Unavailable

2

CYLINDER KIT, MASTER

1FK-W0042-50-00

$70.99

3

O-RING (22U)

93210-15566-00

$7.49

4

CIRCLIP

2VN-25866-00-00

$6.99

5

JOINT

2VN-2582A-50-00

$20.99

6

JOINT

3SP-27222-00-00

$23.99

7

NUT(6L2)

95333-08600-00

$2.49

8

TANK, RESERVOIR

4EW-25894-00-00

$23.99

9

CAP, RESERVOIR

3XP-25852-50-00

$22.99

10

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

11

BUSH,DIAPHRAGM

2VN-25855-00-00

$10.99

12

CLIP (7K7)

90467-11044-00

$8.49

13

HOSE (4EW)

90445-135H9-00

Unavailable

14

BOLT, BUTTON

92014-06016-00

$8.49

15

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

16

HOSE, BRAKE 2

99999-03040-00

Unavailable

17

JOINT

3LC-25885-00-00

Unavailable

18

BOLT, UNION(3GM)

90401-10159-00

Unavailable

19

WASHER, PLATE(481)

90201-10118-00

Unavailable

20

HOLDER, BRAKE HOSE 2

2VM-25876-00-00

Unavailable

21

SCREW, TAPPING(6U1)

97780-50610-00

Unavailable

22

CLAMP

90465-12362-00

Unavailable

23

BOLT, FLANGE(3BM)

95024-06008-00

Unavailable

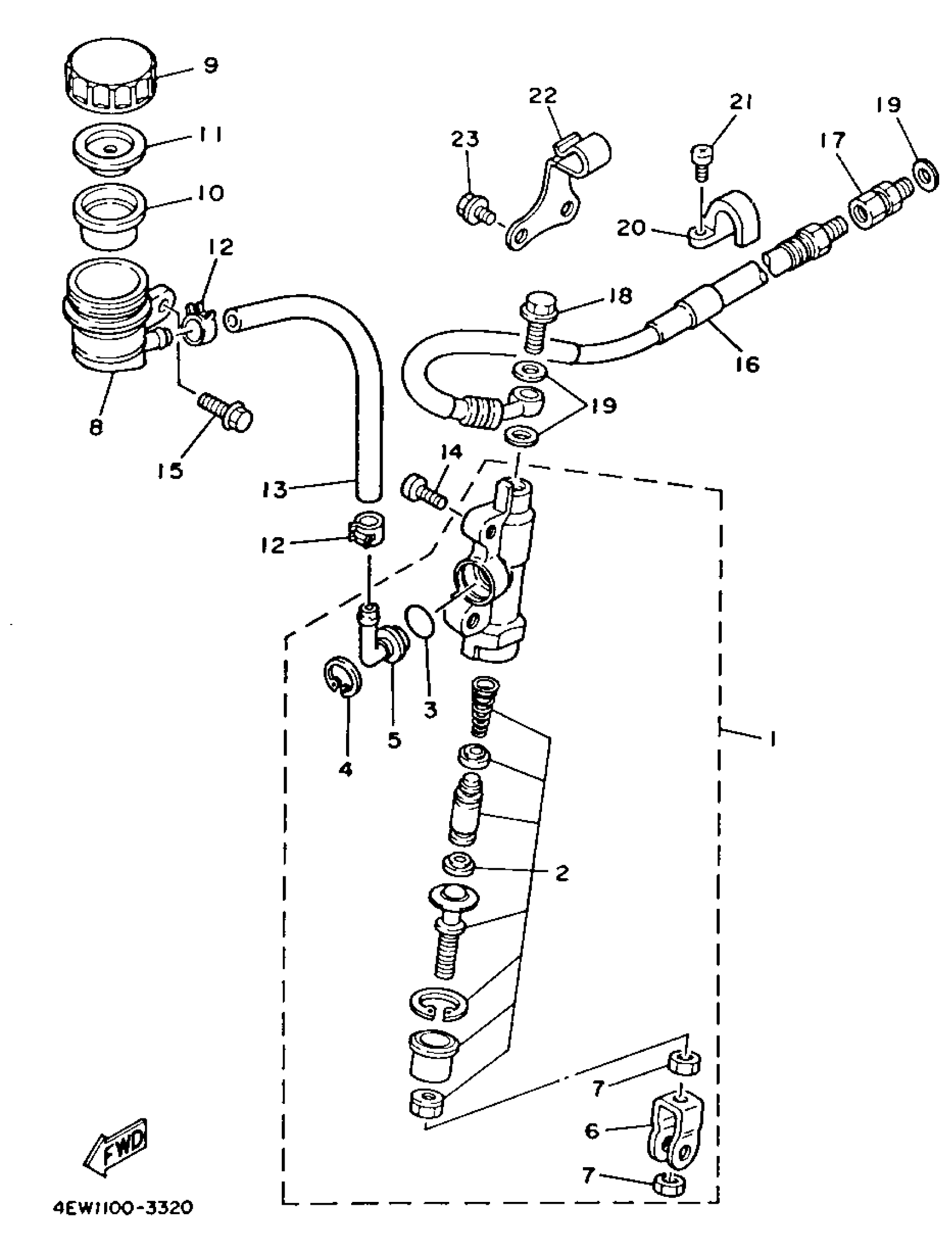

Yamaha YZ250E1 (YZ250E1) 1993 REAR MASTER CYLINDER Diagram

RR. MASTER CYLINDER ASSY.

CYLINDER KIT, MASTER

O-RING (22U)

CIRCLIP

JOINT

JOINT

NUT(6L2)

TANK, RESERVOIR

CAP, RESERVOIR

DIAPHRAGM, RESERVOIR

BUSH,DIAPHRAGM

CLIP (7K7)

HOSE (4EW)

BOLT, BUTTON

BOLT, FLANGE(2UJ)

HOSE, BRAKE 2

JOINT

BOLT, UNION(3GM)

WASHER, PLATE(481)

HOLDER, BRAKE HOSE 2

SCREW, TAPPING(6U1)

CLAMP

BOLT, FLANGE(3BM)
