1993 Yamaha YZ250E1 (YZ250E1) Frame Diagram

← All diagrams

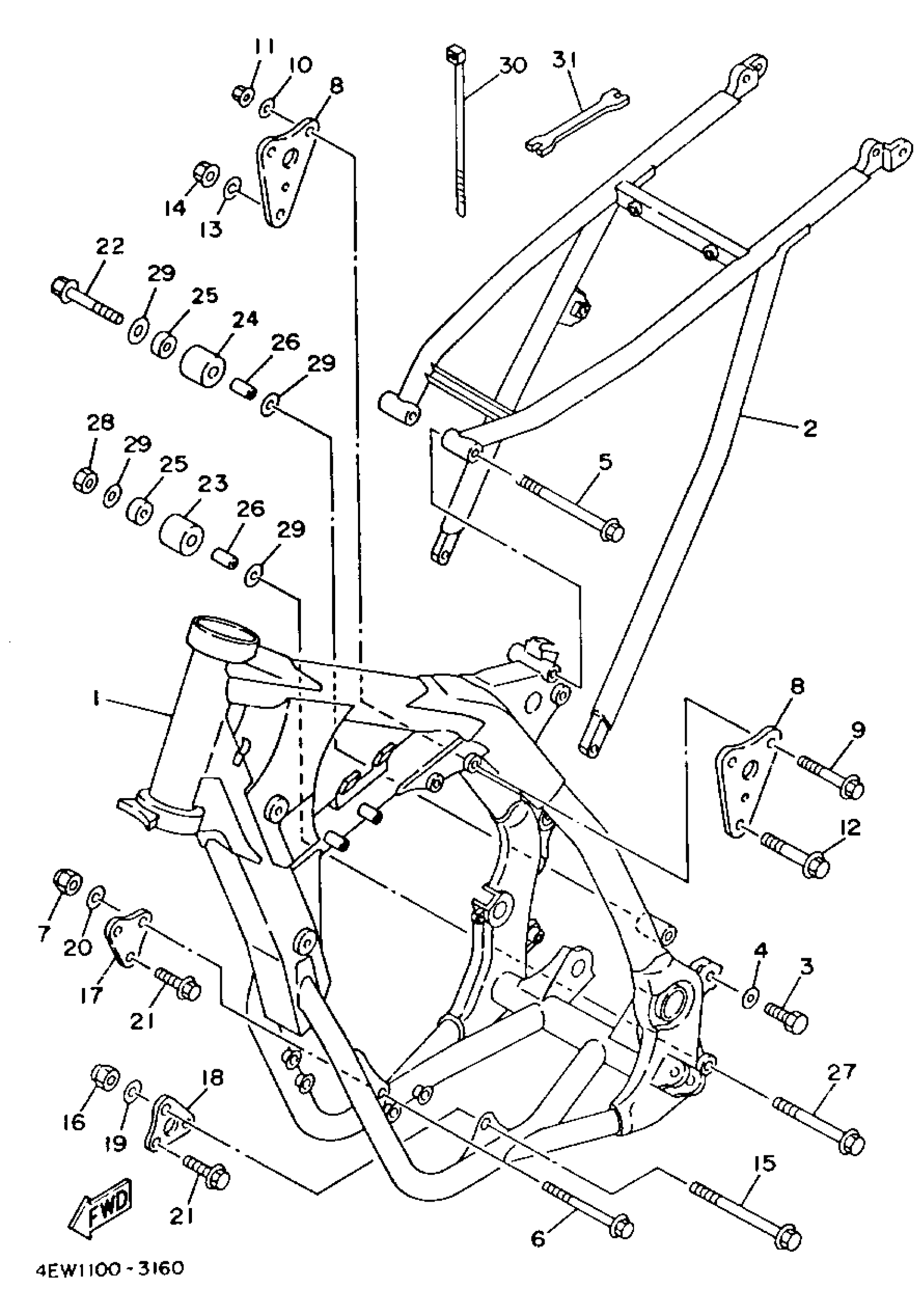

Find the part on the Frame diagram for your 1993 Yamaha YZ250E1 (YZ250E1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha YZ250E1 (YZ250E1) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

4EW-21101-00-UJ

1
Out of stock

2

REAR FRAME COMP.

4EW-21190-00-UJ

1
Out of stock

3

BOLT(4EW)

90106-08051-00

—
Out of stock

4

WASHER, PLATE (7R4)

90201-080E2-00

1
Out of stock

5

BOLT, WASHER BASED (401)

90105-08120-00

1
Out of stock

6

BOLT, WASHER BASED

90105-08592-00

1
Out of stock

7

NUT, U

95617-08100-00

1
Out of stock

8

BRACKET, REAR UPPER 1

4EW-21425-00-00

1
Out of stock

9

BOLT, FLANGE

95817-08050-00

1
Out of stock

10

WASHER, PLATE (12X)

90201-087F0-00

1
Out of stock

11

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

12

BOLT, FLANGE(87Y)

95817-10055-00

1
Out of stock

13

958-69527-00 WASHER, PLAIN

92990-10200-00

1
Out of stock

14

NUT, U

95614-10100-00

1
Out of stock

15

BOLT, WASHER BASED(3RB)

90105-10733-00

1
Out of stock

16

NUT, SELF-LOCKING(JN5)

95607-10200-00

—
Out of stock

17

BRACKET, FRONT LOWER 1

4EW-21417-00-00

1
Out of stock

18

BRACKET, REAR LOWER 1

4EW-21427-00-00

1
Out of stock

19

WASHER (853)

90201-08326-00

—
Out of stock

20

WASHER, PLATE(47X)

90201-101J1-00

—
Out of stock

21

BOLT, FLANGE

95817-08035-00

—
Out of stock

22

BOLT, FLANGE(4KG)

95024-08040-00

—
Out of stock

23

TENSIONER

3JD-22178-20-00

—
Out of stock

24

TENSIONER

4EW-22178-01-00

—
Out of stock

25

BEARING (3X3)

93300-60804-00

—
Out of stock

26

COLLAR(1NL)

90387-086N4-00

—
Out of stock

27

BOLT, FLANGE

95027-08065-00

—
Out of stock

28

NUT, HEXAGON (509)

90170-08158-00

—
Out of stock

29

WASHER, PLATE(3XP)

90201-086P8-00

—
Out of stock

30

BAND

1UA-82591-00-00

—
Out of stock

31

WRENCH, HEXAGON

56A-28166-00-00

1
Out of stock
