Description

Price

1

CRANKCASE 1

2VM-15111-06-00

Unavailable

2

BOLT,SOCKET

91317-06050-00

$3.88

3

BOLT, SOCKET

91317-06070-00

$4.99

4

PLATE, BEARING COVER

3SP-15381-00-00

Unavailable

5

SCREW, FLAT

98707-06012-00

$8.49

6

CONNECTOR, SUCTION PIPE

353-13115-01-00

$6.99

7

HOSE (L1500)

90445-084J0-00

$18.99

8

CRANKCASE 2

2VM-15121-03-00

Unavailable

9

PIN, DOWEL

99530-12016-00

$4.89

10

COLLAR

90387-160H4-00

Unavailable

11

PLATE, COVER

4L0-17471-00-00

$20.99

12

SCREW, PAN

98517-06012-00

$3.78

13

HOLDER

4V4-15118-00-00

$29.99

14

BOLT, FLANGE

95812-06010-00

$2.98

15

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$3.08

16

GASKET (3JD1)

90430-12207-00

Unavailable

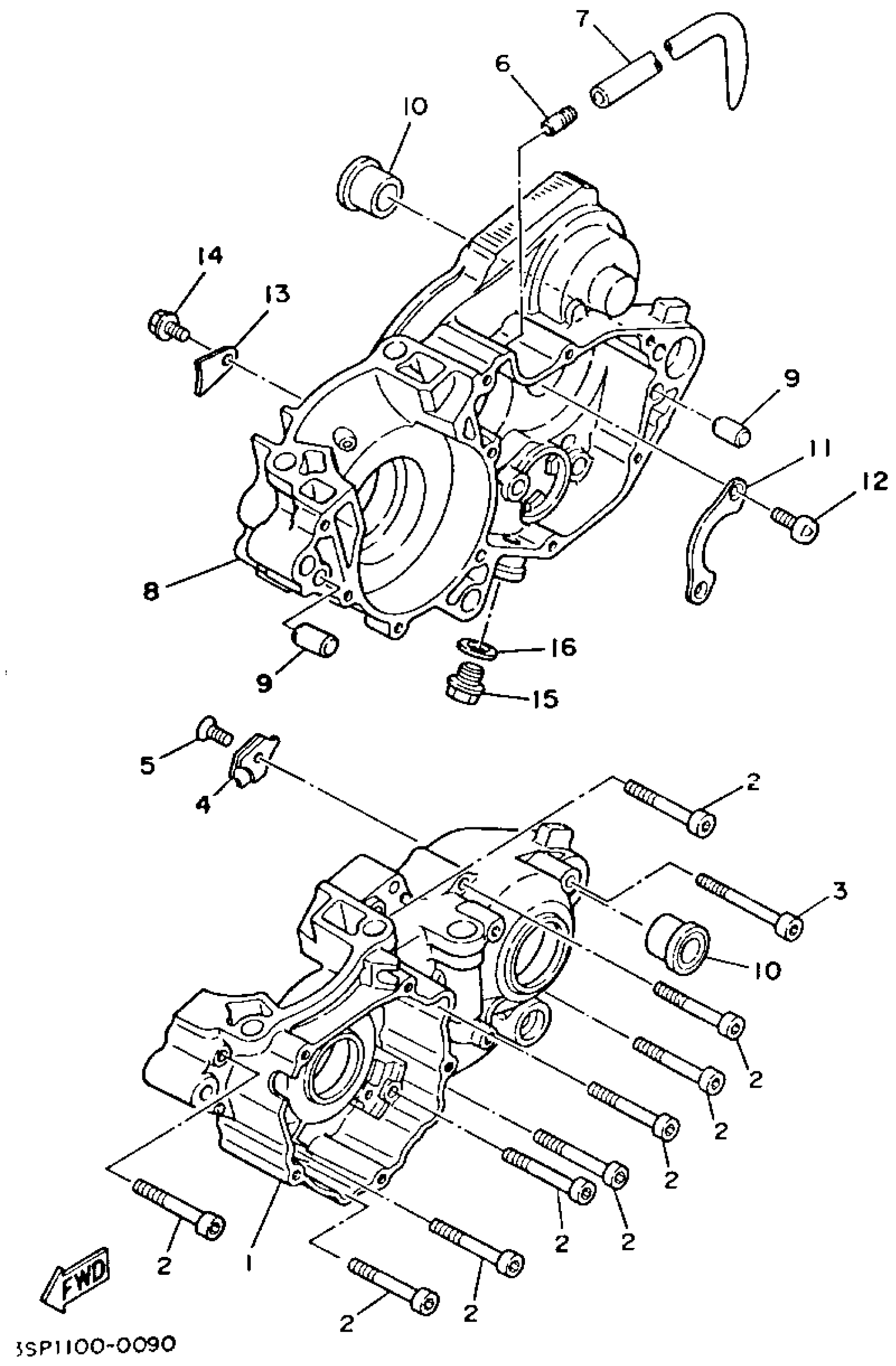

Yamaha YZ250E1 (YZ250E1) 1993 CRANKCASE Diagram

CRANKCASE 1

BOLT,SOCKET

BOLT, SOCKET

PLATE, BEARING COVER

SCREW, FLAT

CONNECTOR, SUCTION PIPE

HOSE (L1500)

CRANKCASE 2

PIN, DOWEL

COLLAR

PLATE, COVER

SCREW, PAN

HOLDER

BOLT, FLANGE

PLUG, STRAIGHT SCREW (22F)

GASKET (3JD1)
