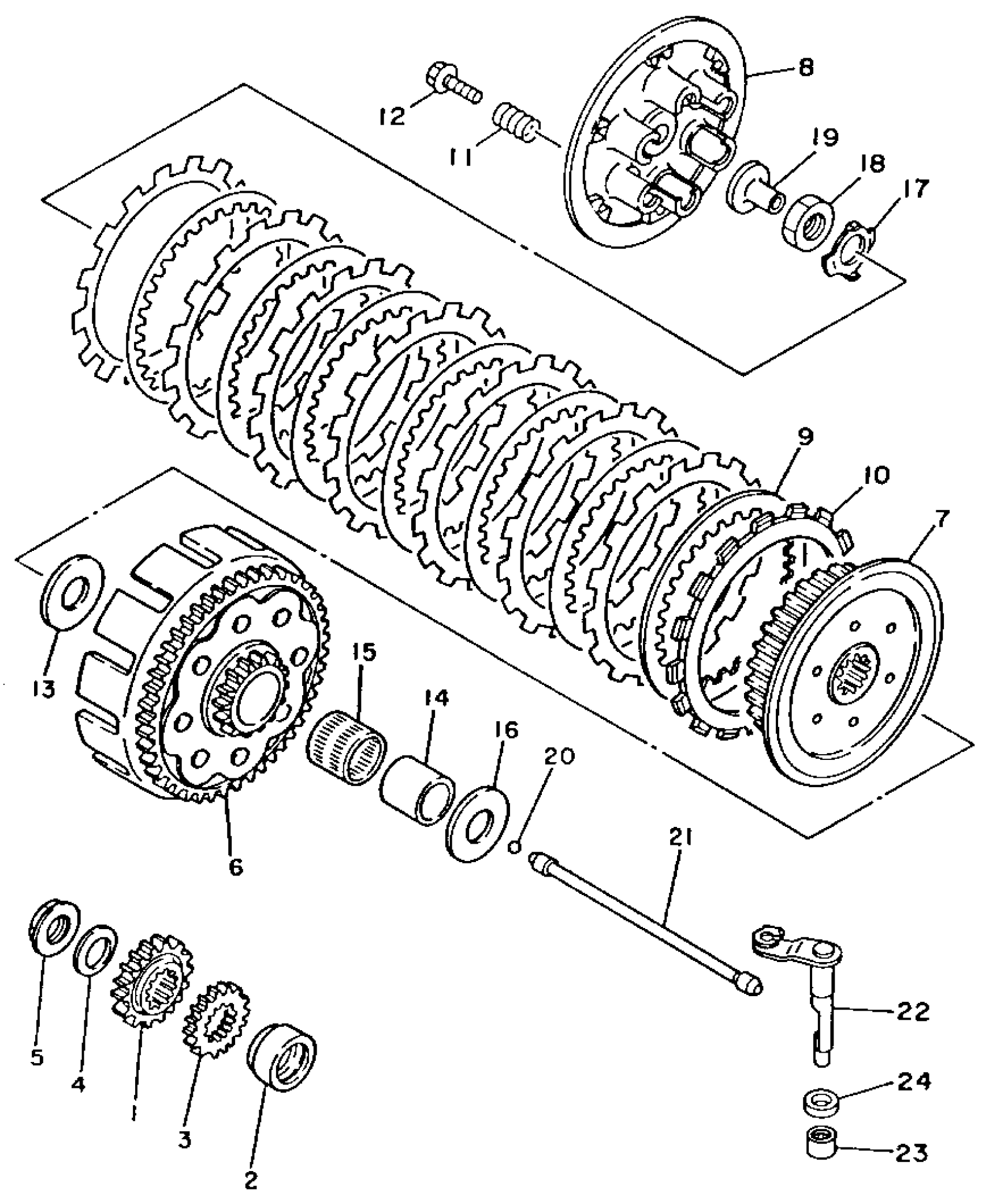

Yamaha YZ250E1 (YZ250E1) 1993 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

2VM-16111-00-00

Unavailable

2

COLLAR

90387-252F6-00

Unavailable

3

GEAR, GOVERNOR DRIVE

3XK-11956-00-00

$42.99

4

WASHER, CONICAL SPRING

90208-18025-00

Unavailable

5

NUT (498)

90179-18172-00

$14.99

6

PRIMARY DRIVEN GEAR COMP.

4EW-16150-01-00

Unavailable

7

BOSS, CLUTCH

5NX-16371-00-00

$171.99

8

PLATE,PRESSURE 1

4EW-16351-01-00

Unavailable

9

PLATE, CLUTCH 2

4X7-16325-10-00

$16.49

10

PLATE, FRICTION

3XK-16321-00-00

$28.99

11

SPRING, COMPRESSION (4H7)

90501-23598-00

$7.49

12

SCREW, WITH WASHER (1W4)

90159-06016-00

$8.49

13

PLATE, THRUST

2K7-16154-00-00

$20.99

14

SPACER 1

2VM-16181-00-00

$46.99

15

BEARING, CYLINDRICAL(2VM)

93310-230T7-00

$38.99

16

PLATE, THRUST 1

3SP-16154-00-00

Unavailable

17

WASHER, LOCK (34L)

90215-20231-00

Unavailable

18

NUT (3R4)

90170-20255-00

Unavailable

19

ROD, PUSH 1

4EW-16356-00-00

Unavailable

20

BALL (498)

93511-32027-00

Unavailable

21

ROD, PUSH 2

4EW-16357-00-00

Unavailable

22

PUSH LEVER COMP.

4EW-16381-01-00

Unavailable

23

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

Unavailable

24

OIL SEAL (4G0)

93102-12224-00

Unavailable
