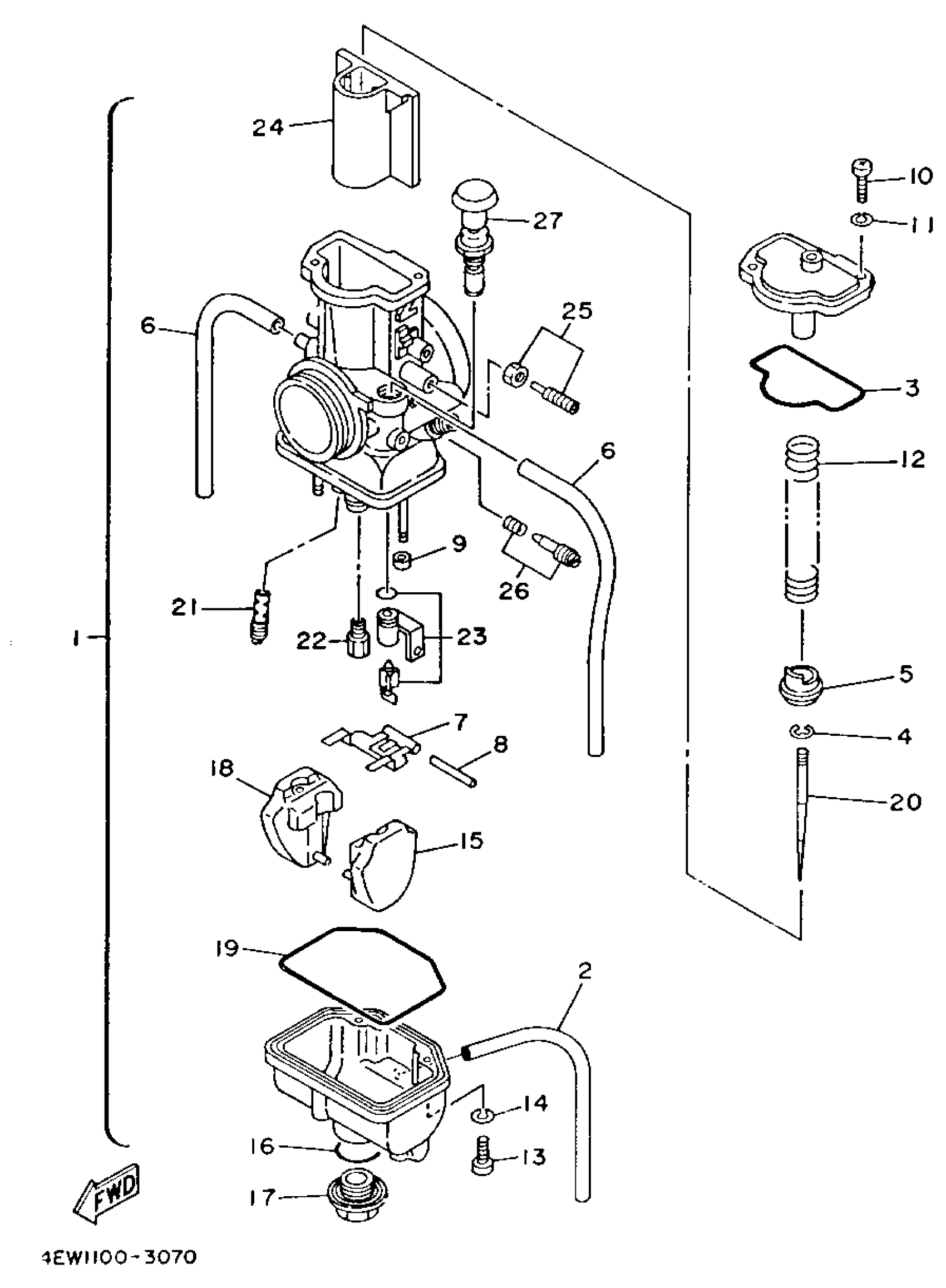

Yamaha YZ250E1 (YZ250E1) 1993 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

4EW-14101-00-00

Unavailable

2

PIPE 1

3XV-14348-20-00

$20.99

3

O-RING

3JD-14147-00-00

$11.99

4

CLIP

256-14919-00-00

$6.99

5

. RING

3JD-14194-00-00

Unavailable

6

HOSE

8AX-14987-00-00

Unavailable

7

. ARM, FLOAT

363-14187-00-00

Unavailable

8

PIN, FLOAT

353-14186-00-00

$7.99

9

CAP

214-14118-00-00

Unavailable

10

SCREW, PAN HEAD

98511-04012-00

Unavailable

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

. SPRING, THROTTLE VALVE

3JD-14131-00-00

Unavailable

13

SCREW PAN HEAD

98580-03010-00

$8.49

14

WASHER, SPRING

92990-03100-00

$8.49

15

. FLOAT

3JD-14185-00-00

Unavailable

16

O-RING

3JE-14561-00-00

Unavailable

17

PLUG,SCREW

4DP-14115-00-00

Unavailable

18

. FLOAT

3JE-14185-00-00

Unavailable

19

O-RING

3JE-14147-00-00

Unavailable

20

. NEEDLE (J8-6EJ33-60)

3JD-14116-F0-00

Unavailable

20

. NEEDLE (J8-6EJ33-61)

3JD-14116-F1-00

Unavailable

20

. NEEDLE (J8-6EJ33-62)

3JD-14116-F2-00

Unavailable

20

. NEEDLE (J8-6EJ33-63)

3JD-14116-F3-00

Unavailable

20

. NEEDLE (J8-6EJ33-59)

3JD-14116-F9-00

Unavailable

21

. JET, PILOT (# 35)

3H1-14142-35-00

Unavailable

21

JET, PILOT (# 40)

3H1-14142-40-00

Unavailable

21

JET, PILOT (# 45)

3H1-14142-45-00

Unavailable

21

JET, PILOT (# 50)

3H1-14142-50-00

Unavailable

21

JET, PILOT (# 55)

3H1-14142-55-00

Unavailable

22

JET, MAIN #330

137-14143-66-A1

Unavailable

22

JET,MAIN #340

137-14143-68-00

Unavailable

22

JET,MAIN #350

137-14143-70-00

Unavailable

22

JET,MAIN #360

137-14143-72-00

Unavailable

22

JET,MAIN #380

137-14143-76-00

Unavailable

22

JET,MAIN #390

137-14143-78-00

Unavailable

23

NEEDLE VALVE SET

3JD-14107-35-00

Unavailable

24

. VALVE, THROTTLE (CA 30)

3JD-14112-30-00

Unavailable

24

. VALVE, THROTTLE (CA 35)

3JD-14112-35-00

Unavailable

24

. VALVE, THROTTLE (CA 40)

3JD-14112-40-00

Unavailable

24

. VALVE, THROTTLE (CA 45)

3JD-14112-45-00

Unavailable

24

. VALVE, THROTTLE (CA 50)

3JD-14112-50-00

Unavailable

25

THROTTLE SCREW SET

3JD-14103-00-00

Unavailable

26

AIR SCREW SET

4GL-14104-00-00

Unavailable

27

PLUNGER, STARTER

3JE-14171-00-00

Unavailable
