Description

Price

1

REED VALVE ASSY

4DA-13610-01-00

Unavailable

2

REED, VALVE

3SP-13613-01-00

$32.99

3

STOPPER, REED VALVE

8DJ-13616-00-00

$17.49

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

. SPACER, REED VALVE

4DA-13625-00-00

Unavailable

7

GASKET, VALVE SEAT

2K7-13621-10-00

$14.49

8

JOINT, CARBURETOR

4DA-13565-00-00

Unavailable

9

CLAMP, HOSE

90460-51109-00

Unavailable

10

BOLT, FLANGE(3DM)

95024-06020-00

$5.60

11

CLAMP (3Y2)

90464-16039-00

$9.49

12

CLAMP, HOSE (29L)

90460-68230-00

$16.99

13

JOINT, AIR CLEANER 1

4EW-14453-00-00

Unavailable

14

HOLDER,GUIDE

3JD-14459-01-00

Unavailable

15

SEAL

3JD-14462-00-00

$35.99

16

CASE, AIR CLEANER

4EW-14411-03-00

Unavailable

17

PLATE

5MV-14477-00-00

Unavailable

18

NUT, U

95617-05100-00

Unavailable

19

ELEMENT, AIR CLEANER

4PE-14451-02-00

Unavailable

20

GUIDE

3JD-14458-01-00

Unavailable

21

BOLT, WING

90122-06005-00

Unavailable

22

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable

23

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

24

WASHER (4H7)

90209-06096-00

Unavailable

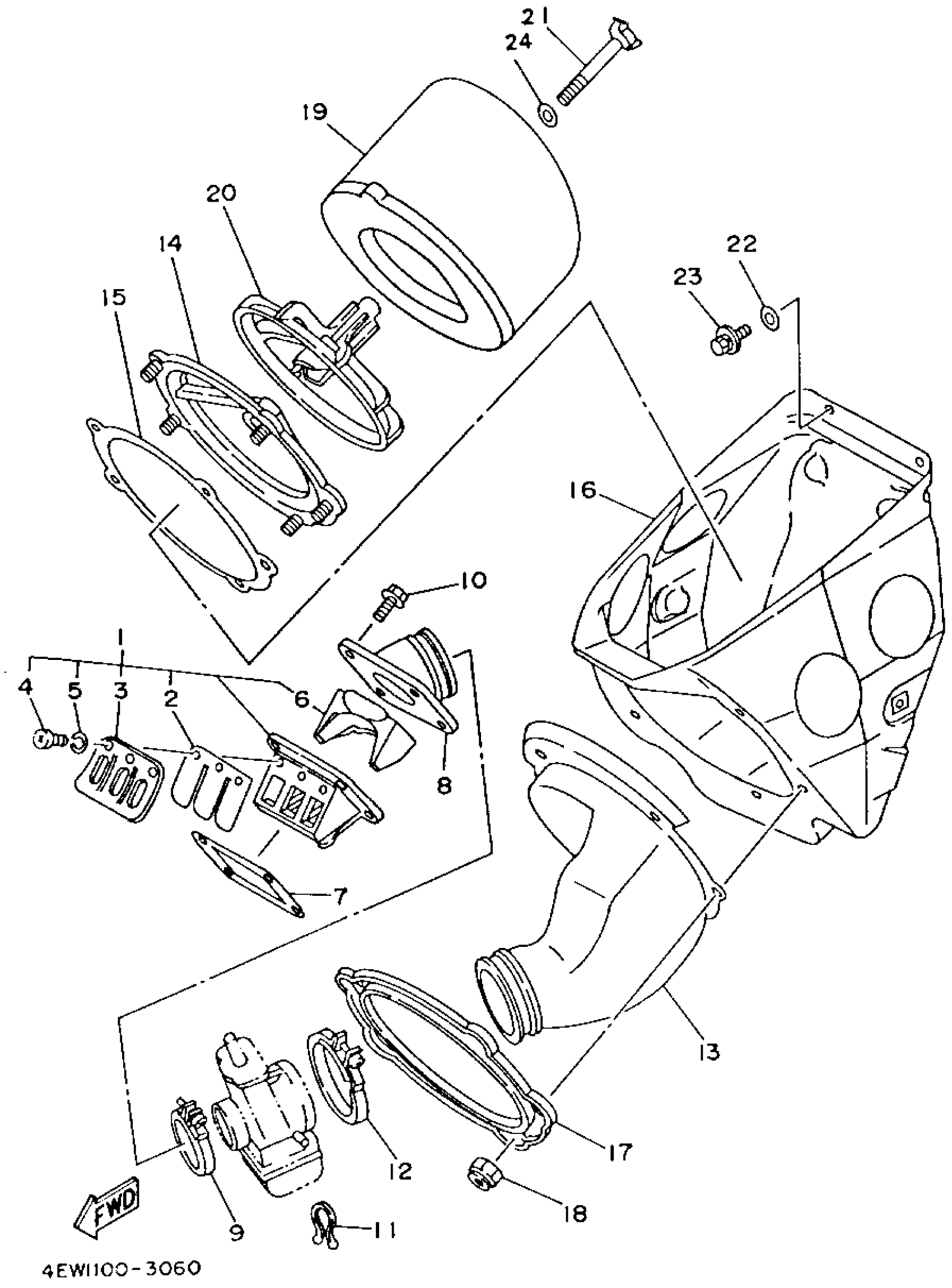

Yamaha YZ250E1 (YZ250E1) 1993 AIR FILTER Diagram

REED VALVE ASSY

REED, VALVE

STOPPER, REED VALVE

SCREW, PAN HEAD (J10)

WASHER, SPRING

. SPACER, REED VALVE

GASKET, VALVE SEAT

JOINT, CARBURETOR

CLAMP, HOSE

BOLT, FLANGE(3DM)

CLAMP (3Y2)

CLAMP, HOSE (29L)

JOINT, AIR CLEANER 1

HOLDER,GUIDE

SEAL

CASE, AIR CLEANER

PLATE

NUT, U

ELEMENT, AIR CLEANER

GUIDE

BOLT, WING

WASHER, PLATE (583 REAR FENDER

BOLT, FLANGE(4MY)

WASHER (4H7)
