1978 Yamaha YZ250E (YZ250E) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1978 Yamaha YZ250E (YZ250E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

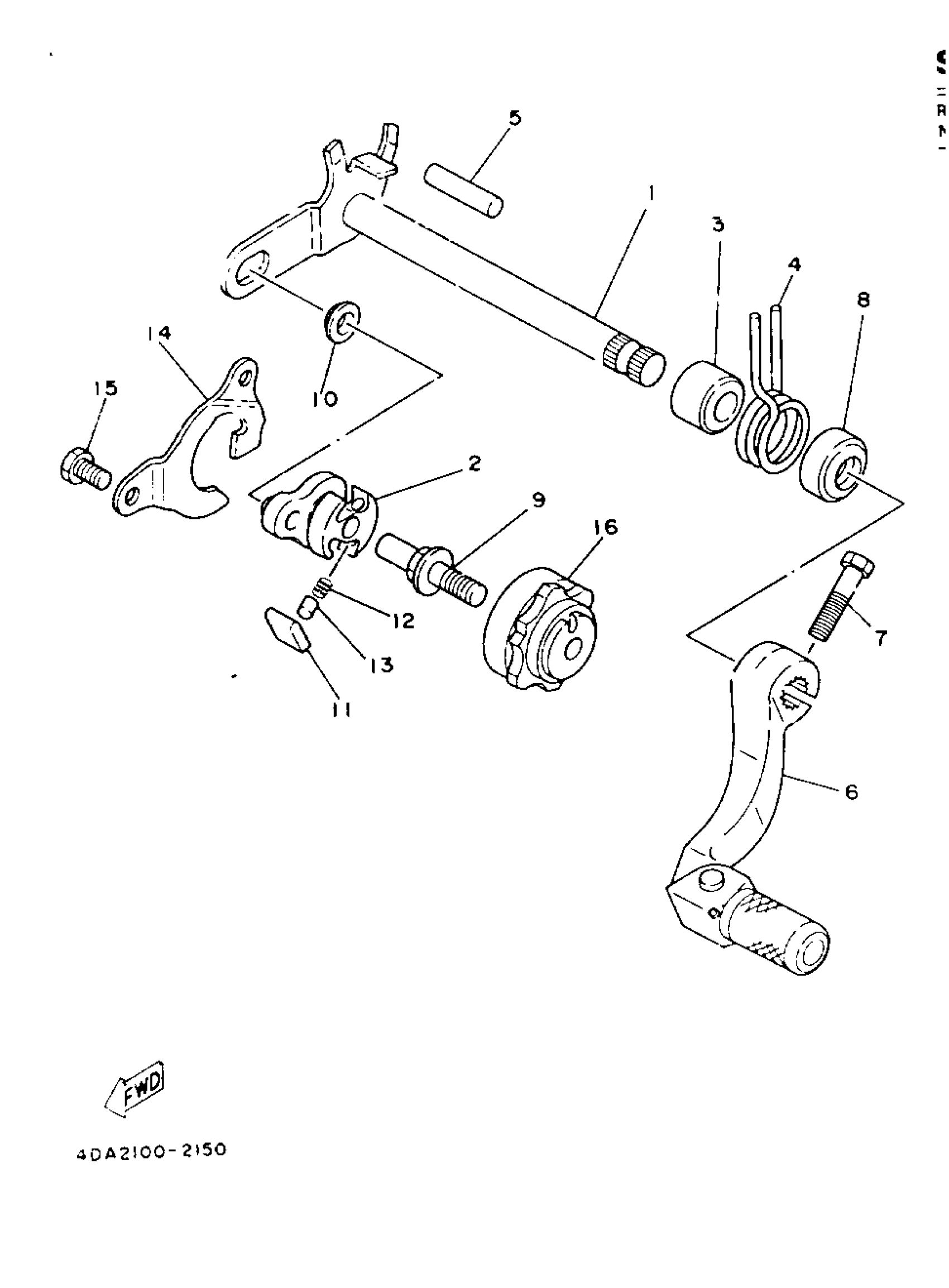

1978 Yamaha YZ250E (YZ250E) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSY

3XK-18101-02-00

1
Out of stock

2

LEVER, SHIFT 2

5LP-18122-01-00

1
Out of stock

3

SPACER(1LX)

90560-12280-00

1

$10.57

In stock

4

SPRING, TORSION(4DA)

90508-291A8-00

1

$8.17

In stock

5

PIN, DOWEL

93608-33046-00

1
Out of stock

6

SHIFT PEDAL ASSY

4SS-18110-00-00

1

$77.77

In stock

7

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

8

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

9

PIN, SHIFT

3XJ-18173-10-00

1
Out of stock

10

ROLLER, SHIFT LEVER

3XJ-18178-00-00

1
Out of stock

11

PAWL, SHIFTER

3XJ-18182-00-00

1
Out of stock

12

SPRING, COMPRESSION(3XJ)

90501-052G5-00

1
Out of stock

13

PIN, PAWL

3XJ-18184-00-00

1
Out of stock

14

GUIDE, SHIFT

4DA-18172-00-00

1
Out of stock

15

BOLT

90101-06664-00

1
Out of stock

16

SEGMENT

4EW-18185-00-00

—
Out of stock
← Shift CAM-Fork YZ250E Shift Shaft YZ250C →
