1978 Yamaha YZ250E (YZ250E) Shift CAM - Fork Diagram

← All diagrams

Find the part on the Shift CAM - Fork diagram for your 1978 Yamaha YZ250E (YZ250E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

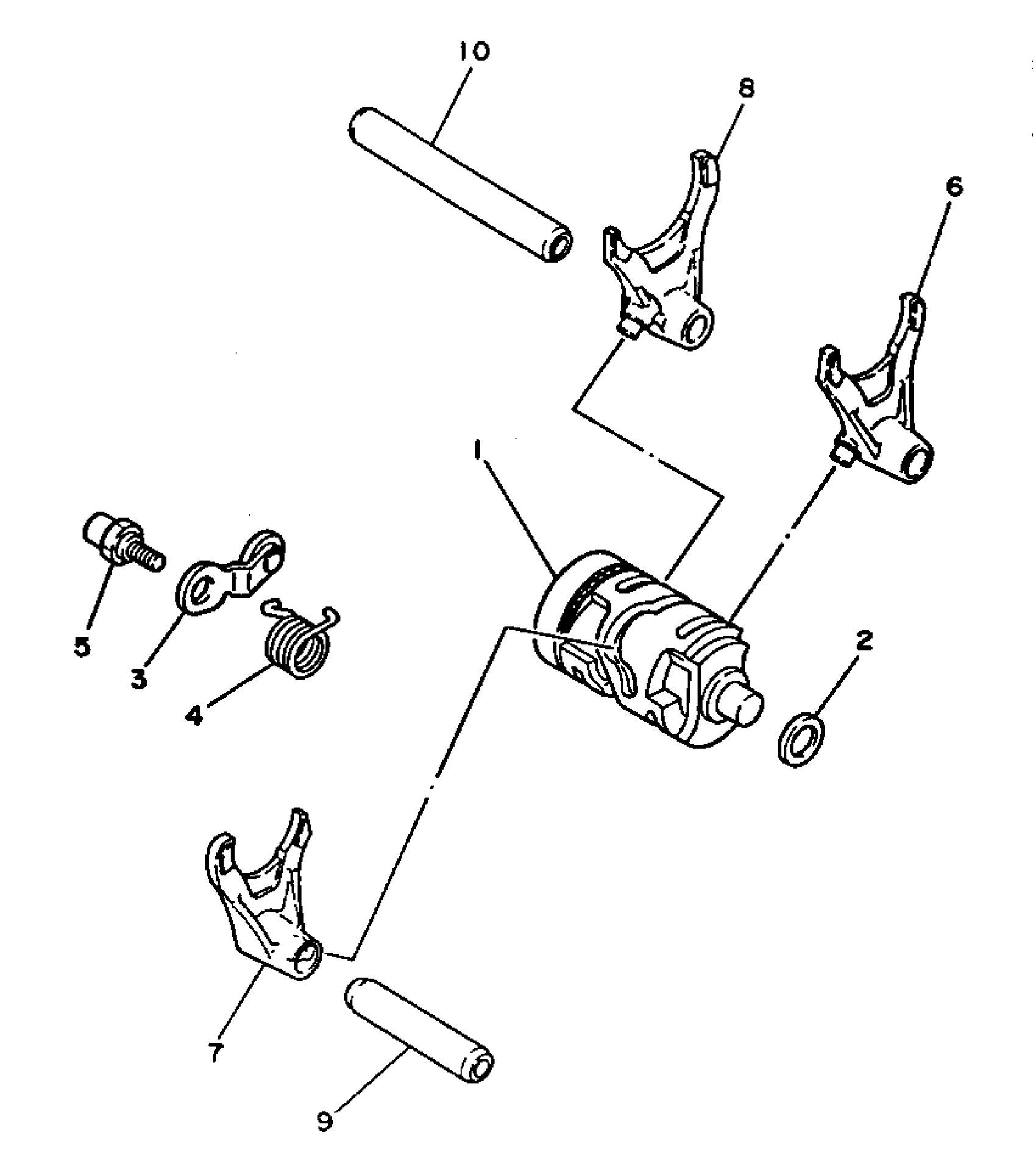

1978 Yamaha YZ250E (YZ250E) Shift CAM - Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

3XK-18540-01-00

1
Out of stock

2

WASHER PLATE 164185720000

90201-12166-00

1

$6.29

In stock

3

STOPPER LEVER ASSY

3XK-18140-00-00

1

$19.68

In stock

4

SPRING, TORSION (17W)

90508-26561-00

1

$8.28

In stock

5

BOLT, STOPPER

3XK-18177-00-00

1
Out of stock

6

FORK, SHIFT 1

2VM-18511-00-00

1
Out of stock

7

FORK, SHIFT 2

2VM-18512-00-00

—
Out of stock

8

FORK, SHIFT 3

2VM-18513-00-00

1
Out of stock

9

BAR,SHIF FRK GDE 1

4EX-18531-00-00

1
Out of stock

10

BAR, SHIFT FORK GUIDE 2

3XV-18535-00-00

1
Out of stock
