1978 Yamaha YZ250E (YZ250E) Electrical 1 Diagram

← All diagrams

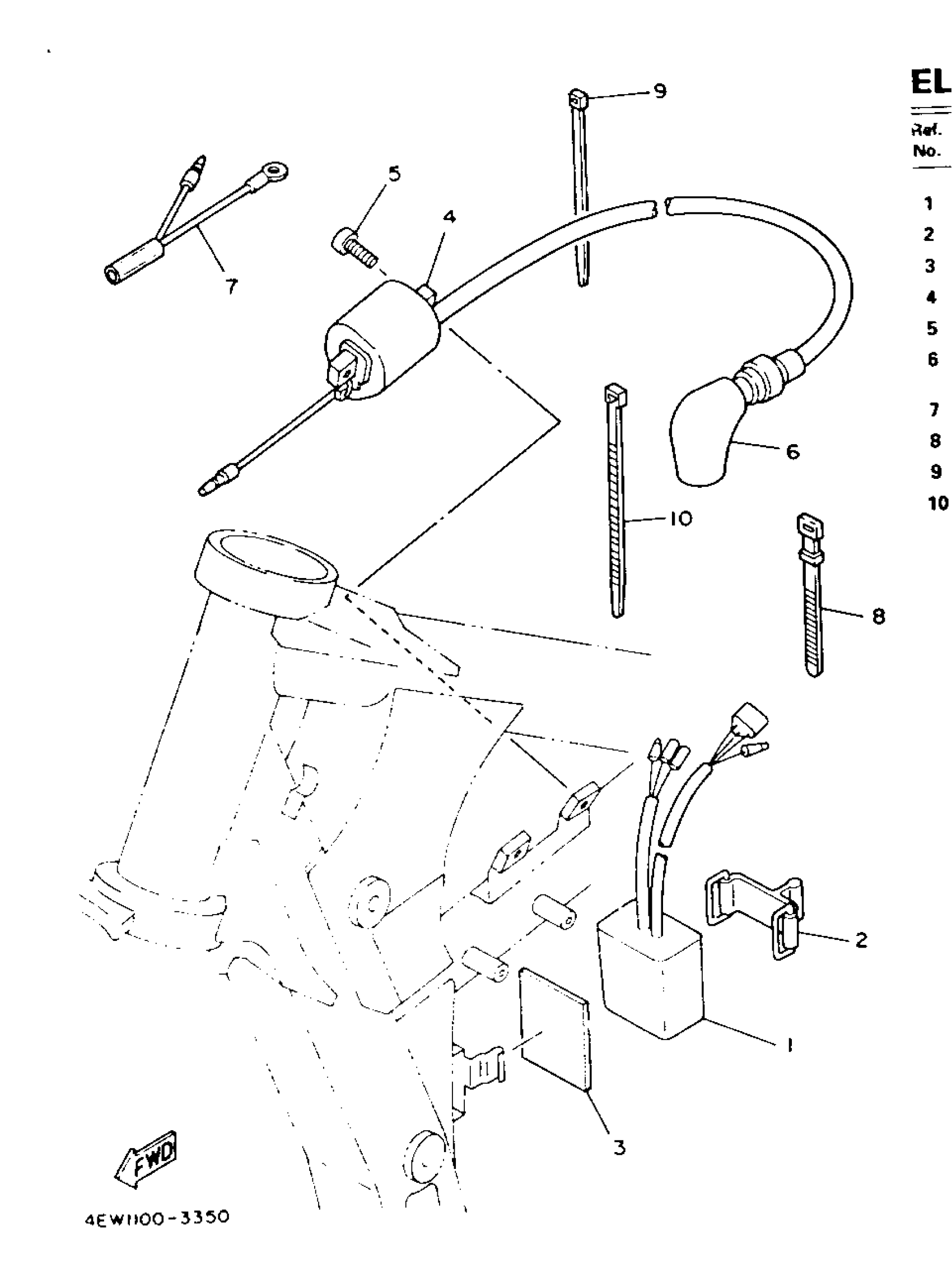

Find the part on the Electrical 1 diagram for your 1978 Yamaha YZ250E (YZ250E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha YZ250E (YZ250E) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. UNIT ASSEMBLY

4EW-85540-00-00

1
Out of stock

2

BAND, TOOL

5H9-21376-00-00

1
Out of stock

3

DAMPER

3RB-85547-01-00

1
Out of stock

4

IGNITION COIL ASSY

3SR-82310-10-00

1
Out of stock

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

6

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

7

WIRE, EARTH LEAD

5X1-82519-01-00

1
Out of stock

8

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

9

BAND

1UA-82591-00-00

1
Out of stock

10

BAND

1UA-82591-00-00

1
Out of stock
