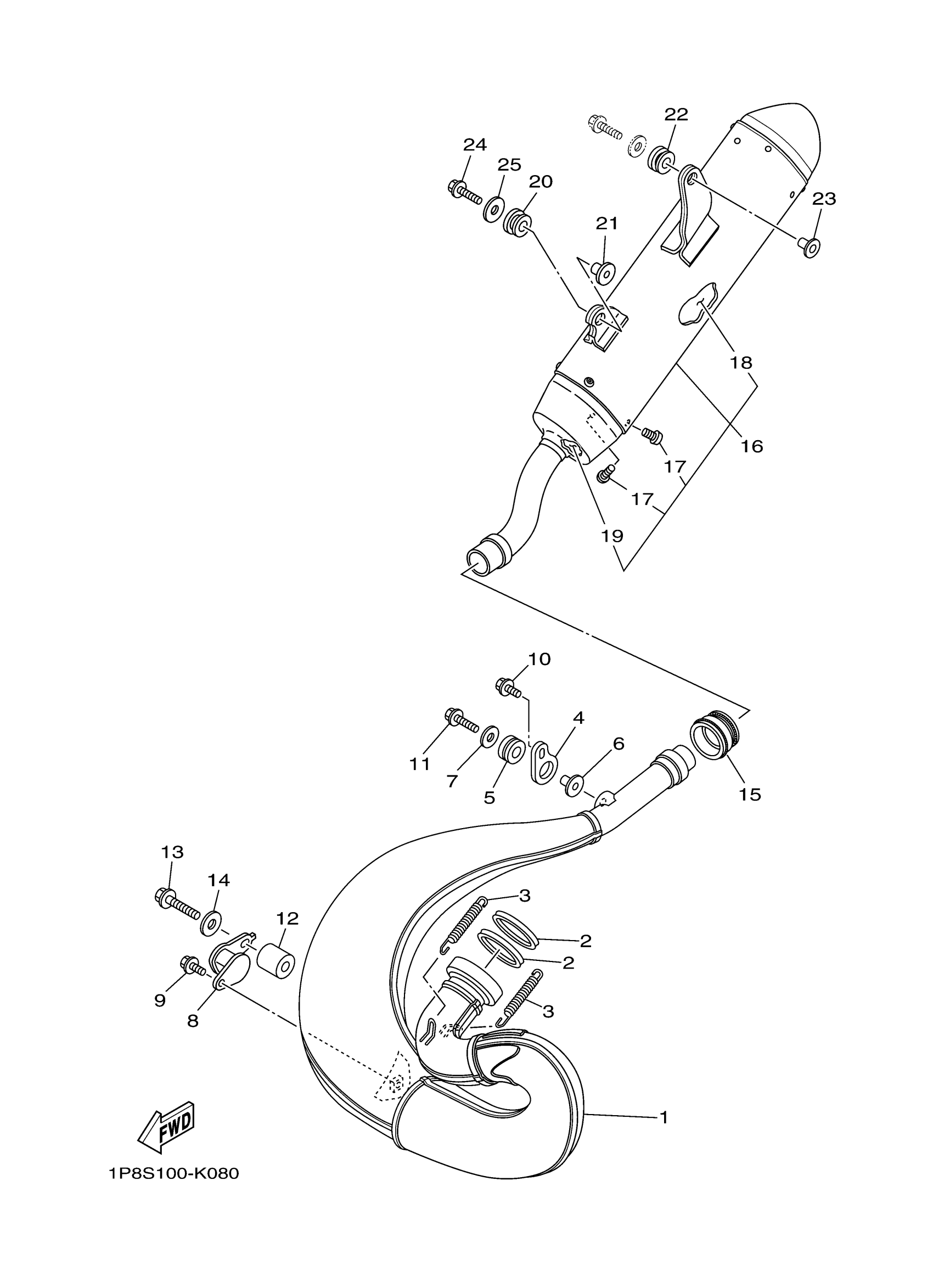

Yamaha YZ250D2 (YZ250) 1SS5 2013 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

1P8-14610-00-00

$506.94

2

SEAL, EXHAUST

5MW-14642-00-00

$14.81

3

SPRING, TENSION(3FV)

90507-20052-00

$3.92

4

STAY, MUFFLER 1

5CU-14771-01-00

$26.51

5

GROMMET(4EW)

90480-16561-00

$13.70

6

COLLAR(52E)

90387-063G3-00

$5.86

7

WASHER, PLATE

90201-06033-00

$2.56

8

STAY, MUFFLER 2

5XF-14781-01-00

$21.26

9

BOLT, WITH WASHER

90119-06133-00

$4.40

10

BOLT, WITH WASHER

90119-06133-00

$4.40

11

BOLT, FLANGE

95022-06025-00

$1.37

12

COLLAR

90387-08030-00

$8.11

13

BOLT, FLANGE

90105-08136-00

$5.75

14

WASHER, PLATE

90201-08049-00

$6.14

15

JOINT, EXHAUST 1

3JE-14615-01-00

$45.52

16

SILENCER, EXHAUST

1P8-14753-00-00

Unavailable

17

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

18

. FIBER

1P8-1469A-00-00

$196.44

19

FIBER

1P8-1469E-00-00

Unavailable

20

GROMMET

90480-17004-00

Unavailable

21

COLLAR

90387-06121-00

Unavailable

22

GROMMET(36Y)

90480-16404-00

Unavailable

23

COLLAR

90387-06039-00

Unavailable

24

BOLT, FLANGE

95022-06030-00

Unavailable

25

WASHER, PLATE

90201-06086-00

Unavailable
