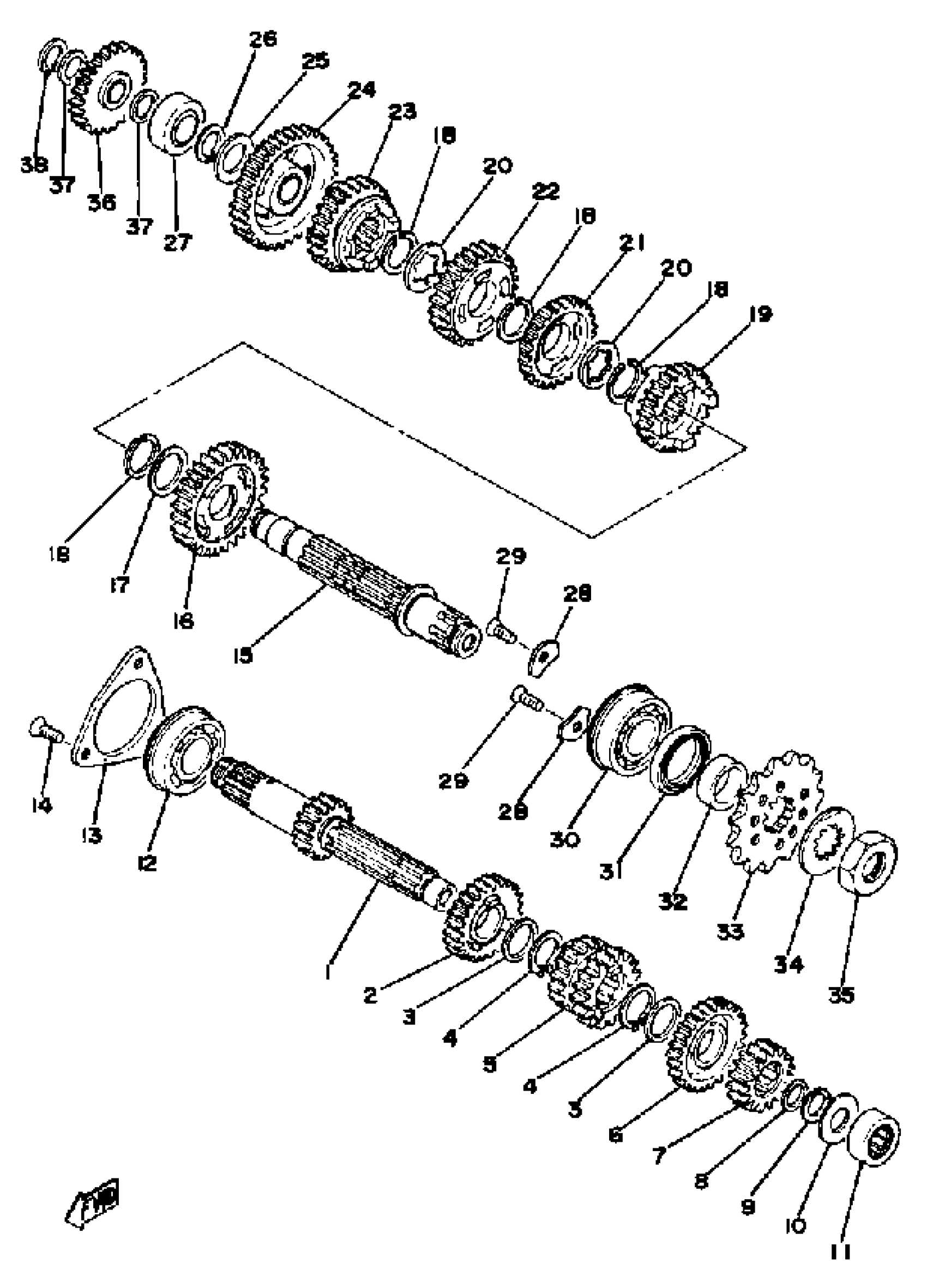

Yamaha YZ250C (YZ250C) 1976 TRANSMISSION YZ250E Diagram

#

Description
Price

1

AXLE, MAIN

(2K7-17411-00-00)

Unavailable

2

GEAR, 5TH PINION (22T)

2K7-17151-00-00

Unavailable

3

WASHER, PLATE (537)

90201-22555-00

$8.49

4

CIRCLIP (537)

93410-22039-00

$8.49

5

GEAR, 3RD PINION (18T/18T)

2K7-17131-00-00

Unavailable

6

GEAR, 6TH PINION

(2K7-17161-00-00)

Unavailable

7

GEAR, 2ND PINION (16T)

2K7-17121-00-00

Unavailable

8

WASHER, PLATE (2K7)

90201-17682-00

$1.75

9

CIRCLIP (2K7)

93440-17064-00

$8.49

10

WASHER PLATE 306155610000

90201-17257-00

$7.49

11

BRG,CYL-CAL ROLLER 41.5G KY

93311-41734-00

$73.99

12

BEARING (93306-20515)

93306-20535-00

Unavailable

13

PLATE,BRNG COVER

363-15383-00-00

Unavailable

14

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

15

AXLE, DRIVE

2K7-17421-00-00

Unavailable

16

GEAR, 2ND WHEEL (29T)

2K7-17221-01-00

Unavailable

17

WASHER, PLATE(59W)

90201-253K0-00

Unavailable

18

CIRCLIP (4L0)

93440-25084-00

Unavailable

19

GEAR, 6TH WHEEL

(2K7-17261-01-00)

Unavailable

20

WASHER 434172160000

90209-22082-00

Unavailable

21

GEAR, 4TH WHEEL (22T)

2K7-17241-00-00

Unavailable

22

GEAR, 3RD WHEEL (26T)

2K7-17231-00-00

Unavailable

23

GEAR, 5TH WHEEL (23T)

2K7-17251-00-00

Unavailable

24

GEAR, 1ST WHEEL

(2K7-17211-00-00)

Unavailable

25

WASHER PLATE 168171160000

90201-20278-00

Unavailable

26

CIRCLIP (525)

93410-20038-00

Unavailable

27

BEARING (2X7)

93311-62035-00

Unavailable

28

PLATE, BEARING COVER

4XM-15383-00-00

Unavailable

29

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

30

BRG,R-B 4205 52MM 185G KY

93304-20501-00

Unavailable

31

OIL SEAL (697)

93102-32M07-00

Unavailable

32

COLLAR (2K7)

90387-25663-00

Unavailable

33

SPROCKET, DRIVE (13T)(4RF)

93834-13206-00

Unavailable

33

SPROCKET, DRIVE

93834-14051-00

Unavailable

33

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

Unavailable

34

WASHER, LOCK (23X)

90215-21239-00

Unavailable

35

NUT (2K7)

90179-20255-00

Unavailable

36

GEAR, KICK IDLE

3R4-15651-00-00

Unavailable

37

WASHER, PLATE (525)

90201-17545-00

Unavailable

38

CIRCLIP(1EY)

99009-17400-00

Unavailable
