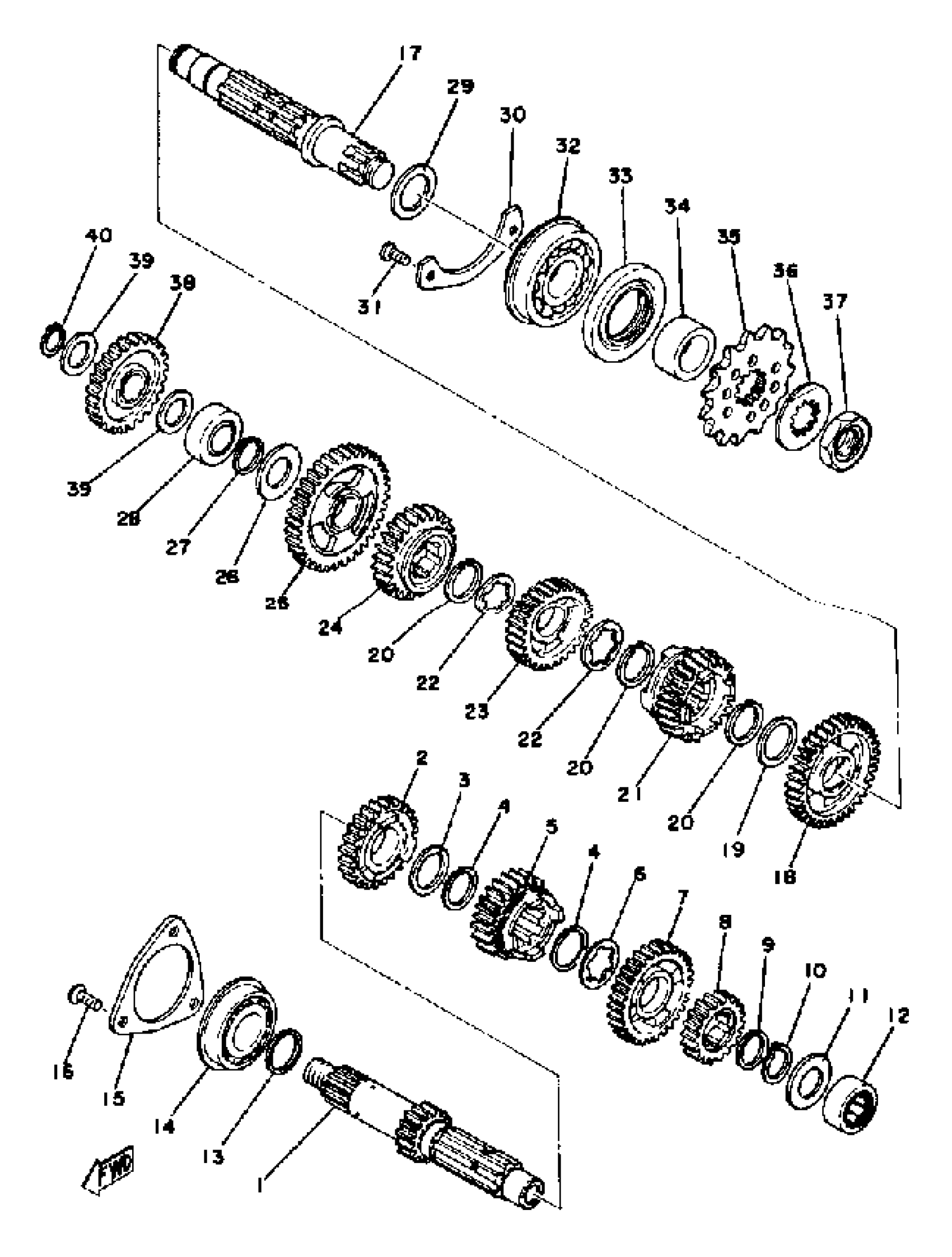

Yamaha YZ250C (YZ250C) 1976 TRANSMISSION YZ250D Diagram

#

Description
Price

1

AXLE, MAIN (15T)

1W3-17411-00-00

Unavailable

2

GEAR, 4TH PINION

1M1-17141-01-00

Unavailable

3

WASHER, PLATE(59W)

90201-253K0-00

$8.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 3RD PINION

(1W3-17131-00-00)

Unavailable

6

WASHER 434172160000

90209-22082-00

Unavailable

7

GEAR, 5TH PINION

(1W3-17151-00-00)

Unavailable

8

GEAR, 2ND PINION

(1W3-17121-00-00)

Unavailable

9

WASHER, PLATE

90201-20613-00

Unavailable

10

CIRCLIP (525)

93410-20038-00

$3.76

11

WASHER PLATE 168171160000

90201-20278-00

$10.49

12

BEARING (2X7)

93311-62035-00

$57.99

13

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

13

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

14

BEARING (93306-20515)

93306-20535-00

Unavailable

15

PLATE,BRNG COVER

363-15383-00-00

Unavailable

16

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

17

AXLE, DRIVE

1M2-17421-00-00

Unavailable

18

GEAR, 2ND WHEEL

(1W3-17221-00-00)

Unavailable

19

WASHER, PLATE(59W)

90201-253K0-00

$8.49

20

CIRCLIP (4L0)

93440-25084-00

$5.60

21

GEAR, 5TH WHEEL

(1W3-17251-00-00)

Unavailable

22

WASHER 434172160000

90209-22082-00

Unavailable

23

GEAR, 3RD WHEEL

(1W3-17231-00-00)

Unavailable

24

GEAR, 4TH WHEEL

1M1-17241-01-00

Unavailable

25

GEAR, 1ST WHEEL

(1W3-17211-00-00)

Unavailable

26

WASHER PLATE 168171160000

90201-20278-00

$10.49

27

CIRCLIP (525)

93410-20038-00

$3.76

28

BEARING (2X7)

93311-62035-00

$57.99

29

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

29

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

30

PLATE, BRNG COVER

509-15381-00-00

Unavailable

31

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

32

BRG,R-B 6305 62MM 232.35G NT

93306-30517-00

Unavailable

33

OIL SEAL (35X62X6-371)

93102-35109-00

Unavailable

34

COLLAR(1AE)

90387-253M9-00

Unavailable

35

SPROCKET, DRIVE (13T)(4RF)

93834-13206-00

Unavailable

35

SPROCKET, DRIVE

93834-14051-00

Unavailable

35

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

Unavailable

36

WASHER, LOCK (23X)

90215-21239-00

Unavailable

37

NUT 152174630000

90179-18020-00

Unavailable

38

GEAR, KICK IDLE

(1W4-15651-00-00)

Unavailable

39

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

40

CIRCLIP(1EY)

99009-17400-00

Unavailable
