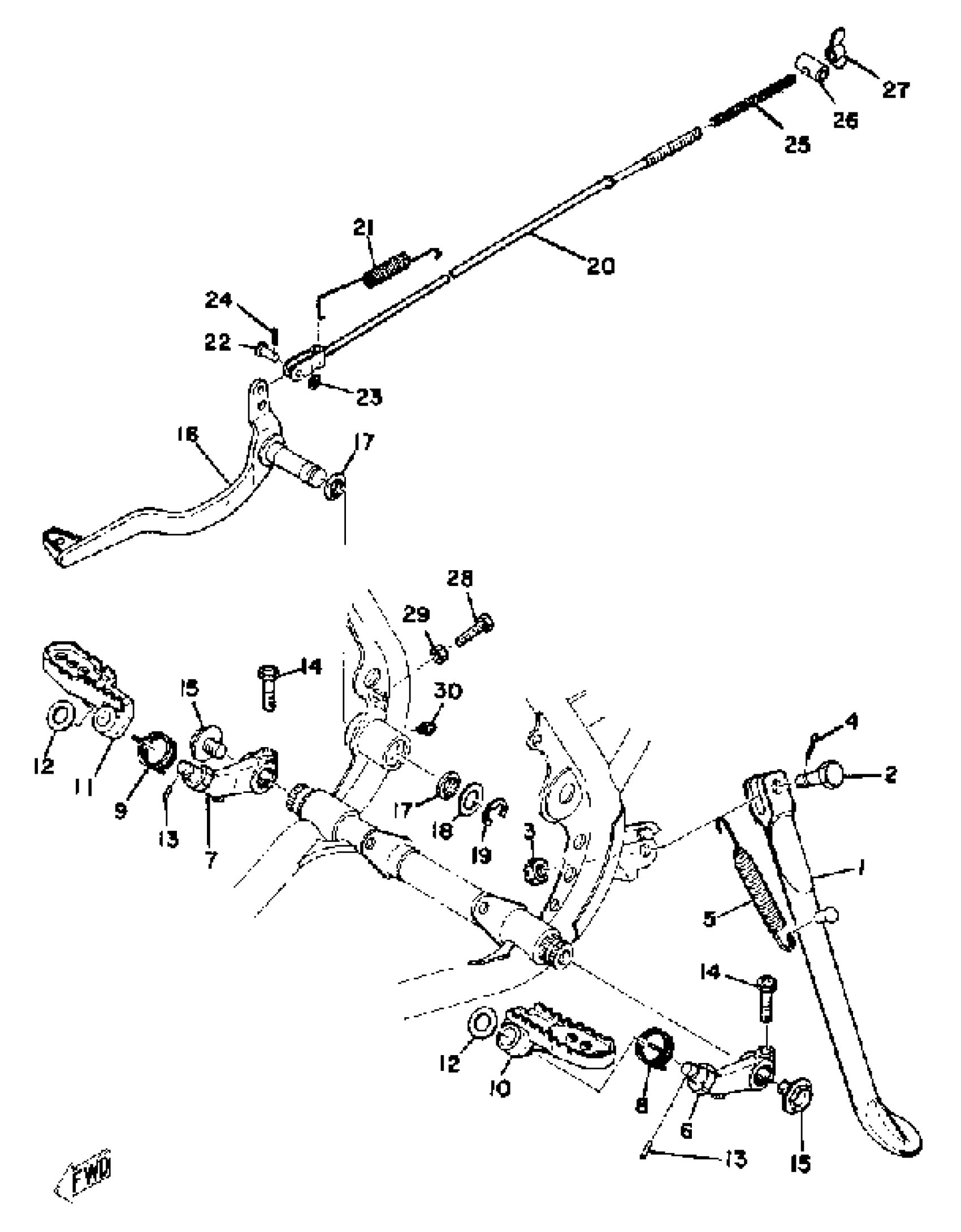

Yamaha YZ250C (YZ250C) 1976 STAND-FOOTREST-BRAKE PEDAL YZ250C Diagram

#

Description
Price

1

STAND, SIDE

214-27311-01-00

Unavailable

2

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

3

NUT, CASTLE

95307-10900-00

Unavailable

4

PIN, COTTER

91490-20025-00

$1.99

5

SPRING, TENSION (1L9)

90506-26270-00

$15.99

6

BRACKET, FOOTREST 1

483-27412-02-00

Unavailable

7

BRACKET, FOOTREST 2

483-27422-02-00

Unavailable

8

SPRING, TORSION (322-27426-00)

90508-26226-00

Unavailable

9

SPRING, TORSION (322-27456-00)

90508-26227-00

Unavailable

10

FOOTREST 1

(431-27411-01-00)

Unavailable

11

FOOTREST 2

431-27421-01-00

Unavailable

12

WASHER, PLAIN 2562171501

90201-10123-00

$7.49

13

PIN, SPRING

91690-30016-00

Unavailable

14

BOLT, HEXAGON

97017-08025-00

$10.49

15

BOLT,HEXAGON

97017-10016-00

Unavailable

16

PEDAL, BRAKE

(509-27211-01-33)

Unavailable

17

OIL SEAL, SO-TYPE

93104-15005-00

Unavailable

18

WASHER (3XVC)

90201-153A1-00

Unavailable

19

. CIRCLIP

99001-12600-00

Unavailable

20

ROD, BRAKE

483-27231-00-00

Unavailable

21

SPRING, TENSION

90506-20128-00

Unavailable

22

PIN, CLEVIS (24X)

90240-06103-00

Unavailable

23

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

24

PIN, COTTER

91490-20025-00

$1.99

25

SPRING, (180-27236-00)

90501-10245-00

Unavailable

26

PIN 1562723700

90249-12008-00

Unavailable

27

NUT (25K)

90179-06411-00

Unavailable

28

BOLT, HEXAGON

97017-06025-00

Unavailable

29

NUT(650)

95380-06700-00

Unavailable

30

NIPPLE, GREASE

93700-06M03-00

Unavailable
