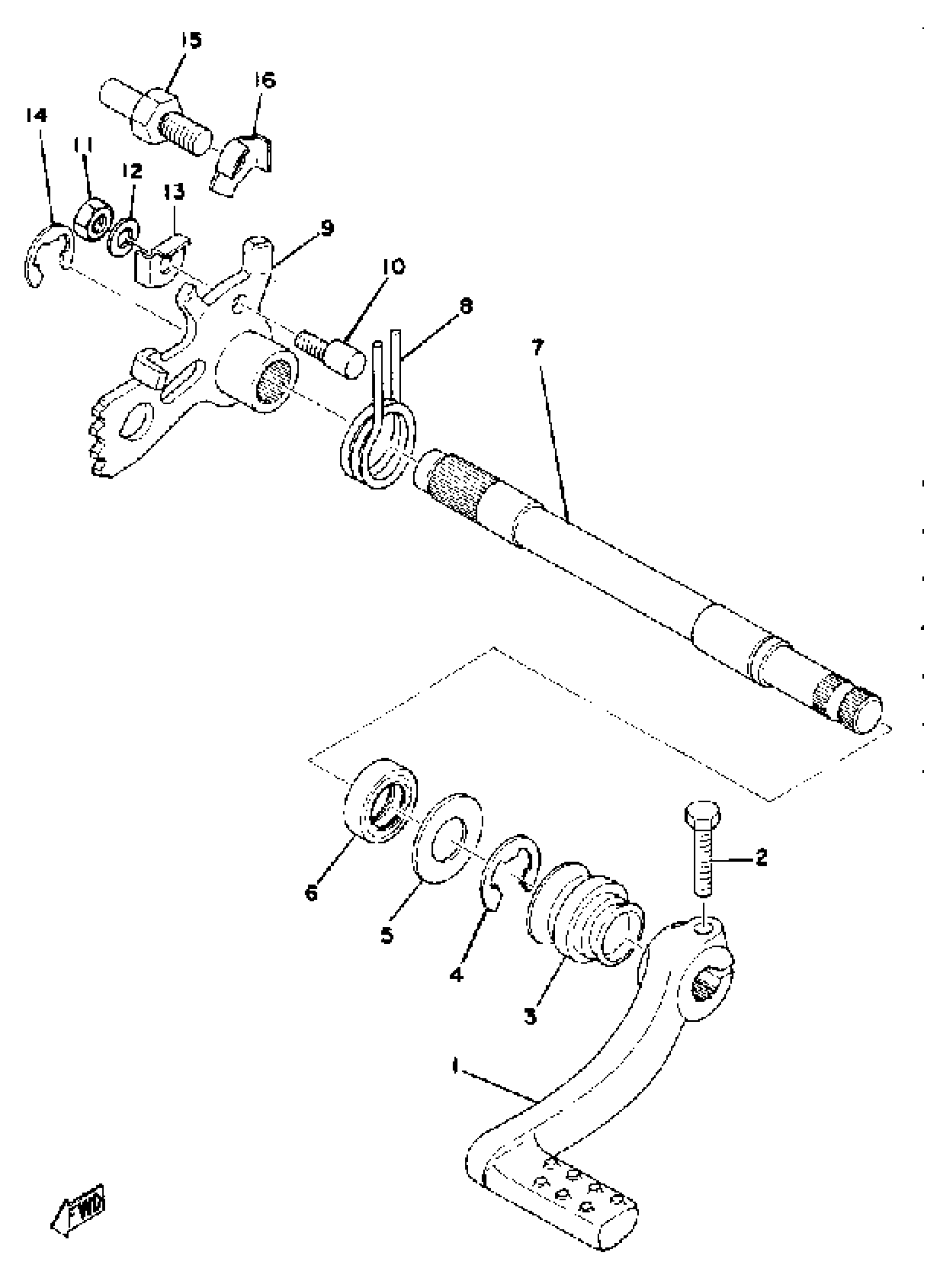

Yamaha YZ250C (YZ250C) 1976 SHIFT SHAFT YZ250C Diagram

#

Description
Price

1

SHIFT PEDAL ASSEMBLY (509-18111-01)

5X4-18110-01-00

Unavailable

2

BOLT, HEXAGON

97017-06025-00

$4.24

3

BOOT

214-18131-00-00

Unavailable

4

. CIRCLIP

99001-12600-00

Unavailable

5

WASHER PLATE 248181370000

90201-14220-00

$8.49

6

OIL SEAL (14X24X6-256)

93109-14010-00

$13.49

7

SHAFT, CHANGE

363-18125-00-00

Unavailable

8

SPRING, TORSION

(90508-32265-00)

Unavailable

9

LEVER, CHANGE 1

434-18121-00-00

Unavailable

10

SCREW 214181860000

90149-06017-00

$7.49

11

NUT, HEXAGON

95380-06600-00

Unavailable

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, LOCK

90215-06016-00

$3.50

14

CIRCLIP

99006-10600-00

$9.49

15

STOPPER, SCREW

278-18127-01-00

$17.49

16

WASHER

90215-08015-00

Unavailable
