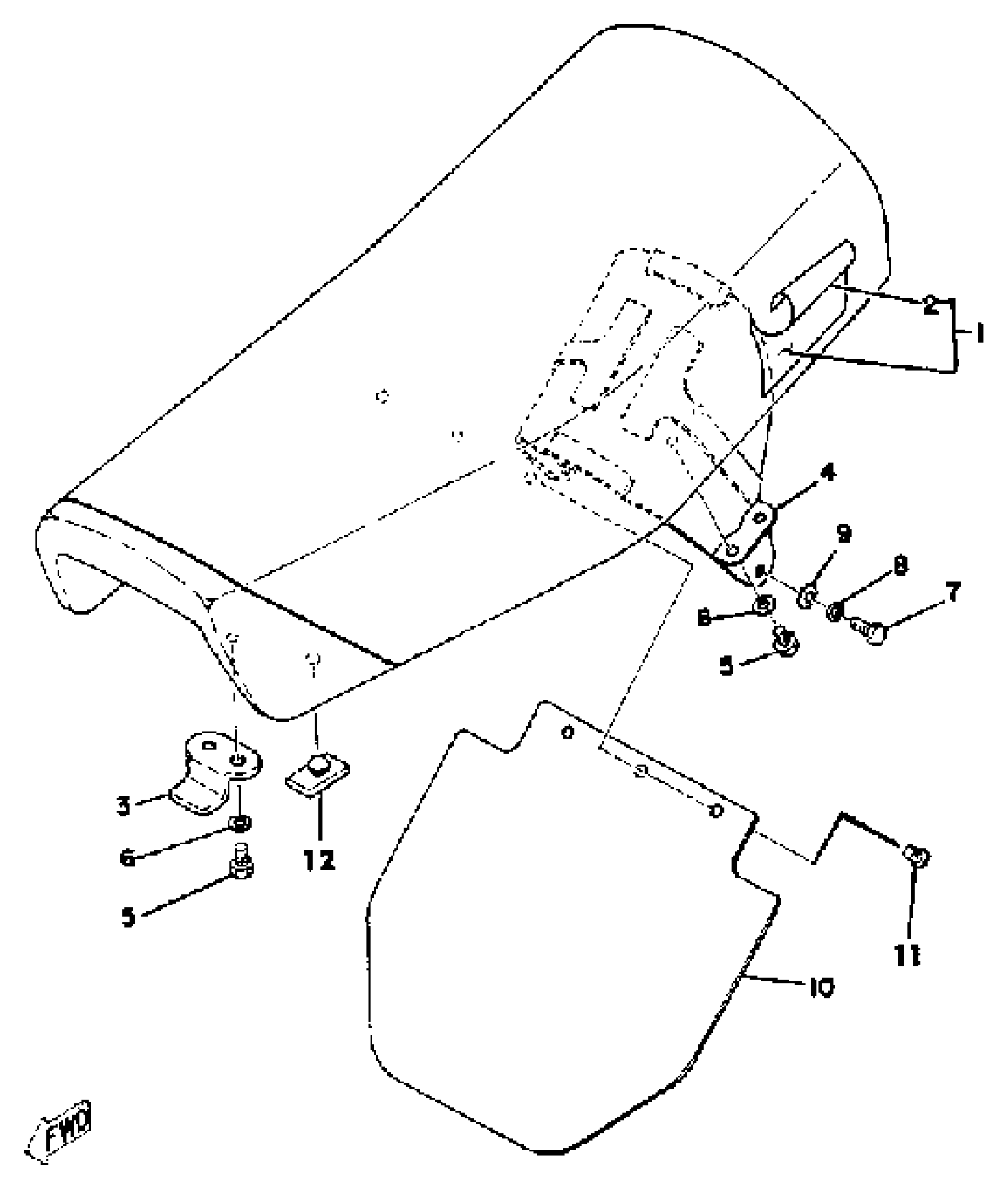

Yamaha YZ250C (YZ250C) 1976 SEAT YZ250C Diagram

#

Description
Price

1

SEMI-DBL SEAT ASSEMBLY

(509-24770-11-00)

Unavailable

2

COVER, SM-DBL SEAT

(509-24771-10-00)

Unavailable

3

BRACKET, SEAT

2Y0-24748-00-00

Unavailable

4

BRACKET, SEAT

(509-24738-02-00)

Unavailable

5

BOLT (661)

97013-06012-00

$5.60

6

WASHER, SPRING

92995-06100-00

Unavailable

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

FLAP

(483-21621-00-00)

Unavailable

11

SCREW, BIND(J45)

98980-06012-00

$8.49

12

DAMPER, SEAT

509-24724-00-00

$10.99
