REAR WHEEL YZ250D - E

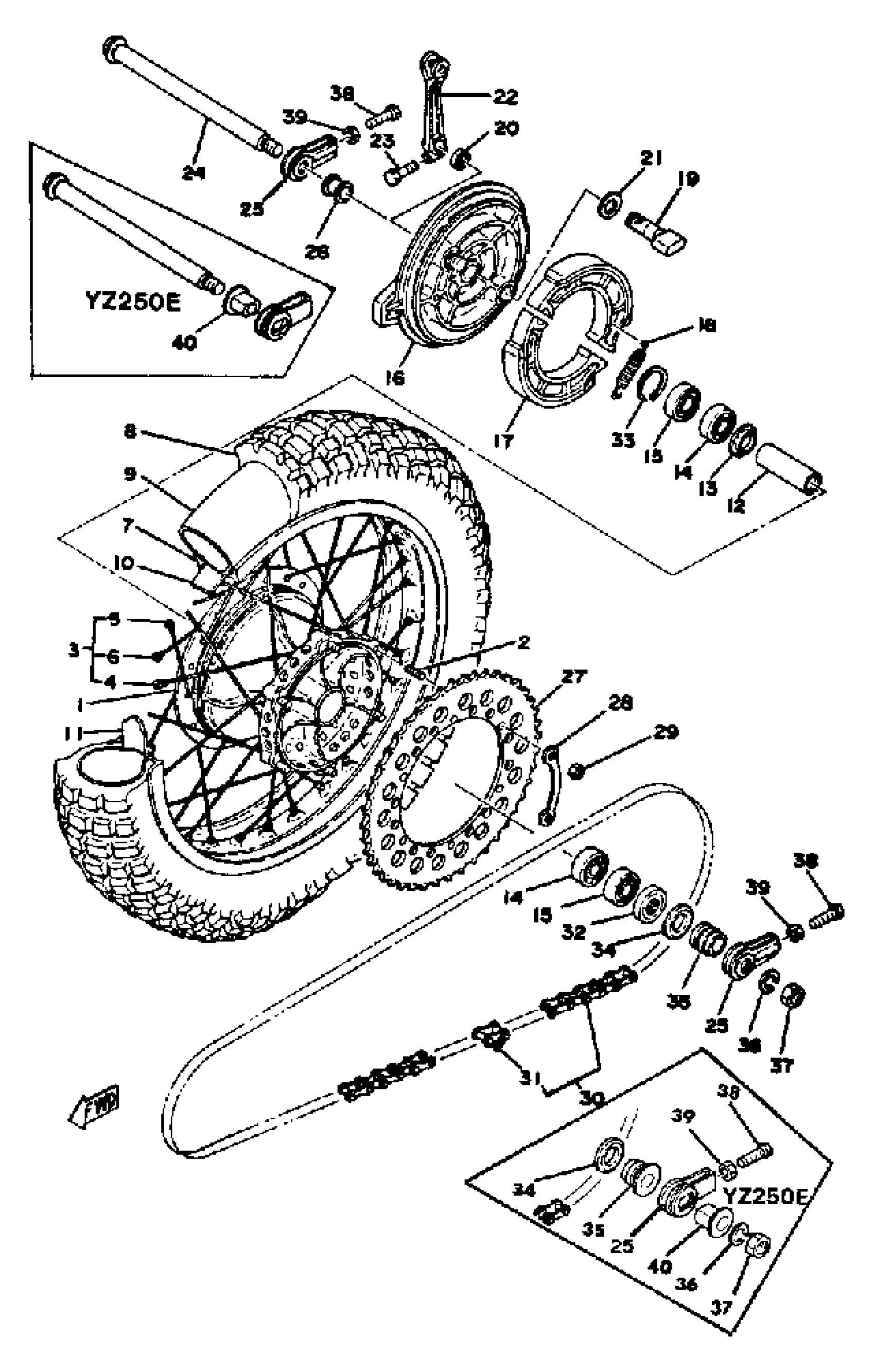

Yamaha YZ250C (YZ250C) 1976 REAR WHEEL YZ250D - E Diagram
#
1
HUB, REAR
(483-25311-13-98)
Unavailable
1
HUB, REAR
(483-25311-13-98)
Unavailable
3
SPOKE SET, REAR (431-25304-00)
431-25304-01-00
Unavailable
4
SPOKE SET, INNER 2
(431-25396-90-00)
Unavailable
5
SPOKE SET, INNER 1
(431-25391-90-00)
Unavailable
6
SPOKE SET, OUTER 1
(431-25392-90-00)
Unavailable
7
RIM 2.15X18 (94421-18151) (2.15-18)
94421-18238-00
Unavailable
8
150/80-18 M2A (TT) (94151-18684) (4.50-18-4PR)
94115-186A2-00
Unavailable
9
TUBE
94245-18125-00
Unavailable
11
SPACER,BEAD
1T1-25394-01-00
Unavailable
12
SPACER, BEARING
483-25317-01-00
Unavailable
13
FLANGE, SPACER
483-25315-00-00
Unavailable
14
BRG,R-B 6203RS 40MM 63.3G KY
93306-20310-00
Unavailable
15
BRG,R-B 6203RS 40MM 63.3G KY
93306-20310-00
Unavailable
16
PLATE, BRAKE SHOE
1W4-25321-00-98
Unavailable
17
BRAKE SHOE KIT
4GR-W253E-00-00
Unavailable
18
SPRING, TENSION 2462533300
90507-20002-00
Unavailable
19
CAMSHAFT
1E6-25151-00-00
Unavailable
20
SEAL, CAM SHAFT
148-25359-00-00
Unavailable
21
SHIM, CAM SHAFT
148-25353-00-00
Unavailable
22
. LEVER, CAMSHAFT (168-25355-00)
4V5-25355-00-00
Unavailable
23
BOLT, HEXAGON (462)
90101-06291-00
Unavailable
24
AXLE, WHEEL
2K8-25381-00-00
Unavailable
24
AXLE, WHEEL
(431-25381-00-00)
Unavailable
25
PULLER, CHAIN 1
2K8-25388-00-00
Unavailable
25
PULLER, CHAIN 1
431-25388-00-00
Unavailable
26
COLLAR
90387-17215-00
Unavailable
26
COLLAR
(90387-17651-00)
Unavailable
27
SPROCKET, DRIVN 48T
(431-25448-04-XX)
Unavailable
27
SPROCKET, DRIVN 50TSPROCKET WHEEL (50T)
431-25450-04-XX
Unavailable
27
SPROCKET, DRIVN 52T
(431-25452-04-XX)
Unavailable
27
SPROCKET, DRIVN 54TSPROCKET WHEEL (54T)
431-25454-04-XX
Unavailable
28
WASHER
2XJ-25412-00-00
Unavailable
29
NUT (583)
90170-08193-00
Unavailable
30
520 DS 108L (520DS-108L)
94585-20108-00
Unavailable
30
CHAIN 520DS-104L
9Y585-20103-00
Unavailable
31
. JOINT CHAIN
94680-11001-00
Unavailable
32
OIL SEAL (25X40X8-248)
93102-25061-00
Unavailable
33
CIRCLIP, INNER
(93450-41050-00)
Unavailable
34
COVER, HUB DUST
431-25367-00-00
Unavailable
35
COLLAR
90387-17555-00
Unavailable
35
COLLAR
90387-17650-00
Unavailable
36
WASHER(JN5)
92907-16100-00
Unavailable
37
NUT, HEXAGON
90170-16177-00
Unavailable
38
BOLT
90101-08060-00
Unavailable
39
. NUT
95380-08700-00
Unavailable
40
BUSH, SOLID
90381-17027-00
Unavailable
