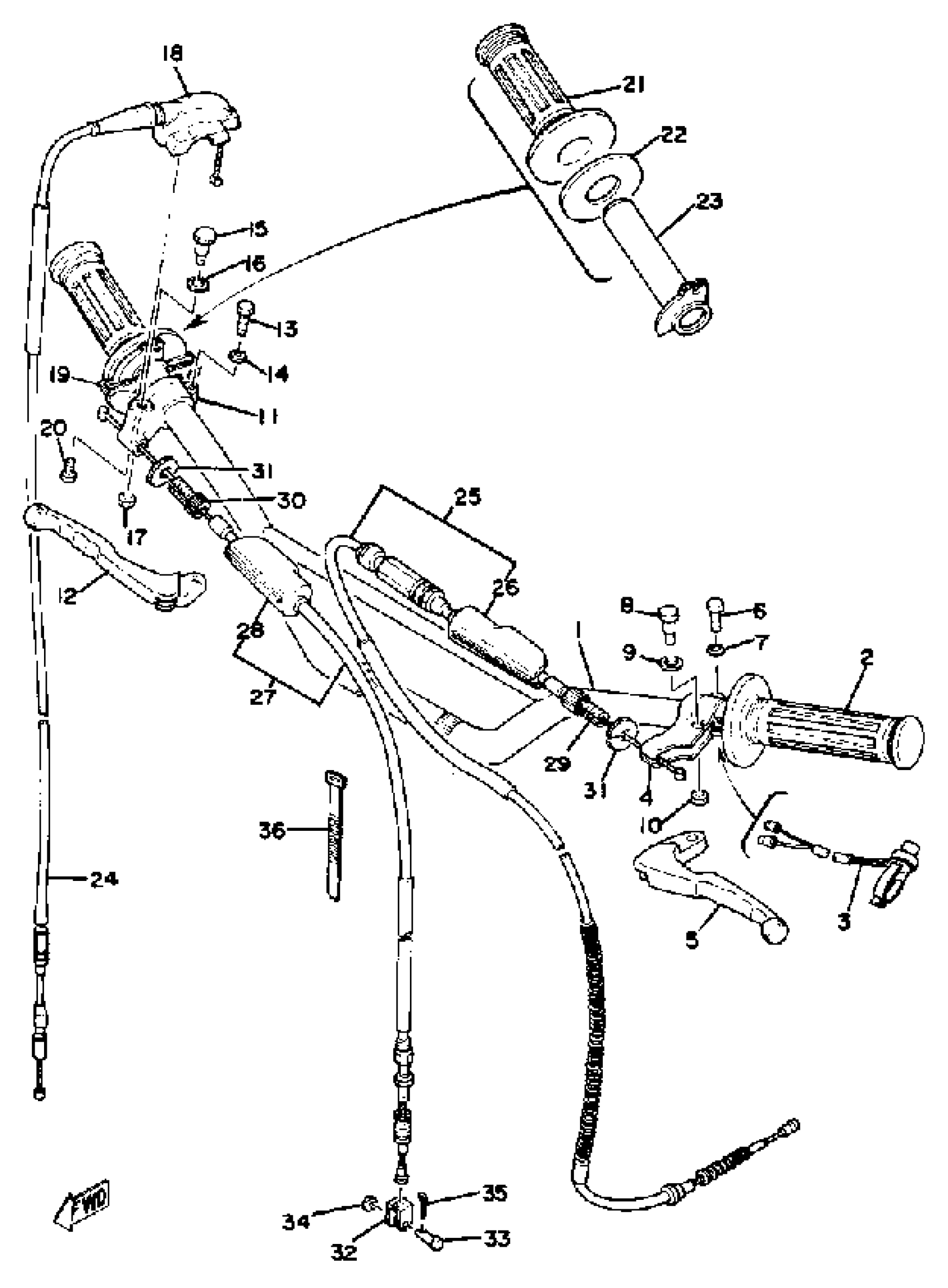

Yamaha YZ250C (YZ250C) 1976 HANDLEBAR-CABLE YZ250E Diagram

#

Description
Price

1

HANDLE

2A8-26111-00-00

$129.99

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

3

SWITCH, HANDLE 1

23X-83976-01-00

Unavailable

4

HOLDER, LEVER (L.H)

214-82911-01-00

$56.99

5

LEVER 1

23X-83912-02-00

$27.99

6

BOLT, HEXAGON

97013-06022-00

$0.90

7

WASHER, SPRING

92995-06100-00

Unavailable

8

BOLT(3GB)

90109-061F3-00

$7.49

9

WASHER, PLATE 1562722600

90201-08083-00

$9.49

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

HOLDER, LEVER 2

516-82921-30-00

Unavailable

12

LEVER R

23X-83922-01-00

$27.99

13

BOLT, HEXAGON

97013-06022-00

$0.90

14

WASHER, SPRING

92995-06100-00

Unavailable

15

BOLT(3GB)

90109-061F3-00

$7.49

16

WASHER, PLATE 1562722600

90201-08083-00

$9.49

17

NUT, SELF-LOCKING

95617-06100-00

$8.49

18

CAP, GRIP UPPER (431-26281-01)

431-26281-01-98

Unavailable

19

CAP, GRIP UNDER

431-26282-03-00

Unavailable

20

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

21

GRIP (R.H)

583-26242-00-00

Unavailable

22

RING, LEAF

1W1-26249-00-00

Unavailable

23

TUBE, THRTL GUIDE

431-26243-00-00

Unavailable

24

WIRE, THROTTLE

2K8-26311-01-00

Unavailable

25

CABLE, CLUTCH (1150MM)

2K7-26335-00-00

Unavailable

26

COVER, LEVER

498-26372-00-00

Unavailable

27

CABLE, BRAKE (1230MM)

1W4-26341-02-00

Unavailable

28

COVER, LEVER

498-26372-00-00

Unavailable

29

BOLT

90123-08002-00

Unavailable

30

BOLT

90123-08002-00

Unavailable

31

NUT

90179-08030-00

Unavailable

32

JOINT, WIRE

156-26347-00-00

Unavailable

33

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

34

WASHER, PLATE 1562722600

90201-08083-00

$9.49

35

PIN, COTTER

91490-20025-00

Unavailable

36

BAND, SWITCH CORD

437-83936-01-00

Unavailable
