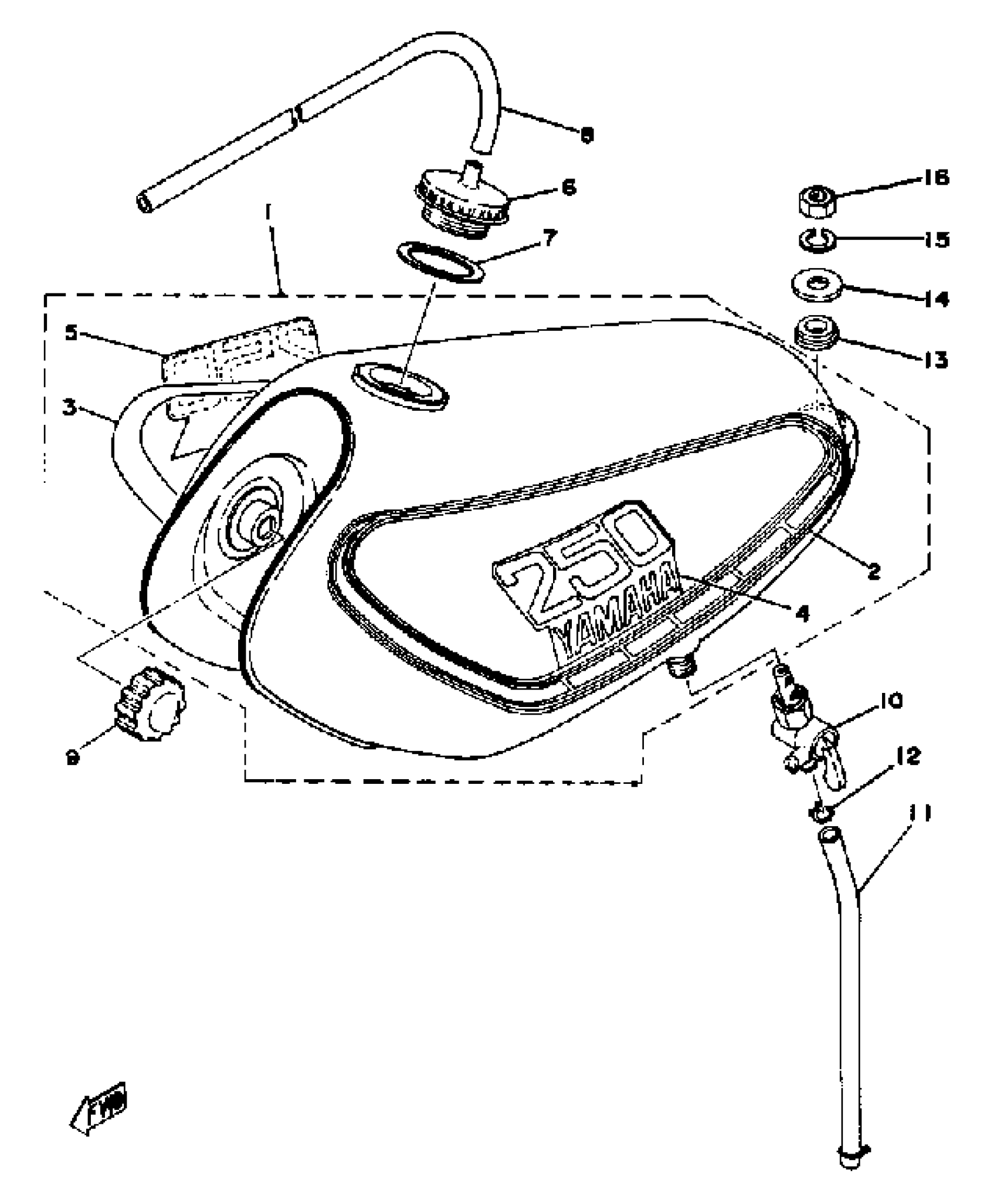

Yamaha YZ250C (YZ250C) 1976 FUEL TANK YZ250C Diagram

#

Description
Price

1

FUEL TANK

(509-24110-02-04)

Unavailable

2

GRAPHIC, FUEL TNK 1

(509-24244-01-00)

Unavailable

3

GRAPHIC, FUEL TNK 2

(509-24245-01-00)

Unavailable

4

EMBLEM 1

(509-24161-00-00)

Unavailable

5

EMBLEM 2

(509-24162-00-00)

Unavailable

6

BODY, CAP

322-24611-02-00

$57.99

7

GASKET (583 FUEL TANK CAP)

90430-35122-00

Unavailable

8

HOSE (L1500)

90445-090F6-00

$31.99

9

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

10

FUEL COCK ASSY

322-24500-02-00

$92.99

11

HOSE

90445-11149-00

Unavailable

12

CLIP

90467-100A1-00

$7.49

13

GROMMET

(90480-25189-00)

Unavailable

14

WASHER, SPECIAL SHAPE

(90209-10101-00)

Unavailable

15

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

16

BOLT,HEXAGON

97017-10016-00

Unavailable
