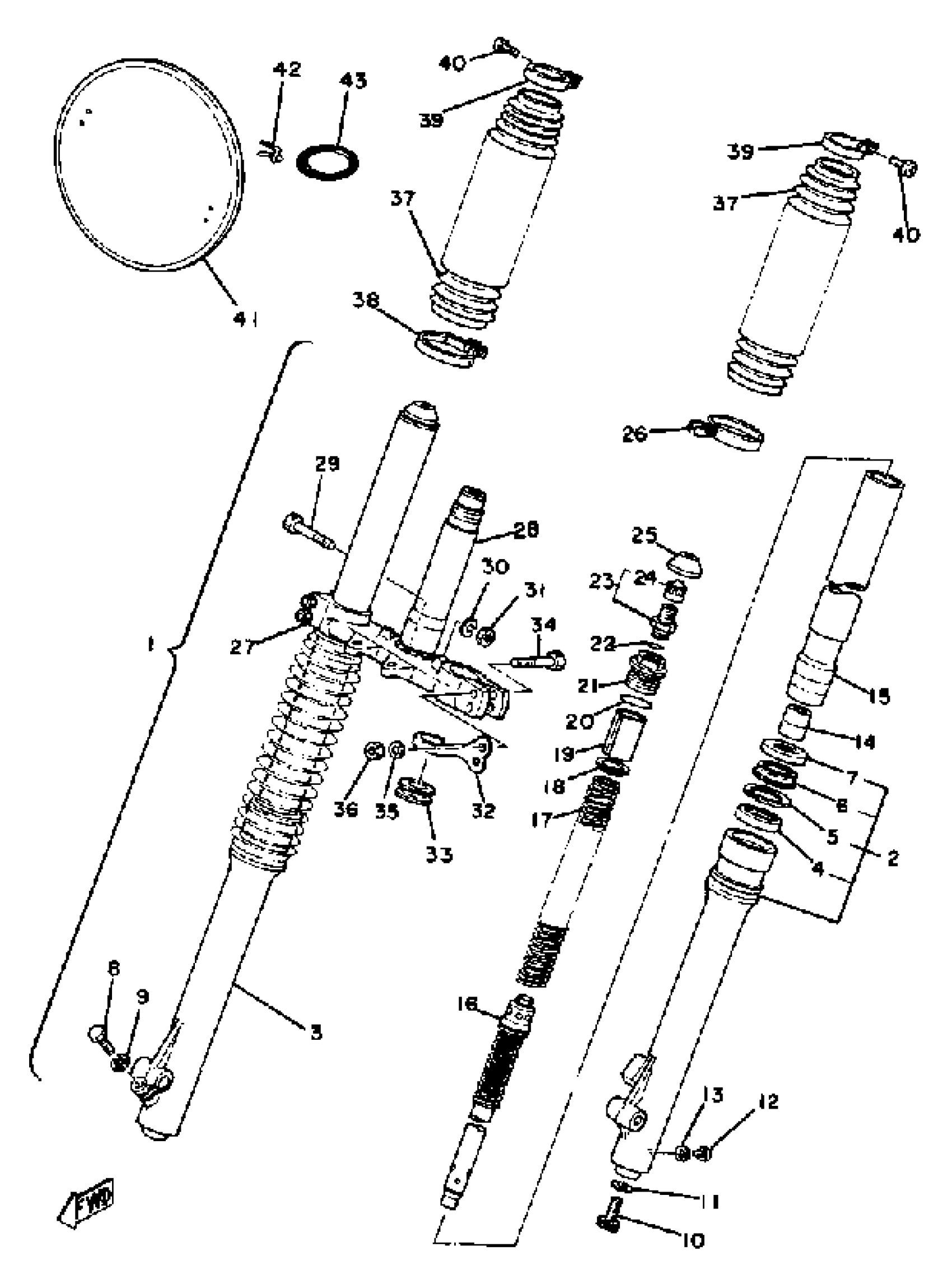

Yamaha YZ250C (YZ250C) 1976 FRONT FORK YZ250E Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(2K8-23101-L0-00)

Unavailable

2

TUBE, OUTER 1

(2K8-23126-L0-00)

Unavailable

3

TUBE, OUTER 2

(2K8-23136-L0-00)

Unavailable

4

.. UNAVAILABLE IN PRICE BOOK (1W4-23145-L0)

42H-23145-L0-00

Unavailable

5

CLIP, OIL SEAL

(1W4-23156-L0-00)

Unavailable

6

.. SEAL, DUST

1W4-23144-L0-00

Unavailable

7

.. COVER, DUST SEAL

1W4-23148-L0-00

Unavailable

8

BOLT, AXLE HOLDER

(1W4-23128-L0-00)

Unavailable

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

BOLT, HEX SCKT HEAD

(2K8-23181-L0-00)

Unavailable

11

GASKET

2K8-23158-L0-00

$15.49

12

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

13

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

14

SPINDLE, TAPER

(3R4-23173-L0-00)

Unavailable

15

INNER TUBE 1

(2K8-23110-L0-00)

Unavailable

16

CYLINDER, FRTFRK

(2K8-23170-L0-00)

Unavailable

17

SPRING, FRONT FORK

(1W4-23141-L0-00)

Unavailable

18

. SEAT, SPRING UPPER

1W4-23142-L0-00

Unavailable

19

SPACER

(1W4-23118-L0-00)

Unavailable

20

O-RING

1W4-23114-L0-00

Unavailable

21

. BOLT, CAP

1W4-23111-L1-00

Unavailable

22

. O-RING

509-23163-L0-00

Unavailable

23

. AIR VALVE

509-23190-L0-00

Unavailable

24

CAP, AIR VALVE

509-23184-L0-00

Unavailable

25

. COVER, VALVE

1W1-23185-L0-00

Unavailable

26

HOLDER, CABLE 1

(1W4-23318-L1-00)

Unavailable

27

BRACKET, LOWER

(1W4-23345-L1-33)

Unavailable

28

SHAFT, STEERING

(1W1-23341-L0-00)

Unavailable

29

BOLT 2

(1W1-23356-L0-00)

Unavailable

30

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

31

NUT

(322-23357-00-00)

Unavailable

32

. HOLDER, CABLE

1W1-23317-01-00

Unavailable

33

GUIDE, WIRE

1W1-23389-00-00

Unavailable

34

BOLT (1E6)

90101-08340-00

Unavailable

35

.. WASHER, PLATE

92990-08600-00

Unavailable

36

NUT(6L2)

95333-08600-00

Unavailable

37

BOOT, FRONT FORK

2K8-23191-L0-00

Unavailable

38

BAND

1W4-23489-L0-00

Unavailable

39

BAND, BOOT

341-92090-60-00

Unavailable

40

SCREW

509-23194-L0-00

Unavailable

41

. BAND

2X4-23489-00-00

Unavailable

41

. PLATE, NUMBER

3R0-23485-00-00

Unavailable

41

HOSE

(90446-09158-00)

Unavailable

41

PLATE NUMBER

(99999-01016-00)

Unavailable

42

STAY, PLATE

431-23486-02-00

Unavailable

43

SPRING, FRONT FORK

(1W4-23141-10-00)

Unavailable

43

SPRING, FRONT FORK

(1W4-23141-20-00)

Unavailable

43

O-RING (3.0-69.0)

93210-69355-00

Unavailable
