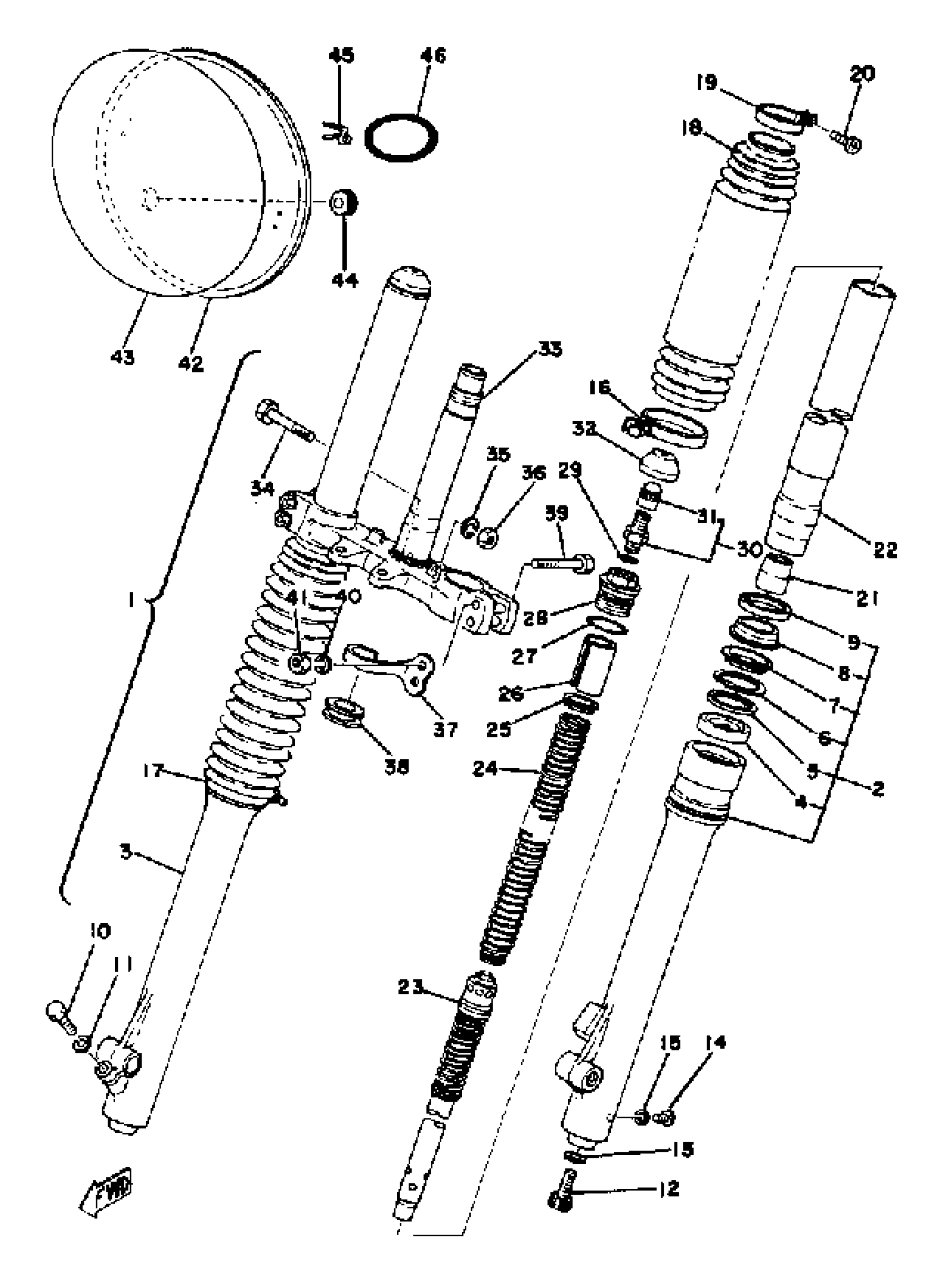

Yamaha YZ250C (YZ250C) 1976 FRONT FORK YZ250D Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(2K8-23101-L0-00)

Unavailable

2

TUBE, OUTER 1

(1W4-23126-L0-00)

Unavailable

3

TUBE, OUTER 2

(1W4-23136-L0-00)

Unavailable

4

.. UNAVAILABLE IN PRICE BOOK (1W4-23145-L0)

42H-23145-L0-00

Unavailable

5

WASHER, OIL SEAL

(1W4-23146-L0-00)

Unavailable

6

CLIP, OIL SEAL

(1W4-23156-L0-00)

Unavailable

7

RING, SNAP

(1W4-23153-L0-00)

Unavailable

8

.. SEAL, DUST

1W4-23144-L0-00

Unavailable

9

.. COVER, DUST SEAL

1W4-23148-L0-00

Unavailable

10

BOLT, AXLE HOLDER

(1W4-23128-L0-00)

Unavailable

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

. BOLT, HEX SCKT HEAD

1T3-23181-50-00

Unavailable

13

GASKET

509-23158-L0-00

$16.49

14

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

15

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

16

HOLDER, CABLE 1

(1W4-23318-L1-00)

Unavailable

17

BAND

509-23489-L0-00

Unavailable

18

. BOOT, FRONT FORK

1W4-23191-L0-00

Unavailable

19

BAND, BOOT

341-92090-60-00

Unavailable

20

SCREW

509-23194-L0-00

Unavailable

21

SPINDLE, TAPER

(1W4-23173-L0-00)

Unavailable

22

INNER TUBE 1

(2K8-23110-L0-00)

Unavailable

23

CYLINDER, FRTFRK

(1W4-23170-L0-00)

Unavailable

24

SPRING, FRONT FORK

(1W4-23141-L0-00)

Unavailable

25

. SEAT, SPRING UPPER

1W4-23142-L0-00

Unavailable

26

SPACER

(1W4-23118-L0-00)

Unavailable

27

O-RING

1W4-23114-L0-00

Unavailable

28

. BOLT, CAP

1W4-23111-L1-00

Unavailable

29

. O-RING

509-23163-L0-00

Unavailable

30

. AIR VALVE

509-23190-L0-00

Unavailable

31

CAP, AIR VALVE

509-23184-L0-00

Unavailable

32

. COVER, VALVE

1W1-23185-L0-00

Unavailable

33

BRACKET, LOWER

(1W4-23345-L1-33)

Unavailable

34

BOLT 2

(1W1-23356-L0-00)

Unavailable

35

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

36

NUT

(322-23357-00-00)

Unavailable

37

. HOLDER, CABLE

1W1-23317-01-00

Unavailable

38

GUIDE, WIRE

1W1-23389-00-00

Unavailable

39

BOLT (1E6)

90101-08340-00

Unavailable

40

.. WASHER, PLATE

92990-08600-00

Unavailable

41

NUT, HEXAGON

(90170-08180-00)

Unavailable

42

PLATE, NUMBER

322-23485-00-00

Unavailable

43

EMBLEM

322-23395-00-00

Unavailable

44

GROMMET (1W1)

90480-17213-00

Unavailable

45

STAY, PLATE

431-23486-02-00

Unavailable

46

SPRING, FRONT FORK

(1W4-23141-10-00)

Unavailable

46

SPRING, FRONT FORK

(1W4-23141-20-00)

Unavailable

46

O-RING (3.0-69.0)

93210-69355-00

Unavailable
