- YZ250C (YZ250C) 1976
FRAME-SIDE COVER YZ250E

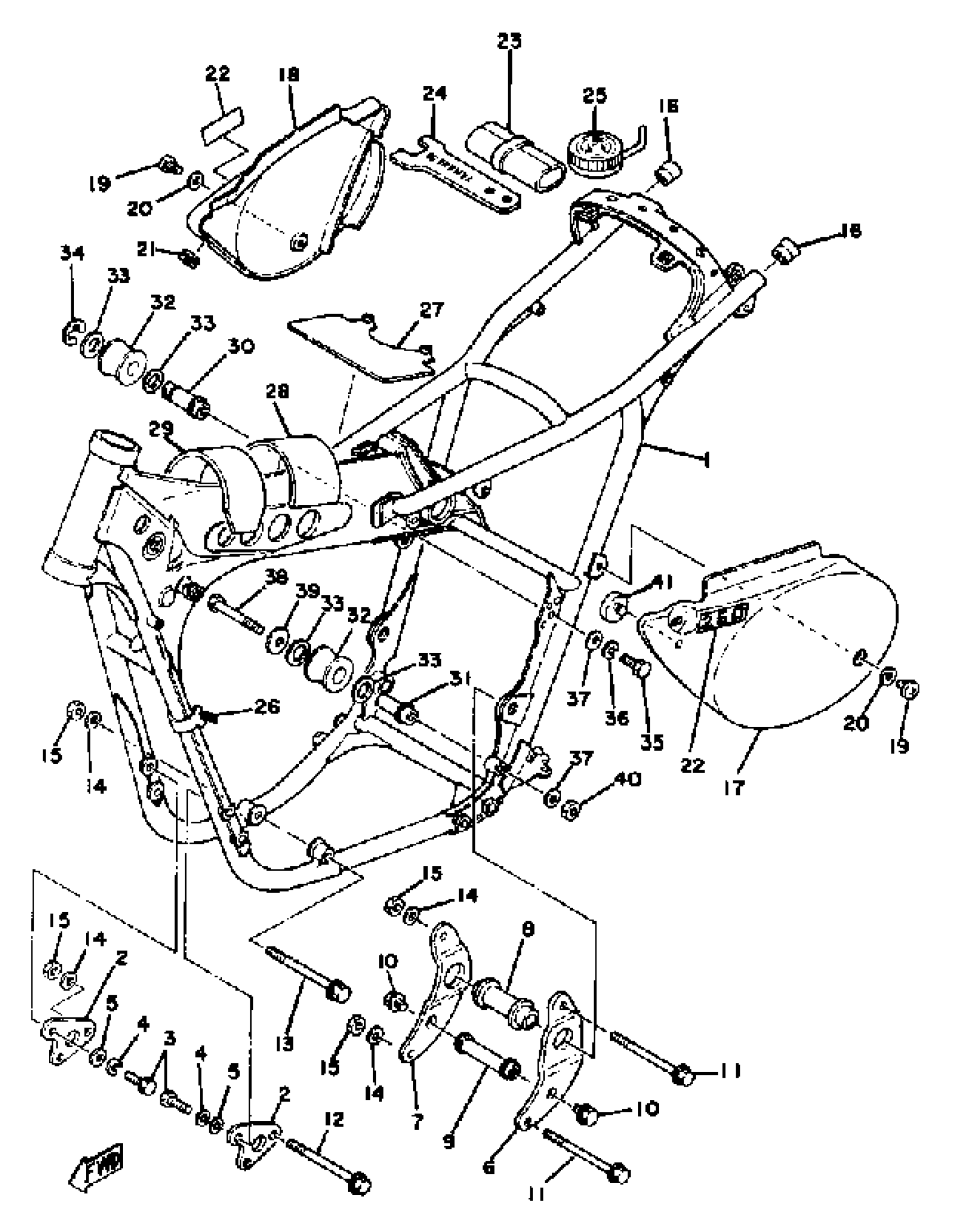

Yamaha YZ250C (YZ250C) 1976 FRAME-SIDE COVER YZ250E Diagram
#
1
FRAME
(2K7-21110-00-33)
Unavailable
2
BRACKET, FRT UPR 1 (2K7-21415-00)
2X4-21415-00-00
Unavailable
5
.. WASHER, PLATE
92990-08600-00
Unavailable
6
BRACKET, REAR LWR 1
2K7-21427-00-00
Unavailable
7
BRACKET, REAR LWR 2
(2K7-21428-00-00)
Unavailable
8
SPACER
(2K7-21459-00-00)
Unavailable
9
BOSS, ENGINE MOUNT
(2K7-21424-00-00)
Unavailable
13
BOLT, FLANGE
95817-08180-00
Unavailable
14
WASHER, PLAIN
92990-08200-00
Unavailable
16
PLUG (2K5)
90339-13005-00
Unavailable
17
COVER, SIDE 1
2K7-21711-00-98
Unavailable
18
COVER, SIDE 2
1W4-21721-00-00
Unavailable
19
SCREW, BIND(J45)
98980-06012-00
Unavailable
20
WASHER, PLATE
90201-06380-00
Unavailable
21
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
22
EMBLEM 6
(1W3-21786-00-00)
Unavailable
23
TOOL KIT
(5X5-28100-00-00)
Unavailable
24
SPANNER, SPECIAL
10V-28135-00-00
Unavailable
25
GAUGE, AIR
(1W1-2811A-00-00)
Unavailable
26
BAND, SWITCH CORD
437-83936-11-00
Unavailable
27
DAMPER, LOCATING 1
(1W1-24181-00-00)
Unavailable
28
DAMPER, LOCATING 3
1W1-24183-00-00
Unavailable
29
DAMPER, LOCATING 3
(1W4-24183-00-00)
Unavailable
30
SHAFT
2K6-2148A-02-00
Unavailable
31
SHAFT
2K7-2148A-00-00
Unavailable
32
TENSIONER
2K6-22178-00-00
Unavailable
33
WASHER, PLATE
90201-13013-00
Unavailable
34
CIRCLIP
99006-10600-00
Unavailable
35
BOLT, HEXAGON
97013-08020-00
Unavailable
37
WASHER, PLAIN
92990-08200-00
Unavailable
38
BOLT (663)
97013-08060-00
Unavailable
39
WASHER (853)
90201-08326-00
Unavailable
40
NUT, U
95617-08100-00
Unavailable
41
SEAL, RIGHT SIDE COVER
2J5-21732-00-00
Unavailable
