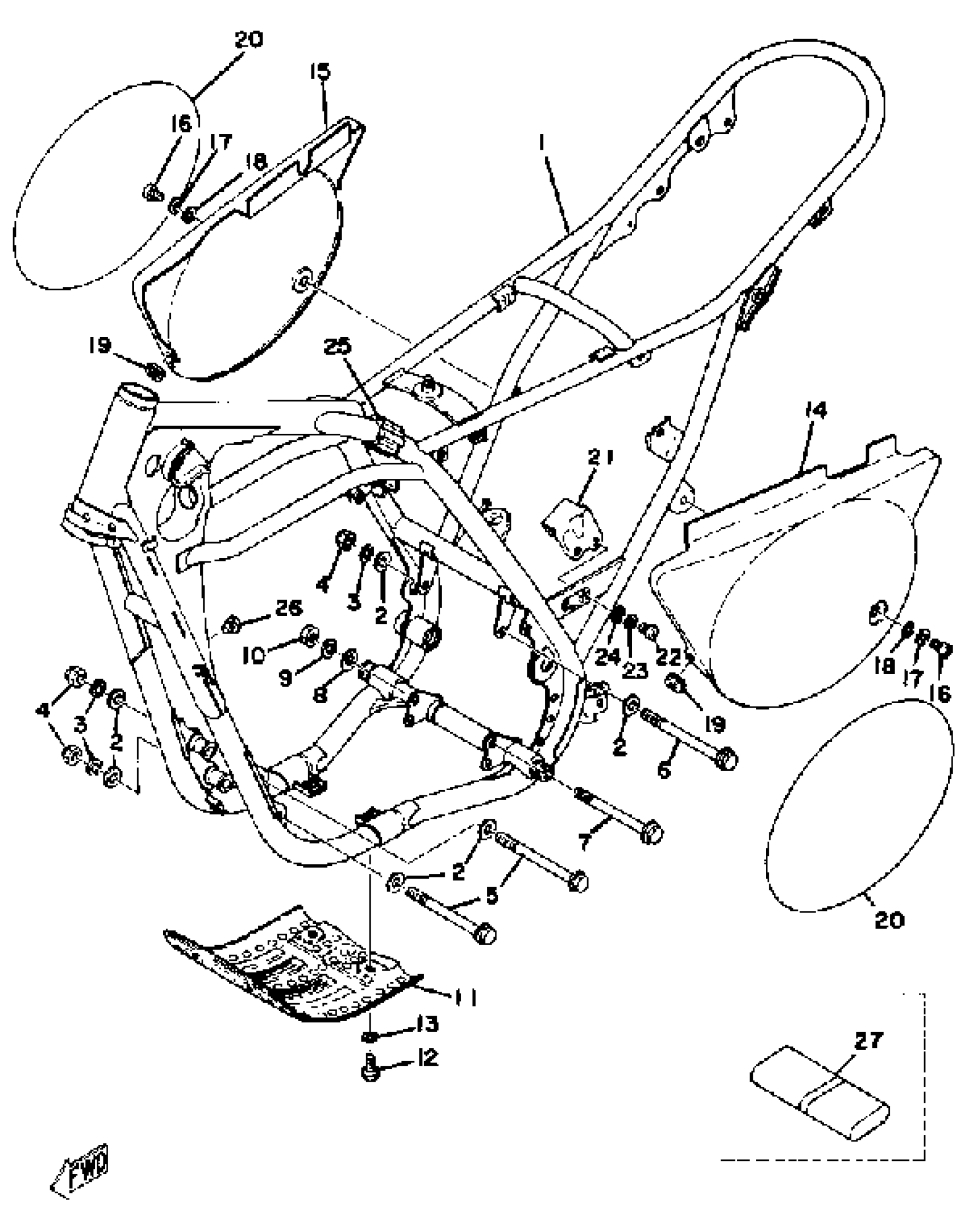

Yamaha YZ250C (YZ250C) 1976 FRAME-SIDE COVER YZ250C Diagram

#

Description
Price

1

FRAME

(509-21110-05-33)

Unavailable

2

WASHER (401)

90209-08050-00

$10.49

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

5

BOLT (5A6)

90101-08538-00

$12.49

6

BOLT, HEXAGON (582)

90101-08286-00

$7.49

7

BOLT, WASHER BASED (2H7)

90105-10105-00

$12.49

8

WASHER, PLATE 3711117500

90201-10124-00

$9.49

9

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

10

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

11

PROTECTOR, ENGINE

1M1-21471-00-90

Unavailable

12

BOLT (661)

97013-06012-00

$5.60

13

WASHER, SPRING

92995-06100-00

Unavailable

14

COVER, SIDE 1

(509-21711-01-00)

Unavailable

14

COVER, SIDE 1

(509-21711-10-00)

Unavailable

15

COVER, SIDE 2

(509-21721-01-00)

Unavailable

15

COVER, SIDE 2

(509-21721-10-00)

Unavailable

16

SCREW(3JM)

90149-06306-00

Unavailable

17

WASHER, PLATE

90201-06380-00

Unavailable

18

WASHER, PLATE

(90202-07048-00)

Unavailable

19

DAMPER, SIDE COVER (437)

90480-12053-00

Unavailable

20

EMBLEM 7

(322-21787-00-00)

Unavailable

21

PORTECTOR, CHAIN

(509-22147-00-33)

Unavailable

22

BOLT (661)

97013-06012-00

$5.60

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

DAMPER, LOCATING 2

(509-24182-01-00)

Unavailable

26

DAMPER, MUFFLER

(509-14747-00-00)

Unavailable

27

TOOL KIT

(509-28100-10-00)

Unavailable
