Description

Price

1

FENDER, FRONT

453-21511-01-00

Unavailable

2

BOLT, HEXAGON

97017-06030-00

$3.61

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

DAMPER, FENDER

322-21541-00-00

$7.99

6

COLLAR

90387-06158-00

$8.49

7

SPACER

(90560-06151-00)

Unavailable

8

FENDER, REAR

363-21611-00-00

Unavailable

9

GROMMET (431)

90480-14052-00

$5.60

10

COLLAR (3H5)

90387-060A3-00

$8.49

11

WASHER, PLATE

90201-06380-00

$0.60

12

BOLT, HEXAGON

97017-06020-00

$4.06

13

NUT, SELF-LOCKING

95617-06100-00

$8.49

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

15

WASHER, SPRING

92995-06100-00

Unavailable

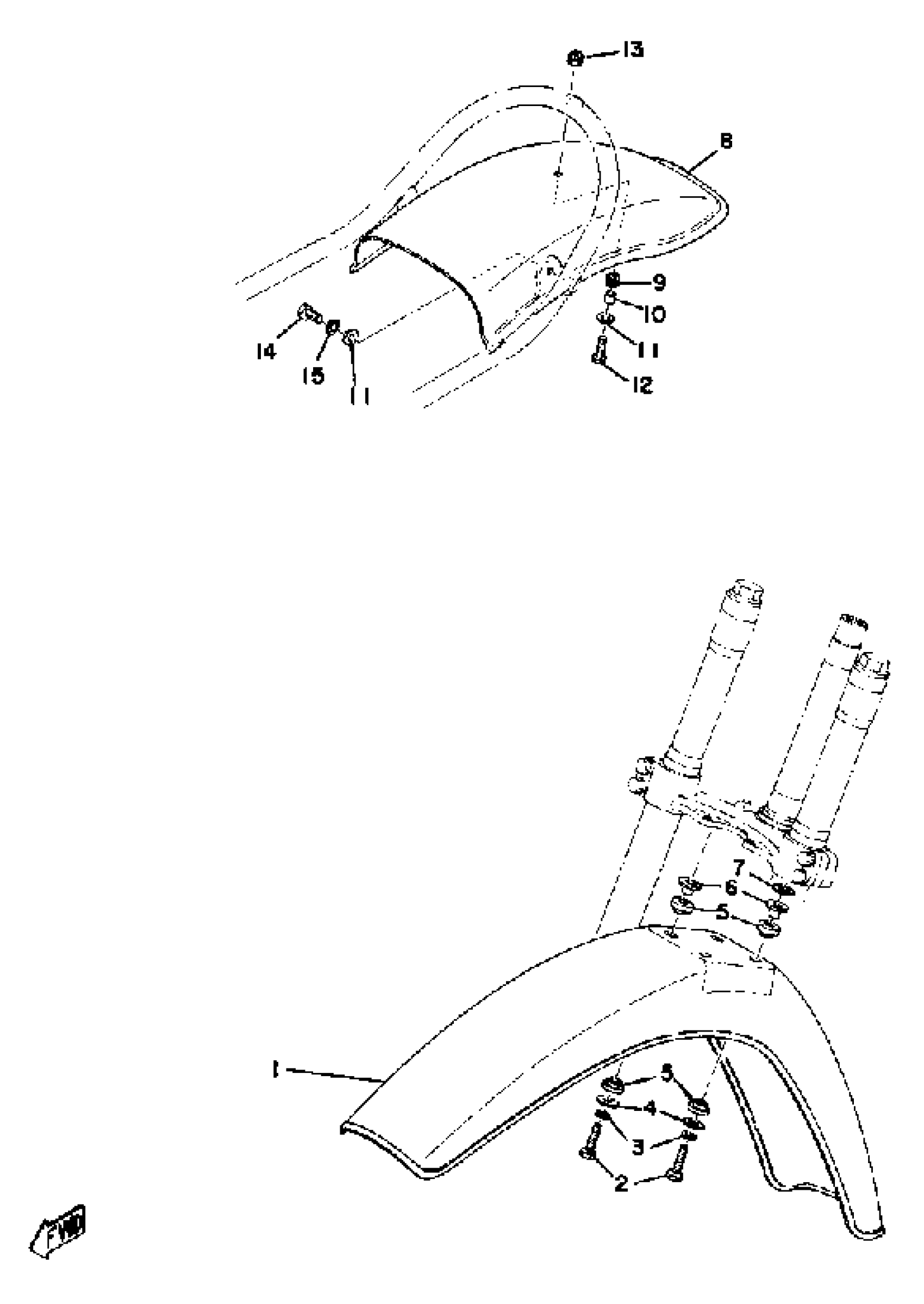

Yamaha YZ250C (YZ250C) 1976 FENDER YZ250C Diagram

FENDER, FRONT

BOLT, HEXAGON

WASHER, SPRING

WASHER, PLATE

DAMPER, FENDER

COLLAR

SPACER

FENDER, REAR

GROMMET (431)

COLLAR (3H5)

WASHER, PLATE

BOLT, HEXAGON

NUT, SELF-LOCKING

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING
