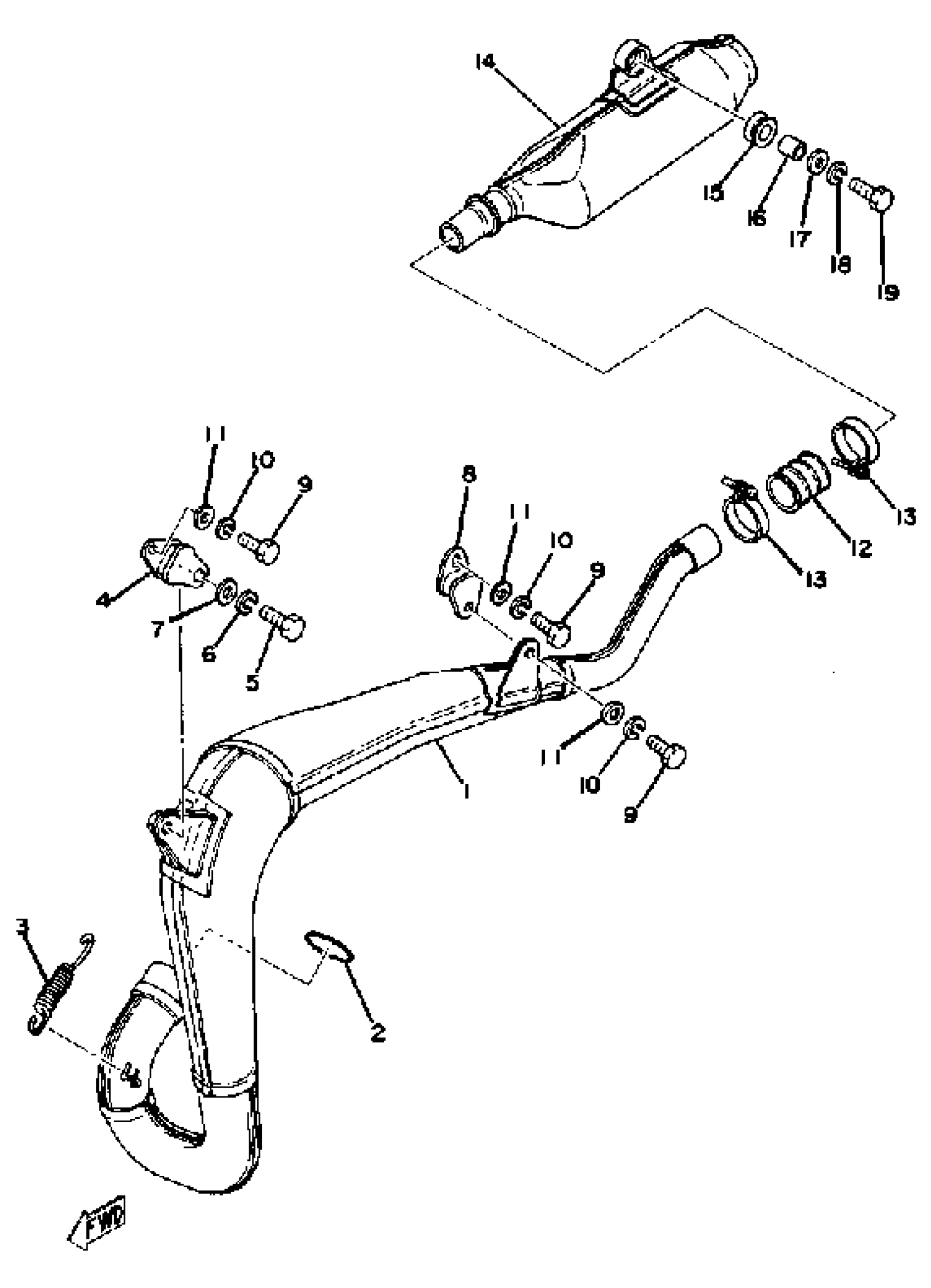

Yamaha YZ250C (YZ250C) 1976 EXHAUST YZ250E Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(2K7-14610-01-00)

Unavailable

2

GASKET,EXST PIPE

2K7-14613-09-00

Unavailable

3

SPRING, TENSION (1W4)

90507-20030-00

$11.73

4

STAY, MUFFLER 2

483-14781-03-00

Unavailable

5

BOLT, HEXAGON

97013-08020-00

$1.43

6

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

7

.. WASHER, PLATE

92990-08600-00

$2.17

8

STAY, MUFFLER 1

565-14771-01-00

$15.57

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

10

WASHER, SPRING

92995-06100-00

$2.95

11

WASHER, PLAIN (646)

92990-06600-00

$1.84

12

GASKET, MUFFLER JOINT

1W2-14714-00-00

$27.41

13

CLAMP, HOSE

90460-37130-00

Unavailable

14

SILENCER, EXHAUST

(2K7-14753-00-00)

Unavailable

15

DAMPER

565-14747-00-00

Unavailable

16

COLLAR (437)

90387-08258-00

Unavailable

17

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

19

BOLT, HEXAGON

97013-08030-00

Unavailable
