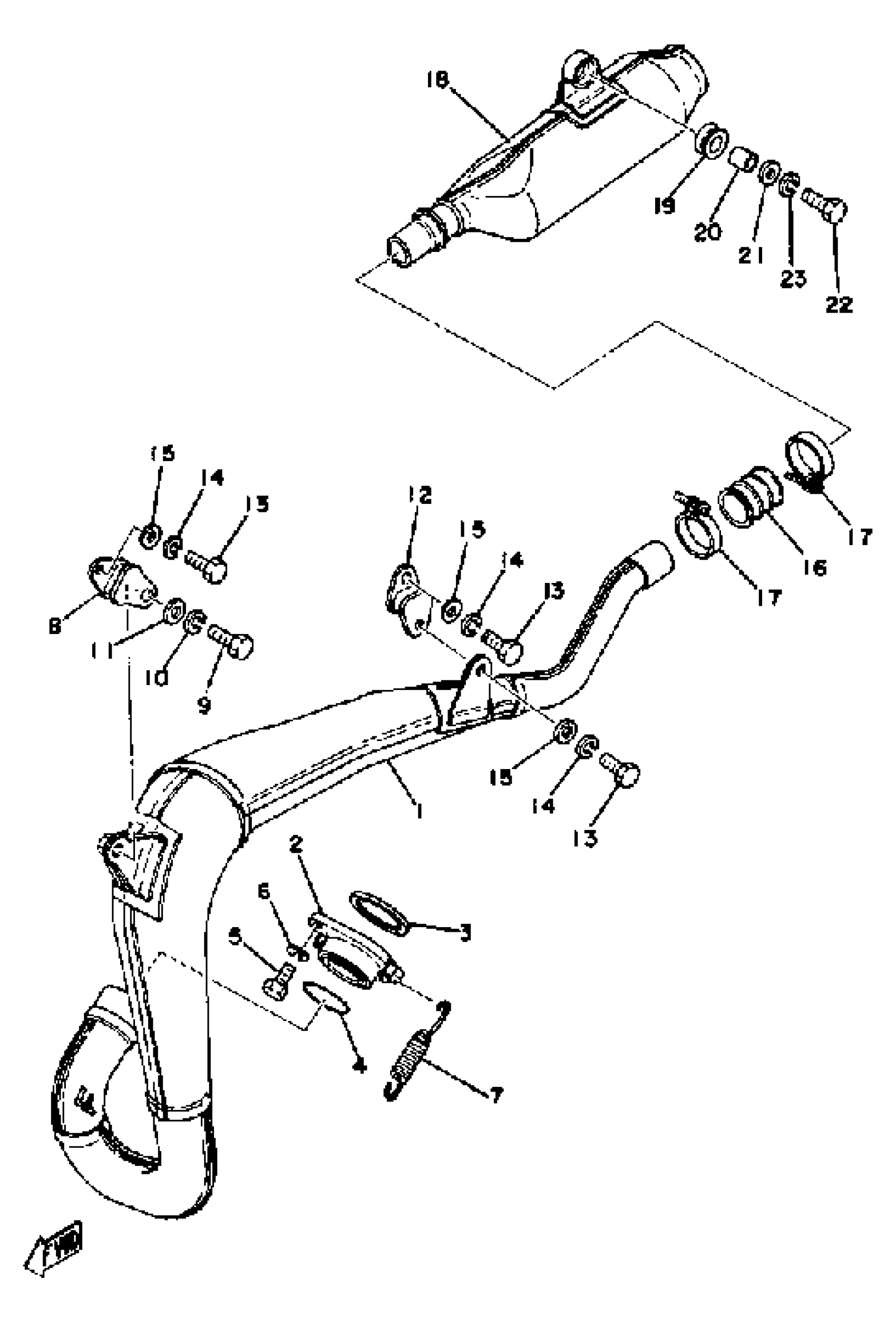

Yamaha YZ250C (YZ250C) 1976 EXHAUST YZ250D Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

1W3-14610-00-00

Unavailable

2

NUT, RING

1W4-14612-01-00

Unavailable

3

GASKET, EXHAUST PIPE

214-14613-09-00

$14.81

4

GASKET

248-14623-10-00

$5.80

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

6

WASHER, SPRING

92995-06100-00

$2.95

7

SPRING, TENSION (1W4)

90507-20030-00

$11.73

8

STAY, MUFFLER 2

483-14781-03-00

Unavailable

9

BOLT, HEXAGON

97013-08020-00

$1.43

10

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

11

.. WASHER, PLATE

92990-08600-00

$2.17

12

STAY, MUFFLER 1

565-14771-01-00

$15.57

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

14

WASHER, SPRING

92995-06100-00

$2.95

15

WASHER, PLAIN (646)

92990-06600-00

$1.84

16

GASKET, MUFFLER JOINT

1W2-14714-00-00

Unavailable

17

CLAMP, HOSE

90460-37130-00

Unavailable

18

SILENCER, EXHAUST

(1W3-14753-00-00)

Unavailable

19

DAMPER

565-14747-00-00

Unavailable

20

COLLAR (437)

90387-08258-00

Unavailable

21

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

22

BOLT, HEXAGON

97013-08030-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23
