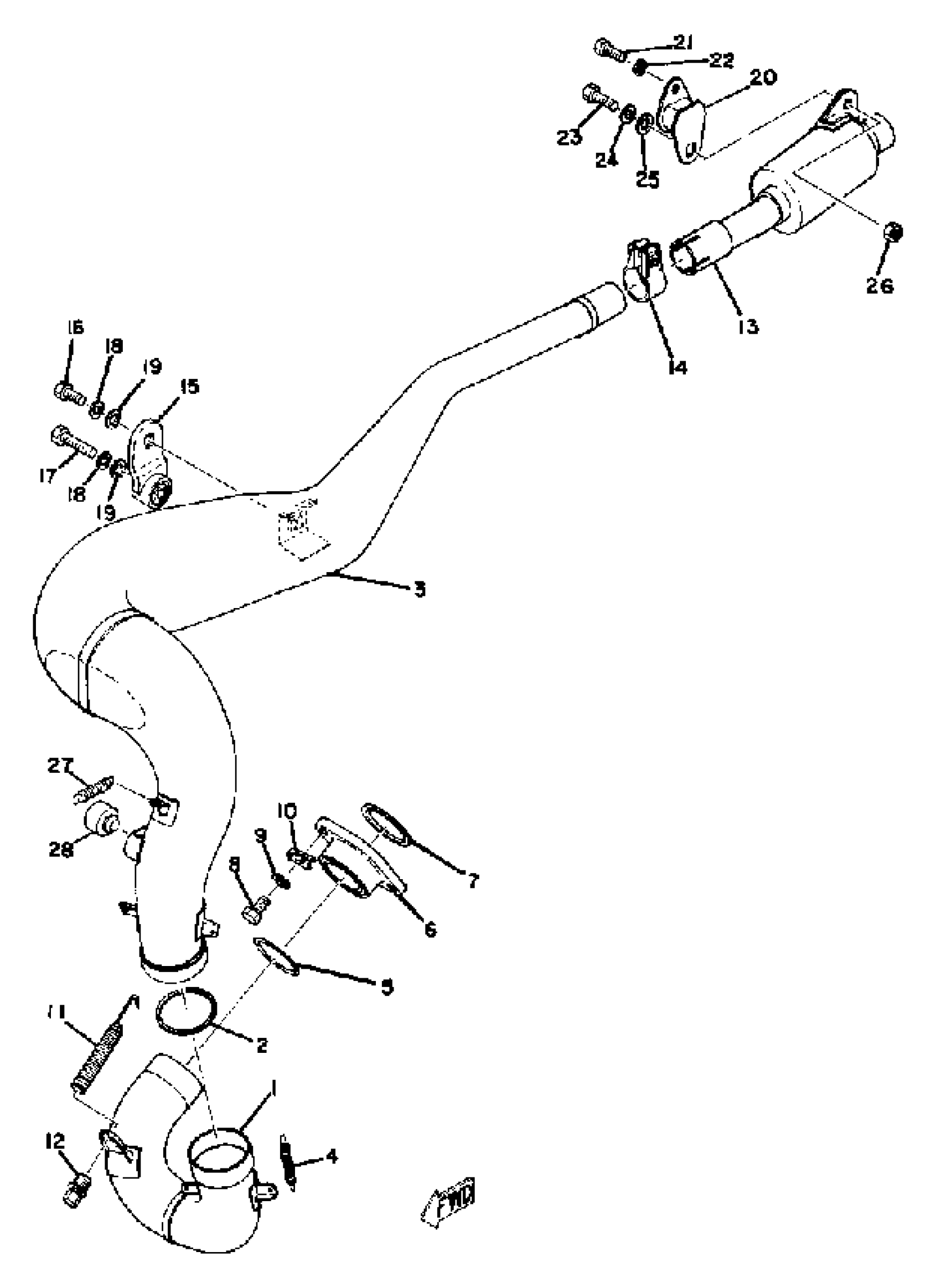

Yamaha YZ250C (YZ250C) 1976 EXHAUST YZ250C - E Diagram

#

Description
Price

1

JET, MAIN #160

137-14143-32-00

$9.99

1

NEEDLE

(239-14116-20-00)

Unavailable

1

PIPE, EXHAUST L

(509-14611-01-00)

Unavailable

1

SILENCER ASSEMBLY

(509-14750-21-00)

Unavailable

1

PLATE

(510-14477-20-00)

Unavailable

2

GASKET

248-14623-10-00

$7.99

3

MUFFLER L

(509-14711-02-00)

Unavailable

4

SPRING, TENSION

90506-18068-00

Unavailable

5

GASKET

248-14623-10-00

$7.99

6

NUT, RING

(214-14612-00-00)

Unavailable

7

GASKET, EXHAUST PIPE

214-14613-09-00

$18.49

8

BOLT, HEXAGON

97017-06020-00

$4.06

9

WASHER, SPRING

92995-06100-00

Unavailable

10

PLATE

363-14685-00-00

Unavailable

11

SPRING,TENSION

90507-20012-00

Unavailable

12

BOLT, HOOK

409-14684-00-00

Unavailable

13

SILENCER, EXHAUST

(509-14753-10-00)

Unavailable

14

CLAMP, HOSE

90460-38292-00

Unavailable

15

STAY, MUFFLER 1

483-14771-00-00

Unavailable

16

BOLT(JA9)

90101-08691-00

Unavailable

17

BOLT

97013-08035-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

19

.. WASHER, PLATE

92990-08600-00

Unavailable

20

STAY, MUFFLER 2

483-14781-03-00

Unavailable

21

BOLT, HEXAGON

97017-06020-00

$4.06

22

WASHER, SPRING

92995-06100-00

Unavailable

23

BOLT(JA9)

90101-08691-00

Unavailable

23

BOLT(JA9)

90101-08691-00

Unavailable

24

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

25

.. WASHER, PLATE

92990-08600-00

Unavailable

25

.. WASHER, PLATE

92990-08600-00

Unavailable

26

NUT(6L2)

95333-08600-00

Unavailable

26

NUT(6L2)

95333-08600-00

Unavailable

27

SPRING, TENSION

90506-14129-00

Unavailable

28

STOPPER MAIN STAND

278-27114-00-00

Unavailable
