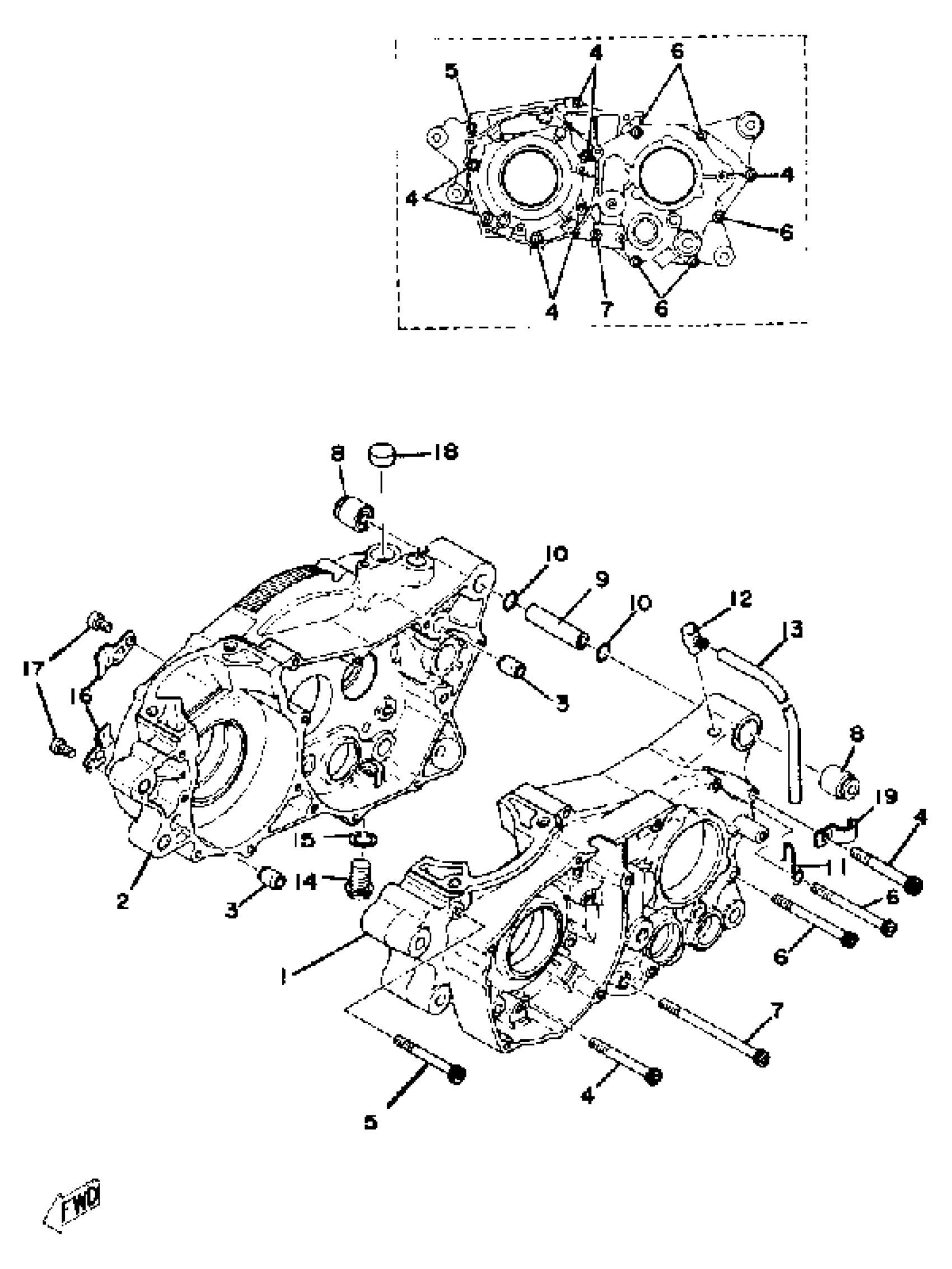

Yamaha YZ250C (YZ250C) 1976 CRANKCASE YZ250C Diagram

#

Description
Price

1

CRANKCASE 1

(498-15111-01-00)

Unavailable

2

CRANKCASE 2

(498-15121-01-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT,SOCKET

91317-06055-00

$4.19

5

BOLT,SOCKET

91317-06060-00

$3.76

6

BOLT, SOCKET

91317-06070-00

$4.99

7

BOLT, SOCKET HEAD

91316-06095-00

Unavailable

8

DAMPER

90388-08003-00

$17.99

9

SPACER, ENGINE MOUNT

438-15317-00-00

Unavailable

10

O-RING (P95)

93210-11073-00

$7.49

11

CLAMP

90465-20035-00

Unavailable

12

BREATHER

583-15371-00-00

$6.99

13

HOSE (L570)

90445-07MF1-00

Unavailable

14

BOLT

90109-14385-00

$16.99

15

GASKET

214-11198-01-00

$3.17

16

HOLDER

434-15118-00-00

Unavailable

17

SCREW,PAN HEAD

98580-08012-00

Unavailable

18

PLUG 363174810000

90338-20023-00

Unavailable

19

CLAMP 363154850100

90462-05005-00

Unavailable
