CLUTCH YZ250D - E

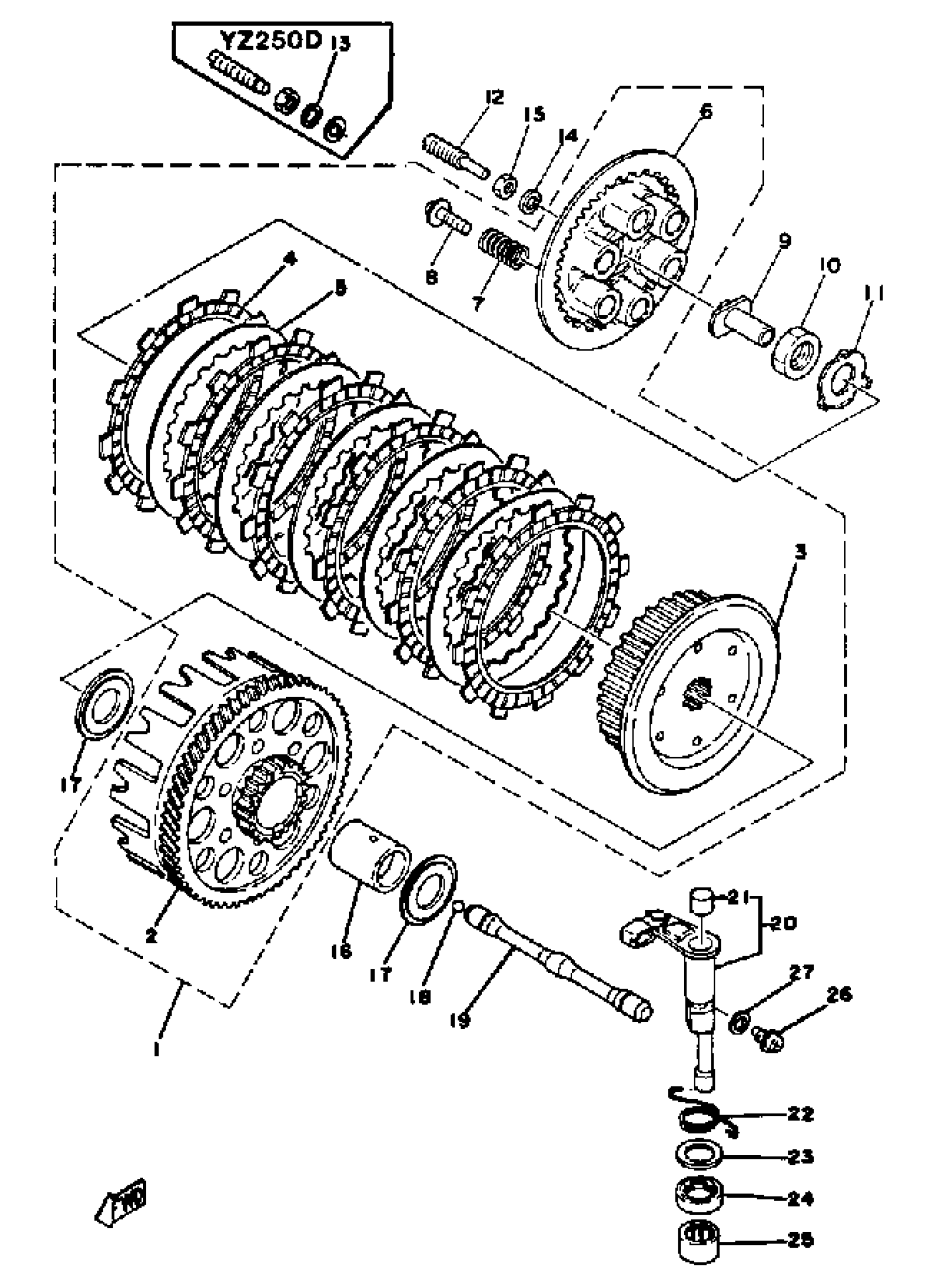

Yamaha YZ250C (YZ250C) 1976 CLUTCH YZ250D - E Diagram
#
1
CLUTCH ASSEMBLY
(1W3-16301-00-00)
Unavailable
1
CLUTCH ASSEMBLY
(2K7-16301-00-00)
Unavailable
2
. PRI DRVN GEAR
1W4-16150-00-00
Unavailable
2
. PRI DRVN GEAR
2K7-16150-00-00
Unavailable
3
. BOSS, CLUTCH
1W3-16371-00-00
Unavailable
3
. BOSS, CLUTCH
2K7-16371-00-00
Unavailable
6
. PLATE, PRESSURE 1
1W3-16351-00-00
Unavailable
6
. PLATE, PRESSURE 1
2K7-16351-00-00
Unavailable
9
ROD, PUSH 1
1M1-16356-00-00
Unavailable
9
ROD, PUSH 1
(2K7-16356-00-00)
Unavailable
11
WASHER, LOCK (3Y1)
90215-20159-00
Unavailable
12
SCREW, SPEC''L SHAPE
90149-06123-00
Unavailable
12
SCREW, SPECIAL SHAPE
90149-08105-00
Unavailable
13
WASHER, PLAIN
92990-08200-00
Unavailable
14
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
14
WASHER, SPRING
92995-06100-00
Unavailable
15
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
15
NUT, HEXAGON
95380-06600-00
Unavailable
16
SPACER 1
1M1-16181-00-00
Unavailable
16
SPACER 1
2K7-16181-00-00
Unavailable
17
PLATE, THRUST
2K7-16154-00-00
Unavailable
17
PLATE, THRUST
360-16154-00-00
Unavailable
18
BALL (1M1)
93515-32029-00
Unavailable
19
ROD, PUSH 2
1W4-16357-00-00
Unavailable
19
ROD, PUSH 2
2K7-16357-01-00
Unavailable
20
PUSH LEVER ASSEMBLY
1W4-16380-00-00
Unavailable
20
PUSH LEVER ASSEMBLY
2K7-16380-00-00
Unavailable
21
. PLUG, BLIND
214-17481-00-00
Unavailable
22
SPRING, TORSION
90508-14360-00
Unavailable
22
SPRING, TORSION
90508-14373-00
Unavailable
23
WASHER PLATE 168217580000
90201-18262-00
Unavailable
24
OIL SEAL (17X28X6-101)
93102-17004-00
Unavailable
25
BRG,CYL-CAL ROLLER 10G KY
93315-11720-00
Unavailable
25
BRG,CYL-CAL ROLLER 12G KY
93315-21721-00
Unavailable
26
SCREW (1M1)
90149-08108-00
Unavailable
27
GASKET(3AJ)
90430-08204-00
Unavailable
