- YZ250C (YZ250C) 1976
AIR FILTER YA250D - E

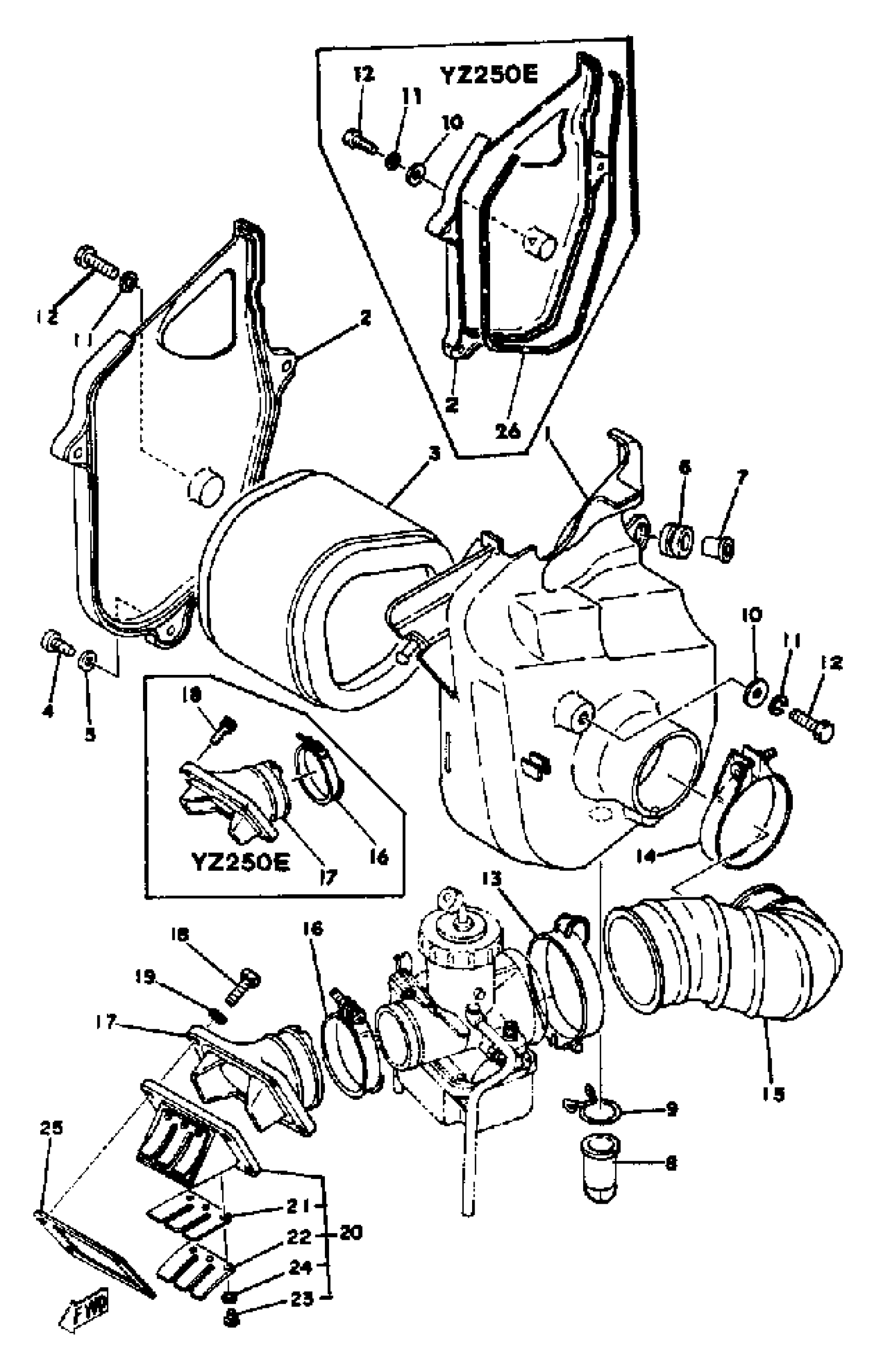

Yamaha YZ250C (YZ250C) 1976 AIR FILTER YA250D - E Diagram
#
1
CASE, AIR CLEANER 1
1W4-14411-00-00
Unavailable
1
CASE, AIR CLEANER 1
(2K7-14411-01-00)
Unavailable
2
CAP, CLEANER CASE 1
1W4-14412-00-00
Unavailable
2
CAP, CLEANER CASE 1
2K7-14412-00-00
Unavailable
3
ELEMENT, AIR CLNR.
1W4-14451-00-00
Unavailable
3
ELEMENT ASSEMBLY
2K7-14450-00-00
Unavailable
7
COLLAR 437216330000
90387-07391-00
Unavailable
8
SEAL
1W4-14457-00-00
Unavailable
9
CLIP
90467-20M15-00
Unavailable
11
WASHER, SPRING
92995-06100-00
Unavailable
13
CLAMP, HOSE
90460-68231-00
Unavailable
14
CLAMP, HOSE (90460-71017)
90460-71129-00
Unavailable
14
CLAMP, HOSE(59V)
90460-85277-00
Unavailable
15
JOINT, AIR CLNR 1
(1W3-14453-00-00)
Unavailable
15
JOINT, AIR CLNR 1
2K7-14453-00-00
Unavailable
16
CLAMP, HOSE
90460-51109-00
Unavailable
17
JOINT, CARBURETOR
1W3-13565-00-00
Unavailable
17
JOINT, CARBURETOR
2K7-13565-00-00
Unavailable
18
BOLT,SOCKET
91317-06020-00
Unavailable
18
BOLT, HEXAGON
97017-06020-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
20
REED VALVE ASSEMBLY
2K7-13610-00-00
Unavailable
20
REED VALVE ASSEMBLY
(431-13610-01-00)
Unavailable
21
. REED, VALVE
2K7-13613-00-00
Unavailable
21
. REED, VALVE
363-13613-00-00
Unavailable
22
STOPPER, REED VALVE
(2K7-13616-00-00)
Unavailable
22
. STOPPER, REED VALVE
363-13616-00-00
Unavailable
23
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
24
WASHER, SPRING
92990-03100-00
Unavailable
25
GASKET, VALVE SEAT
80L-13621-01-00
Unavailable
25
GASKET, MANIFOLD
8Y7-13556-01-00
Unavailable
26
SEAL
50M-14462-01-00
Unavailable
