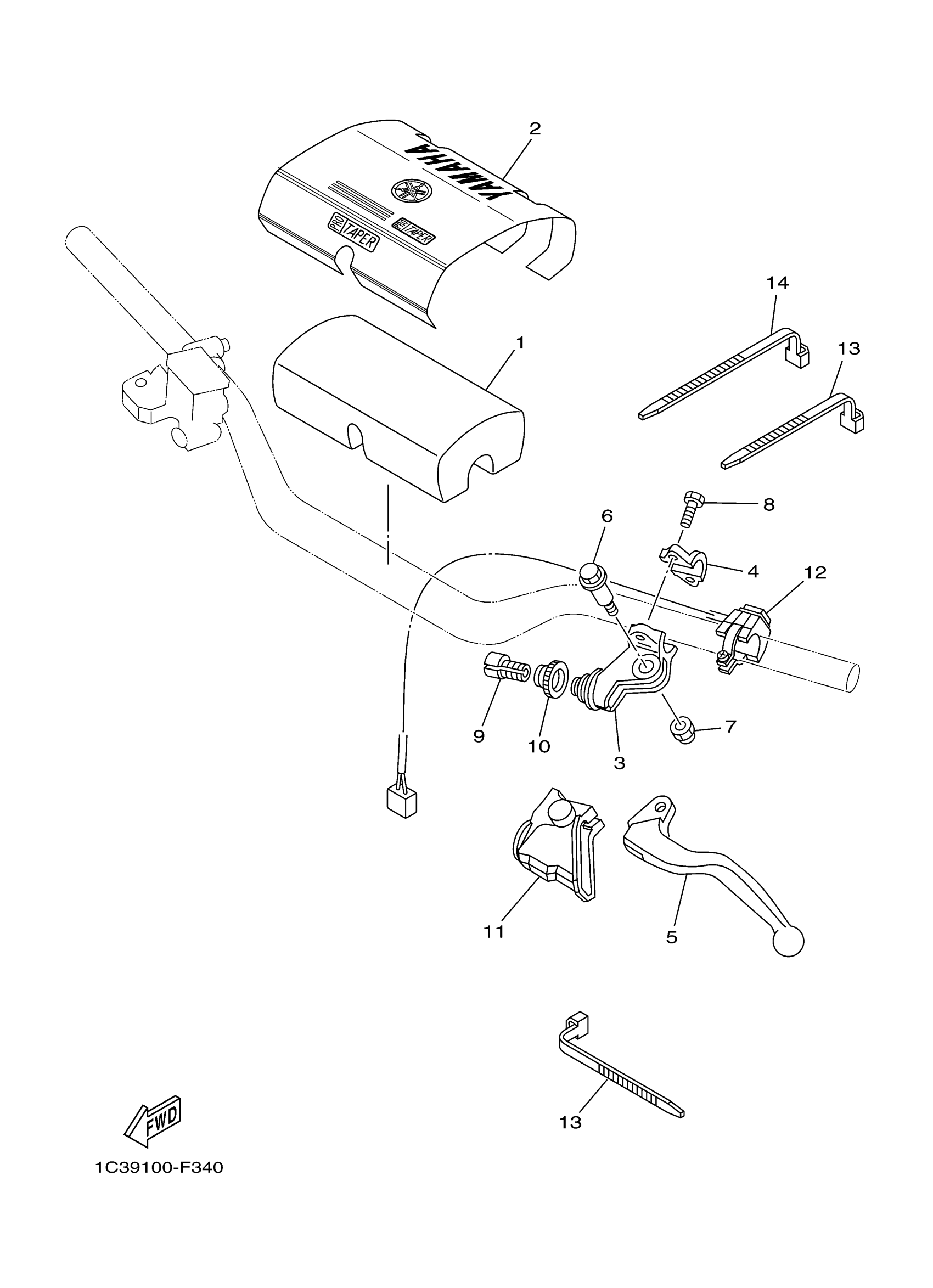

Yamaha YZ250B2 (YZ250) 1SS1 2012 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

PROTECTOR, HANDLEBAR

5XC-26124-90-00

$42.99

2

COVER, HANDLEBAR UPPER 1

5XC-26143-L0-00

Unavailable

3

HOLDER, LEVER 1

5XE-82911-00-00

$32.99

4

HOLDER, LEVER LOWER 1

5TG-82913-00-00

$9.99

5

LEVER 1

5MV-83912-01-00

$34.99

6

BOLT

90109-06034-00

$7.49

7

NUT, LENS FITTING

5LP-84126-10-00

$6.99

8

BOLT

90101-05033-00

$2.39

9

BOLT, ADJUSTING

5HD-26337-00-00

$11.99

10

BOLT, CABLE ADJUST

5HD-83951-01-00

$44.99

11

COVER, HANDLE LEVER 1

5HD-26372-00-00

$17.49

12

SWITCH, HANDLE 1

1C3-83976-02-00

$34.99

13

CLAMP

90464-13077-00

$8.49

14

CLAMP(4FM)

90464-15195-00

$4.41
