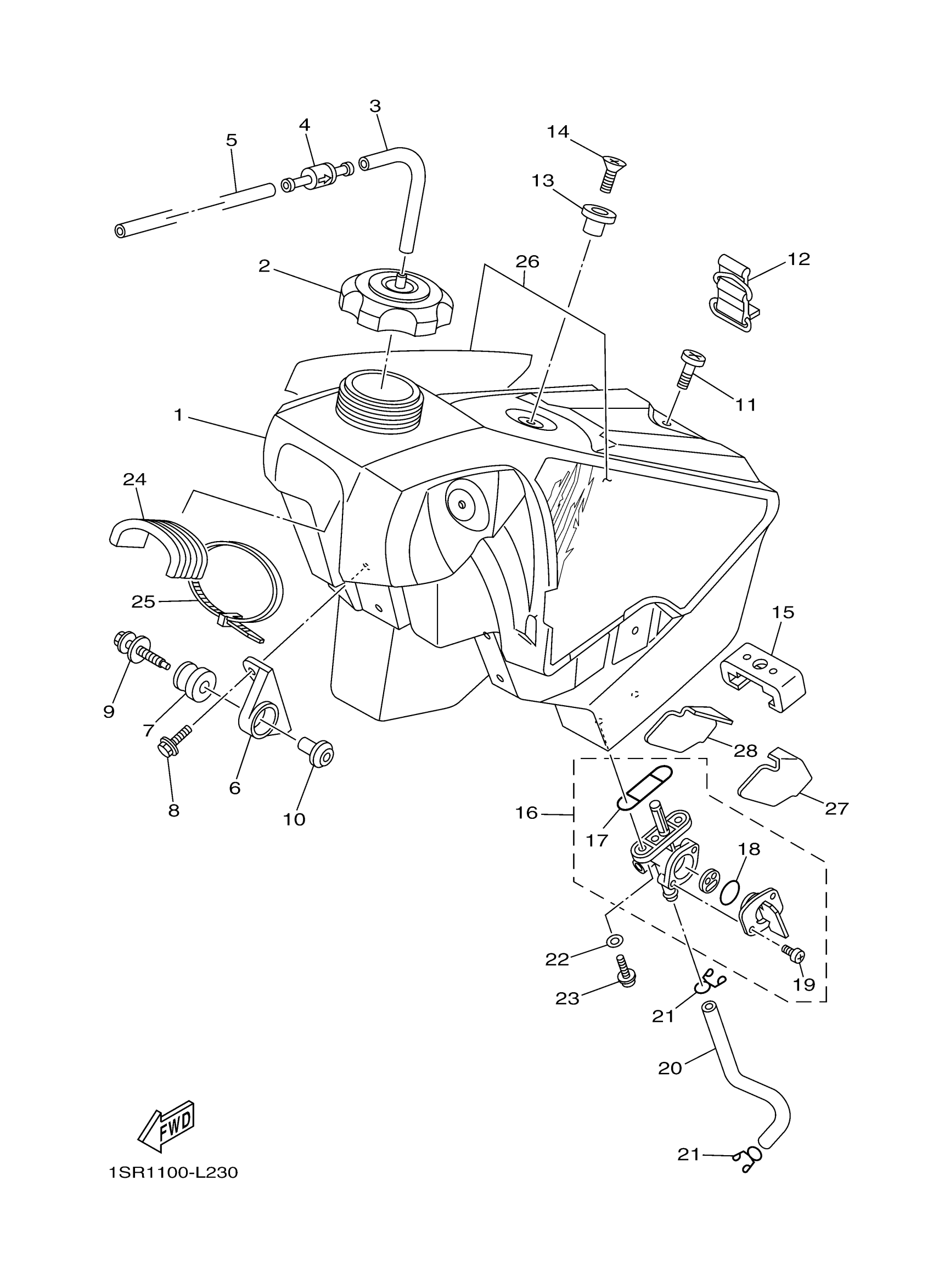

Yamaha YZ250B2 (YZ250) 1SS1 2012 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

1C3-24110-90-00

$693.56

2

CAP ASSY

5NY-24610-10-00

$51.55

3

PIPE 5

5RB-24315-00-00

$5.61

4

PIPE JOINT ASSY

3XJ-24380-00-00

$29.16

5

HOSE (L420)

90445-092K1-00

$10.47

6

HOLDER, DAMPER

5XE-24144-00-00

$18.59

7

GROMMET(4AA)

90480-18549-00

$8.23

8

BOLT, FLANGE

90105-06107-00

$5.75

9

BOLT 1

5XE-24176-10-00

$5.37

10

WASHER, SPECIAL

5NY-24186-00-00

$16.66

11

SCREW, BINDING

98907-06025-00

$5.76

12

BAND, TANK FITTING 1

3SP-24173-00-00

$17.25

13

BRACKET, SEAT

4EW-2412F-00-00

$11.85

14

SCREW, FLAT HEAD

98702-06025-00

$5.75

15

DAMPER, LOCATING 1

1C3-24181-00-00

$6.41

16

FUEL COCK ASSY 1

3JD-24500-20-00

Unavailable

17

O-RING

4X8-24512-10-00

Unavailable

18

SEAL, COCK

3AJ-24534-10-00

Unavailable

19

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

20

HOSE (L210)

90445-110F5-00

Unavailable

21

CLIP

90467-100A1-00

Unavailable

22

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

23

SCREW

90149-06108-00

Unavailable

24

DAMPER, LOCATING 2

1P8-24182-00-00

Unavailable

25

CLAMP(MF1)

90464-15152-00

Unavailable

26

GRAPHIC SET

1SR-24240-00-00

Unavailable

27

DAMPER, LOCATING 3

1C3-24183-00-00

Unavailable

28

DAMPER, LOCATING 4

1C3-24184-00-00

Unavailable
