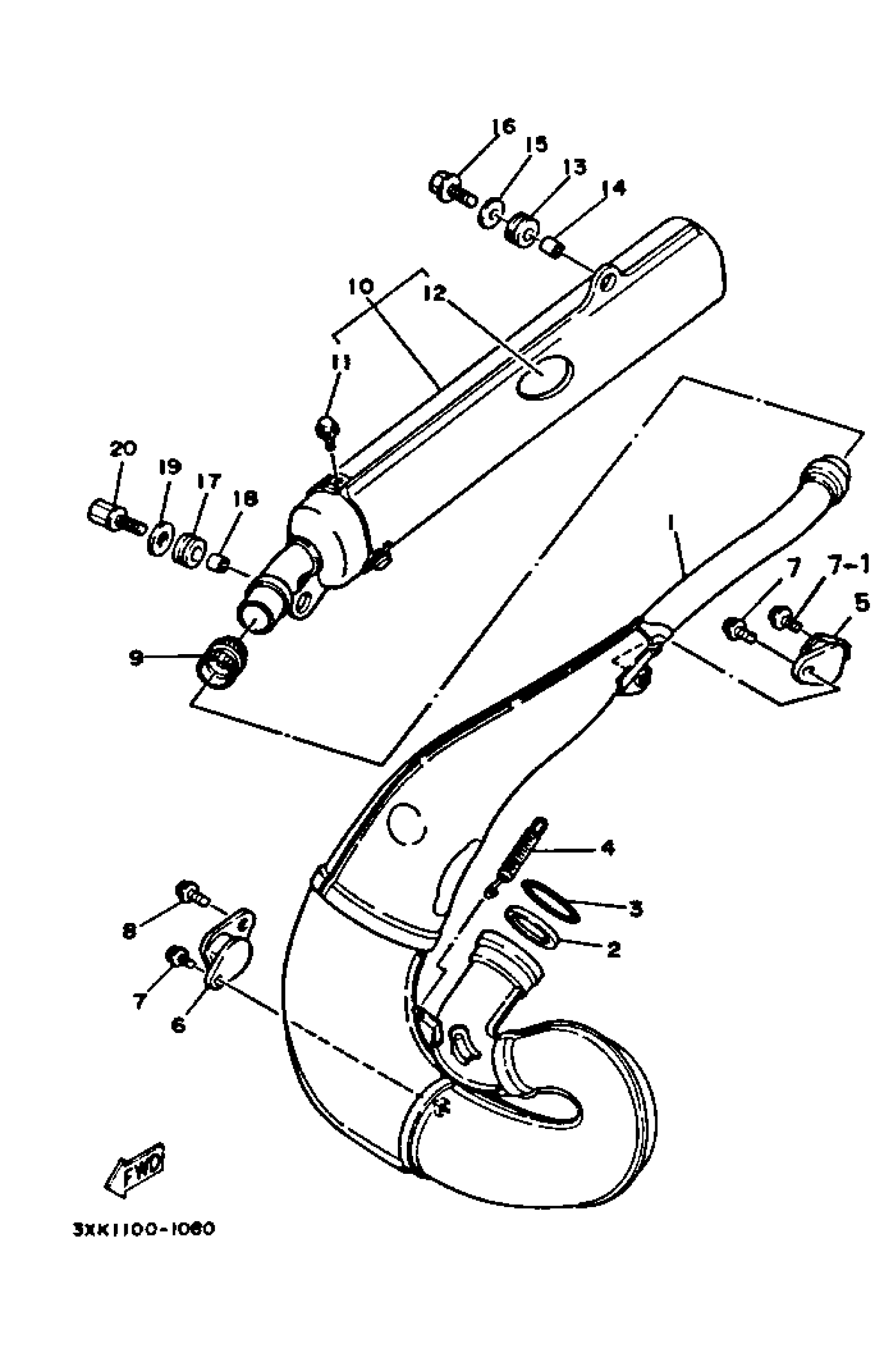

Yamaha YZ250B1 (YZ250) 1991 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY 1

3XK-14610-00-00

Unavailable

1

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

2

GASKET, EXHAUST

3R4-14613-00-00

$31.99

3

O-RING(2HH)

93210-56743-00

$15.99

4

SPRING, TENSION (1W4)

90507-20030-00

$14.99

5

STAY, MUFFLER 1

565-14771-01-00

$18.49

6

STAY, MUFFLER 2

483-14781-03-00

Unavailable

7

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

8

BOLT, FLANGE(2UJ)

95024-08012-00

$8.49

9

JOINT, EXHAUST 1

3JE-14615-01-00

$55.99

10

SILENCER,EXHAUST

3XK-14753-00-00

Unavailable

11

BOLT, FLANGE(3BM)

95024-06008-00

$9.49

12

. FIBER

3XK-1469A-10-00

Unavailable

13

DAMPER, MUFFLER

39X-14747-00-00

Unavailable

14

COLLAR

90387-081A3-00

Unavailable

15

WASHER, PLATE (1A0)

90201-08612-00

Unavailable

16

BOLT, FLANGE (3JPE)

95024-08030-00

Unavailable

17

GROMMET (2N3)

90480-16233-00

Unavailable

18

COLLAR

90387-06113-00

Unavailable

19

WASHER, PLATE

90201-06747-00

Unavailable

20

BOLT

90109-064F4-00

Unavailable
