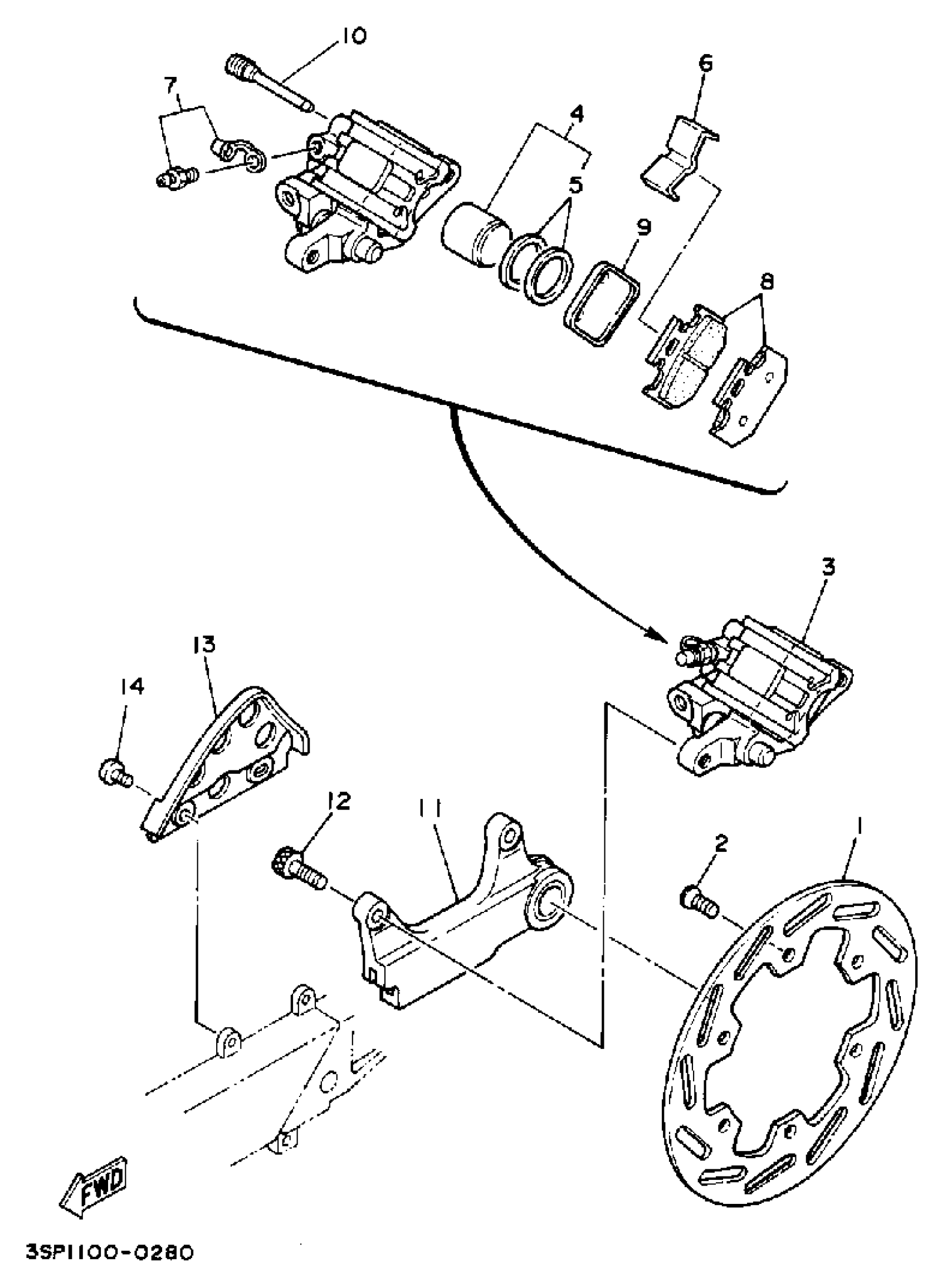

Yamaha YZ250A (YZ250A) 1974 REAR BRAKE CALIPER Diagram

DISC, REAR BRAKE 2

4MX-2582W-00-00

Unavailable

SCREW, COUNTERSUNK

90151-06080-00

$2.18

CALIPER ASSEMBLY, REAR 2 (3SP-2580W-00-00)

3SP-2580W-01-00

Unavailable

PISTON ASSY, CALIPER

3SP-W0057-50-00

Unavailable

CALIPER SEAL KIT

3JD-25803-50-00

$16.49

SUPPORT, PAD

3SP-25919-51-00

Unavailable

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

BRAKE PAD KIT 2

3XP-W0046-00-00

$39.99

SHIM, CALIPER

3GD-25827-00-00

$10.99

SUPT. BRKT. ASSEMBLY

3SP-25920-00-00

Unavailable

SUPT. BRKT. ASSEMBLY

3SP-25920-00-00

Unavailable

BOLT,SOCKET

91314-08025-00

$8.49

PROTECTOR

3JD-27491-00-00

Unavailable

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$3.28
