CARBURETOR

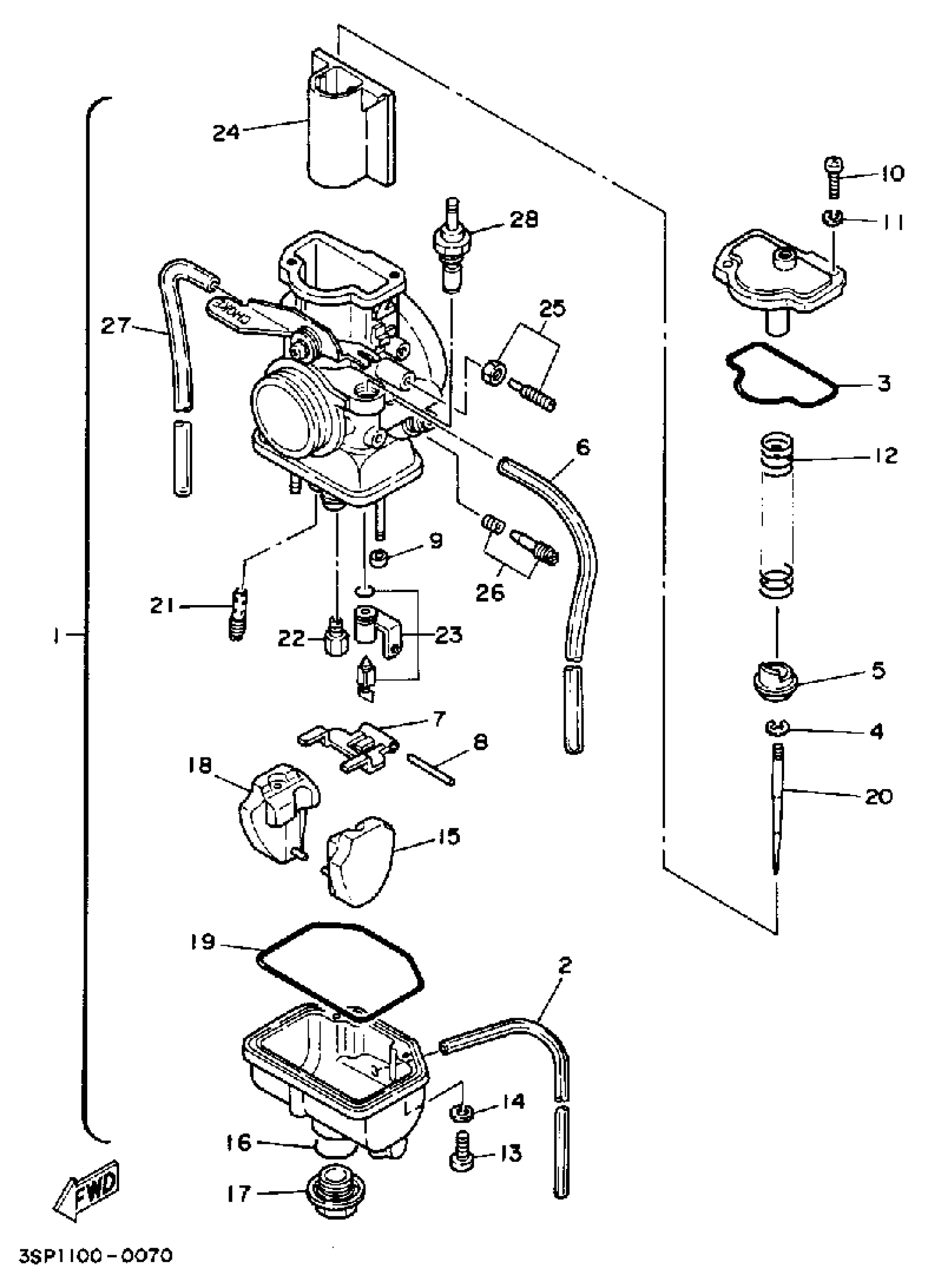

Yamaha YZ250A (YZ250A) 1974 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
3SP-14101-00-00
Unavailable
5
. RING
3JD-14194-00-00
Unavailable
6
HOSE
8AX-14987-00-00
Unavailable
7
. ARM, FLOAT
363-14187-00-00
Unavailable
9
CAP
214-14118-00-00
Unavailable
10
SCREW, PAN HEAD
98511-04012-00
Unavailable
12
. SPRING, THROTTLE VALVE
3JD-14131-00-00
Unavailable
15
. FLOAT
3JD-14185-00-00
Unavailable
16
O-RING
3JE-14561-00-00
Unavailable
17
PLUG,SCREW
4DP-14115-00-00
Unavailable
18
. FLOAT
3JE-14185-00-00
Unavailable
19
O-RING
3JE-14147-00-00
Unavailable
20
. NEEDLE (J8-6DJ8-59)
275-14116-A6-00
Unavailable
20
. NEEDLE (J8-6DJ8-61)
275-14116-A7-00
Unavailable
20
. NEEDLE
275-14116-A9-00
Unavailable
20
. NEEDLE (J8-6DJ8-62)
275-14116-E0-00
Unavailable
20
. NEEDLE (J8-6DJ8-64)
275-14116-E1-00
Unavailable
20
. NEEDLE (J8-6DJ8-65)
275-14116-E2-00
Unavailable
20
. NEEDLE (J8-6DJ8-58)
275-14116-E3-00
Unavailable
21
JET, PIL0T(# 35)
193-14142-35-00
Unavailable
21
. JET, PILOT (#45)
193-14142-45-A1
Unavailable
21
JET, PILOT (# 50)
193-14142-50-00
Unavailable
21
. JET, PILOT #55 (# 55)
193-14142-55-00
Unavailable
22
JET, MAIN #320
137-14143-64-00
Unavailable
22
JET, MAIN #330
137-14143-66-A1
Unavailable
22
JET,MAIN #350
137-14143-70-00
Unavailable
22
JET,MAIN #360
137-14143-72-00
Unavailable
22
JET,MAIN #380
137-14143-76-00
Unavailable
22
JET,MAIN #390
137-14143-78-00
Unavailable
23
NEEDLE VALVE SET
3JD-14107-35-00
Unavailable
24
. VALVE, THROTTLE (CA 30)
3JD-14112-30-00
Unavailable
24
. VALVE, THROTTLE (CA 35)
3JD-14112-35-00
Unavailable
24
. VALVE, THROTTLE (CA 40)
3JD-14112-40-00
Unavailable
24
. VALVE, THROTTLE (CA 45)
3JD-14112-45-00
Unavailable
25
THROTTLE SCREW SET
3JD-14103-00-00
Unavailable
26
AIR SCREW SET
4GL-14104-00-00
Unavailable
27
HOSE
8AX-14987-00-00
Unavailable
28
. STARTER SET
3SP-1410A-00-00
Unavailable
